一、服务暴露

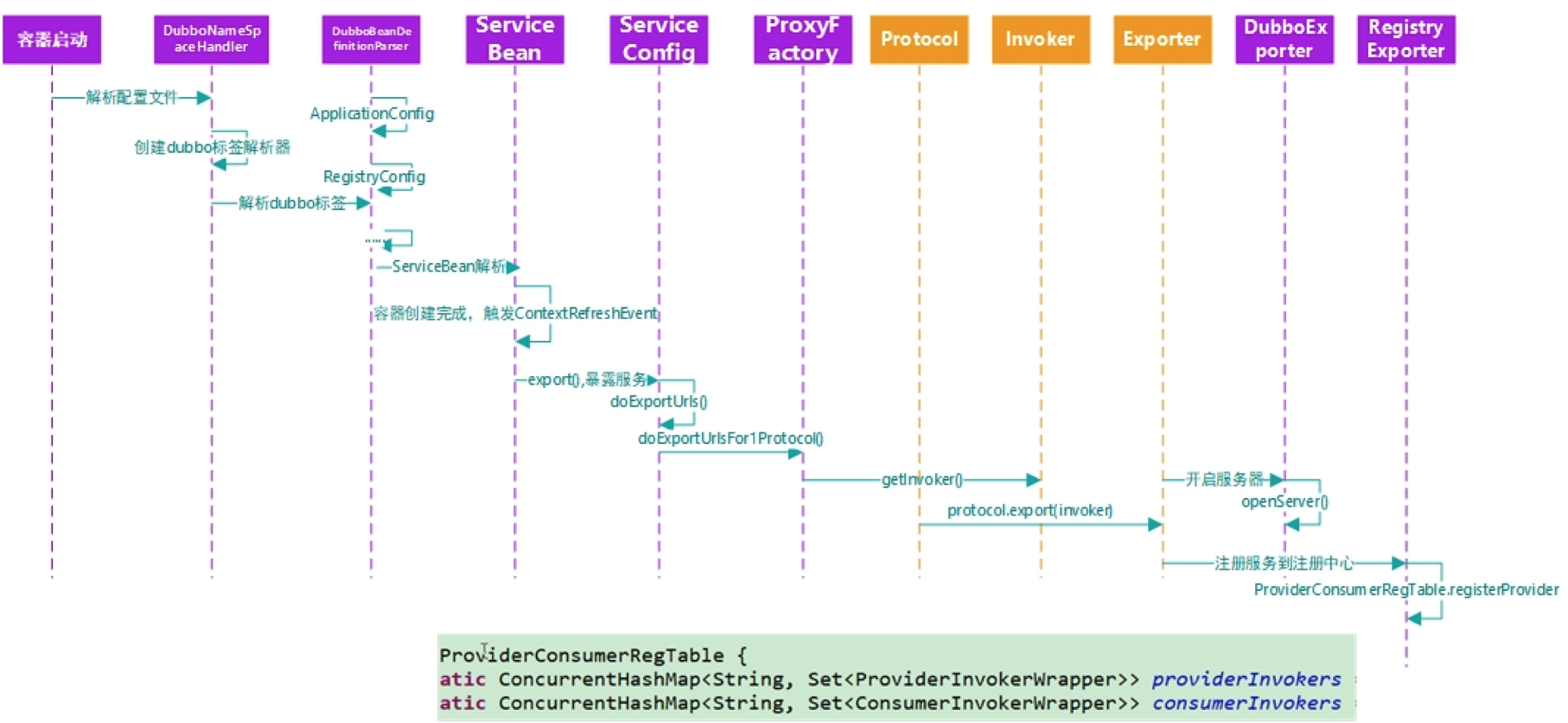

先看一张Dubbo服务暴露的流程图：
在这里插入图片描述
关于服务暴露，首先需要了解：ServiceBean.java

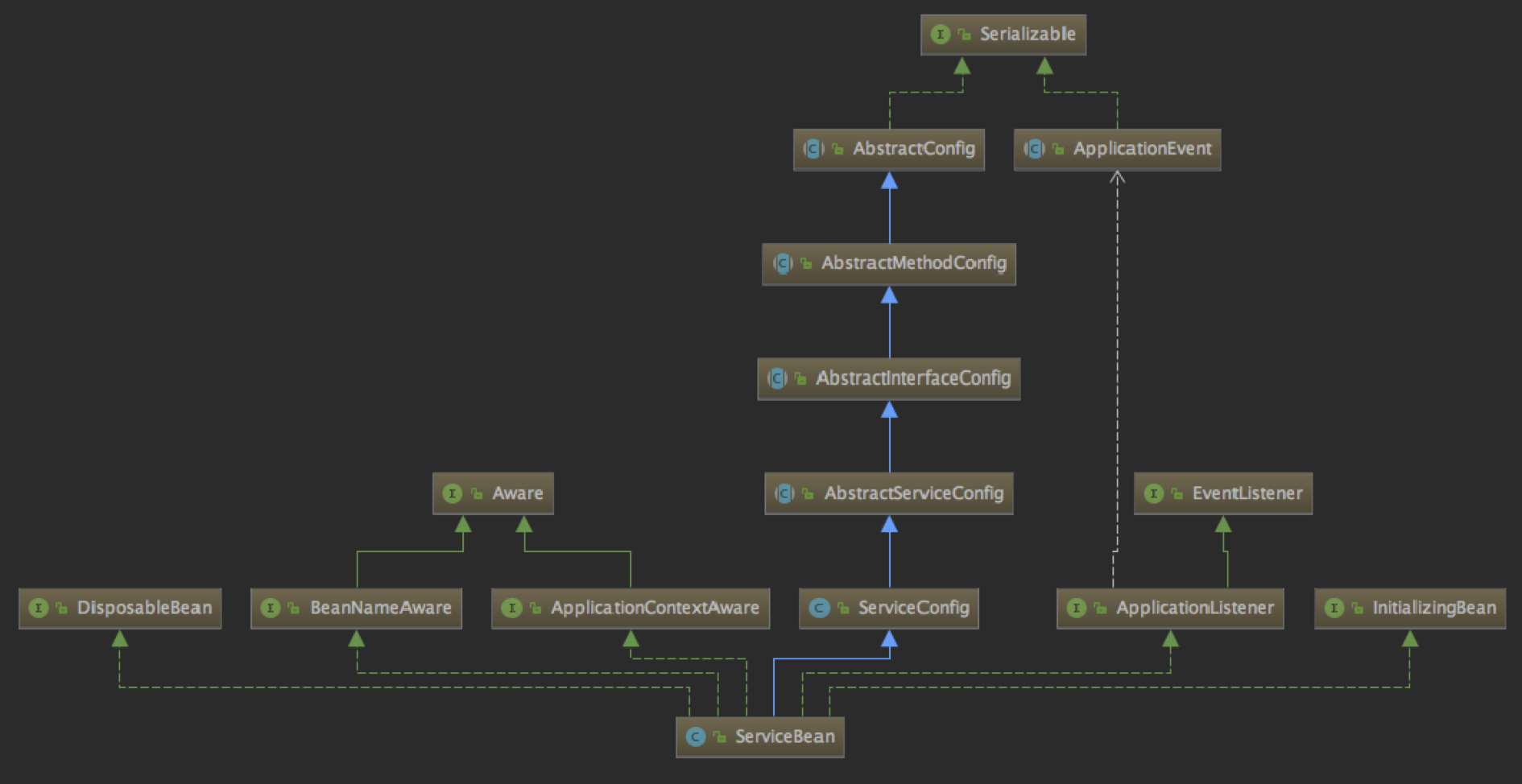

此类实现了几个Spring中比较重要的接口：如InitializingBean、ApplicationContextAware、ApplicationListener等，查看该类结构图：
在这里插入图片描述

接下来分析一下该类的一些主要方法：

在ServiceBean.afterPropertiesSet()方法中，就是将配置文件的各项属性信息都配置到该Bean中。最后通过一个ServiceConfig.export();方法暴露服务。

 @SuppressWarnings({ "unchecked", "deprecation" })public void afterPropertiesSet() throws Exception {if (getProvider() == null) {Map<String, ProviderConfig> providerConfigMap = applicationContext == null ? null  : BeanFactoryUtils.beansOfTypeIncludingAncestors(applicationContext, ProviderConfig.class, false, false);if (providerConfigMap != null && providerConfigMap.size() > 0) {Map<String, ProtocolConfig> protocolConfigMap = applicationContext == null ? null  : BeanFactoryUtils.beansOfTypeIncludingAncestors(applicationContext, ProtocolConfig.class, false, false);if ((protocolConfigMap == null || protocolConfigMap.size() == 0)&& providerConfigMap.size() > 1) { // 兼容旧版本List<ProviderConfig> providerConfigs = new ArrayList<ProviderConfig>();for (ProviderConfig config : providerConfigMap.values()) {if (config.isDefault() != null && config.isDefault().booleanValue()) {providerConfigs.add(config);}}if (providerConfigs.size() > 0) {//setProviders(providerConfigs);}} else {ProviderConfig providerConfig = null;for (ProviderConfig config : providerConfigMap.values()) {if (config.isDefault() == null || config.isDefault().booleanValue()) {if (providerConfig != null) {throw new IllegalStateException("Duplicate provider configs: " + providerConfig + " and " + config);}providerConfig = config;}}if (providerConfig != null) {setProvider(providerConfig);}}}}if (getApplication() == null&& (getProvider() == null || getProvider().getApplication() == null)) {Map<String, ApplicationConfig> applicationConfigMap = applicationContext == null ? null : BeanFactoryUtils.beansOfTypeIncludingAncestors(applicationContext, ApplicationConfig.class, false, false);if (applicationConfigMap != null && applicationConfigMap.size() > 0) {ApplicationConfig applicationConfig = null;for (ApplicationConfig config : applicationConfigMap.values()) {if (config.isDefault() == null || config.isDefault().booleanValue()) {if (applicationConfig != null) {throw new IllegalStateException("Duplicate application configs: " + applicationConfig + " and " + config);}applicationConfig = config;}}if (applicationConfig != null) {setApplication(applicationConfig);}}}if (getModule() == null&& (getProvider() == null || getProvider().getModule() == null)) {Map<String, ModuleConfig> moduleConfigMap = applicationContext == null ? null : BeanFactoryUtils.beansOfTypeIncludingAncestors(applicationContext, ModuleConfig.class, false, false);if (moduleConfigMap != null && moduleConfigMap.size() > 0) {ModuleConfig moduleConfig = null;for (ModuleConfig config : moduleConfigMap.values()) {if (config.isDefault() == null || config.isDefault().booleanValue()) {if (moduleConfig != null) {throw new IllegalStateException("Duplicate module configs: " + moduleConfig + " and " + config);}moduleConfig = config;}}if (moduleConfig != null) {setModule(moduleConfig);}}}if ((getRegistries() == null || getRegistries().size() == 0)&& (getProvider() == null || getProvider().getRegistries() == null || getProvider().getRegistries().size() == 0)&& (getApplication() == null || getApplication().getRegistries() == null || getApplication().getRegistries().size() == 0)) {Map<String, RegistryConfig> registryConfigMap = applicationContext == null ? null : BeanFactoryUtils.beansOfTypeIncludingAncestors(applicationContext, RegistryConfig.class, false, false);if (registryConfigMap != null && registryConfigMap.size() > 0) {List<RegistryConfig> registryConfigs = new ArrayList<RegistryConfig>();for (RegistryConfig config : registryConfigMap.values()) {if (config.isDefault() == null || config.isDefault().booleanValue()) {registryConfigs.add(config);}}if (registryConfigs != null && registryConfigs.size() > 0) {super.setRegistries(registryConfigs);}}}if (getMonitor() == null&& (getProvider() == null || getProvider().getMonitor() == null)&& (getApplication() == null || getApplication().getMonitor() == null)) {Map<String, MonitorConfig> monitorConfigMap = applicationContext == null ? null : BeanFactoryUtils.beansOfTypeIncludingAncestors(applicationContext, MonitorConfig.class, false, false);if (monitorConfigMap != null && monitorConfigMap.size() > 0) {MonitorConfig monitorConfig = null;for (MonitorConfig config : monitorConfigMap.values()) {if (config.isDefault() == null || config.isDefault().booleanValue()) {if (monitorConfig != null) {throw new IllegalStateException("Duplicate monitor configs: " + monitorConfig + " and " + config);}monitorConfig = config;}}if (monitorConfig != null) {setMonitor(monitorConfig);}}}if ((getProtocols() == null || getProtocols().size() == 0)&& (getProvider() == null || getProvider().getProtocols() == null || getProvider().getProtocols().size() == 0)) {Map<String, ProtocolConfig> protocolConfigMap = applicationContext == null ? null  : BeanFactoryUtils.beansOfTypeIncludingAncestors(applicationContext, ProtocolConfig.class, false, false);if (protocolConfigMap != null && protocolConfigMap.size() > 0) {List<ProtocolConfig> protocolConfigs = new ArrayList<ProtocolConfig>();for (ProtocolConfig config : protocolConfigMap.values()) {if (config.isDefault() == null || config.isDefault().booleanValue()) {protocolConfigs.add(config);}}if (protocolConfigs != null && protocolConfigs.size() > 0) {super.setProtocols(protocolConfigs);}}}if (getPath() == null || getPath().length() == 0) {if (beanName != null && beanName.length() > 0 && getInterface() != null && getInterface().length() > 0&& beanName.startsWith(getInterface())) {setPath(beanName);}}if (! isDelay()) {//此方法最为关键，即服务暴露的动作从此时触发export();}}

再来看看一下ServiceConfig.export()这个方法：

public class ServiceConfig<T> extends AbstractServiceConfig {//...public synchronized void export() {if (provider != null) {if (export == null) {export = provider.getExport();}if (delay == null) {delay = provider.getDelay();}}if (export != null && ! export.booleanValue()) {return;}if (delay != null && delay > 0) {Thread thread = new Thread(new Runnable() {public void run() {try {Thread.sleep(delay);} catch (Throwable e) {}//主要核心操作在于doExport()doExport();}});thread.setDaemon(true);thread.setName("DelayExportServiceThread");thread.start();} else {doExport();}}
}

接下来看看ServiceConfig.doExport()方法：

public class ServiceConfig<T> extends AbstractServiceConfig {//...protected synchronized void doExport() {if (unexported) {throw new IllegalStateException("Already unexported!");}if (exported) {return;}exported = true;if (interfaceName == null || interfaceName.length() == 0) {throw new IllegalStateException("<dubbo:service interface=\"\" /> interface not allow null!");}checkDefault();if (provider != null) {if (application == null) {application = provider.getApplication();}if (module == null) {module = provider.getModule();}if (registries == null) {registries = provider.getRegistries();}if (monitor == null) {monitor = provider.getMonitor();}if (protocols == null) {protocols = provider.getProtocols();}}if (module != null) {if (registries == null) {registries = module.getRegistries();}if (monitor == null) {monitor = module.getMonitor();}}if (application != null) {if (registries == null) {registries = application.getRegistries();}if (monitor == null) {monitor = application.getMonitor();}}if (ref instanceof GenericService) {interfaceClass = GenericService.class;generic = true;} else {try {interfaceClass = Class.forName(interfaceName, true, Thread.currentThread().getContextClassLoader());} catch (ClassNotFoundException e) {throw new IllegalStateException(e.getMessage(), e);}checkInterfaceAndMethods(interfaceClass, methods);checkRef();generic = false;}if(local !=null){if(local=="true"){local=interfaceName+"Local";}Class<?> localClass;try {localClass = ClassHelper.forNameWithThreadContextClassLoader(local);} catch (ClassNotFoundException e) {throw new IllegalStateException(e.getMessage(), e);}if(!interfaceClass.isAssignableFrom(localClass)){throw new IllegalStateException("The local implemention class " + localClass.getName() + " not implement interface " + interfaceName);}}if(stub !=null){if(stub=="true"){stub=interfaceName+"Stub";}Class<?> stubClass;try {stubClass = ClassHelper.forNameWithThreadContextClassLoader(stub);} catch (ClassNotFoundException e) {throw new IllegalStateException(e.getMessage(), e);}if(!interfaceClass.isAssignableFrom(stubClass)){throw new IllegalStateException("The stub implemention class " + stubClass.getName() + " not implement interface " + interfaceName);}}checkApplication();checkRegistry();checkProtocol();appendProperties(this);checkStubAndMock(interfaceClass);if (path == null || path.length() == 0) {path = interfaceName;}//暴露url操作doExportUrls();}

再来看看上述代码中暴露url的代码doExportUrls()（比较烦躁，坚持啊）。

 @SuppressWarnings({ "unchecked", "rawtypes" })private void doExportUrls() {List<URL> registryURLs = loadRegistries(true);for (ProtocolConfig protocolConfig : protocols) {//获取注册中心的信息，根据协议暴露对应的urldoExportUrlsFor1Protocol(protocolConfig, registryURLs);}}

ServiceConfig.doExportUrlsFor1Protocol(protocolConfig, registryURLs)源码如下，进行Url暴露的细节：


private void doExportUrlsFor1Protocol(ProtocolConfig protocolConfig, List<URL> registryURLs) {String name = protocolConfig.getName();if (name == null || name.length() == 0) {name = "dubbo";}String host = protocolConfig.getHost();if (provider != null && (host == null || host.length() == 0)) {host = provider.getHost();}boolean anyhost = false;if (NetUtils.isInvalidLocalHost(host)) {anyhost = true;try {host = InetAddress.getLocalHost().getHostAddress();} catch (UnknownHostException e) {logger.warn(e.getMessage(), e);}if (NetUtils.isInvalidLocalHost(host)) {if (registryURLs != null && registryURLs.size() > 0) {for (URL registryURL : registryURLs) {try {Socket socket = new Socket();try {SocketAddress addr = new InetSocketAddress(registryURL.getHost(), registryURL.getPort());socket.connect(addr, 1000);host = socket.getLocalAddress().getHostAddress();break;} finally {try {socket.close();} catch (Throwable e) {}}} catch (Exception e) {logger.warn(e.getMessage(), e);}}}if (NetUtils.isInvalidLocalHost(host)) {host = NetUtils.getLocalHost();}}}Integer port = protocolConfig.getPort();if (provider != null && (port == null || port == 0)) {port = provider.getPort();}final int defaultPort = ExtensionLoader.getExtensionLoader(Protocol.class).getExtension(name).getDefaultPort();if (port == null || port == 0) {port = defaultPort;}if (port == null || port <= 0) {port = getRandomPort(name);if (port == null || port < 0) {port = NetUtils.getAvailablePort(defaultPort);putRandomPort(name, port);}logger.warn("Use random available port(" + port + ") for protocol " + name);}Map<String, String> map = new HashMap<String, String>();if (anyhost) {map.put(Constants.ANYHOST_KEY, "true");}map.put(Constants.SIDE_KEY, Constants.PROVIDER_SIDE);map.put(Constants.DUBBO_VERSION_KEY, Version.getVersion());map.put(Constants.TIMESTAMP_KEY, String.valueOf(System.currentTimeMillis()));if (ConfigUtils.getPid() > 0) {map.put(Constants.PID_KEY, String.valueOf(ConfigUtils.getPid()));}appendParameters(map, application);appendParameters(map, module);appendParameters(map, provider, Constants.DEFAULT_KEY);appendParameters(map, protocolConfig);appendParameters(map, this);if (methods != null && methods.size() > 0) {for (MethodConfig method : methods) {appendParameters(map, method, method.getName());String retryKey = method.getName() + ".retry";if (map.containsKey(retryKey)) {String retryValue = map.remove(retryKey);if ("false".equals(retryValue)) {map.put(method.getName() + ".retries", "0");}}List<ArgumentConfig> arguments = method.getArguments();if (arguments != null && arguments.size() > 0) {for (ArgumentConfig argument : arguments) {//类型自动转换.if(argument.getType() != null && argument.getType().length() >0){Method[] methods = interfaceClass.getMethods();//遍历所有方法if(methods != null && methods.length > 0){for (int i = 0; i < methods.length; i++) {String methodName = methods[i].getName();//匹配方法名称，获取方法签名.if(methodName.equals(method.getName())){Class<?>[] argtypes = methods[i].getParameterTypes();//一个方法中单个callbackif (argument.getIndex() != -1 ){if (argtypes[argument.getIndex()].getName().equals(argument.getType())){appendParameters(map, argument, method.getName() + "." + argument.getIndex());}else {throw new IllegalArgumentException("argument config error : the index attribute and type attirbute not match :index :"+argument.getIndex() + ", type:" + argument.getType());}} else {//一个方法中多个callbackfor (int j = 0 ;j<argtypes.length ;j++) {Class<?> argclazz = argtypes[j];if (argclazz.getName().equals(argument.getType())){appendParameters(map, argument, method.getName() + "." + j);if (argument.getIndex() != -1 && argument.getIndex() != j){throw new IllegalArgumentException("argument config error : the index attribute and type attirbute not match :index :"+argument.getIndex() + ", type:" + argument.getType());}}}}}}}}else if(argument.getIndex() != -1){appendParameters(map, argument, method.getName() + "." + argument.getIndex());}else {throw new IllegalArgumentException("argument config must set index or type attribute.eg: <dubbo:argument index='0' .../> or <dubbo:argument type=xxx .../>");}}}} // end of methods for}if (generic) {map.put("generic", String.valueOf(true));map.put("methods", Constants.ANY_VALUE);} else {String revision = Version.getVersion(interfaceClass, version);if (revision != null && revision.length() > 0) {map.put("revision", revision);}String[] methods = Wrapper.getWrapper(interfaceClass).getMethodNames();if(methods.length == 0) {logger.warn("NO method found in service interface " + interfaceClass.getName());map.put("methods", Constants.ANY_VALUE);}else {map.put("methods", StringUtils.join(new HashSet<String>(Arrays.asList(methods)), ","));}}if (! ConfigUtils.isEmpty(token)) {if (ConfigUtils.isDefault(token)) {map.put("token", UUID.randomUUID().toString());} else {map.put("token", token);}}if ("injvm".equals(protocolConfig.getName())) {protocolConfig.setRegister(false);map.put("notify", "false");}// 导出服务String contextPath = protocolConfig.getContextpath();if ((contextPath == null || contextPath.length() == 0) && provider != null) {contextPath = provider.getContextpath();}URL url = new URL(name, host, port, (contextPath == null || contextPath.length() == 0 ? "" : contextPath + "/") + path, map);if (ExtensionLoader.getExtensionLoader(ConfiguratorFactory.class).hasExtension(url.getProtocol())) {url = ExtensionLoader.getExtensionLoader(ConfiguratorFactory.class).getExtension(url.getProtocol()).getConfigurator(url).configure(url);}String scope = url.getParameter(Constants.SCOPE_KEY);//配置为none不暴露if (! Constants.SCOPE_NONE.toString().equalsIgnoreCase(scope)) {//配置不是remote的情况下做本地暴露 (配置为remote，则表示只暴露远程服务)if (!Constants.SCOPE_REMOTE.toString().equalsIgnoreCase(scope)) {exportLocal(url);}//如果配置不是local则暴露为远程服务.(配置为local，则表示只暴露远程服务)if (! Constants.SCOPE_LOCAL.toString().equalsIgnoreCase(scope) ){if (logger.isInfoEnabled()) {logger.info("Export dubbo service " + interfaceClass.getName() + " to url " + url);}if (registryURLs != null && registryURLs.size() > 0&& url.getParameter("register", true)) {for (URL registryURL : registryURLs) {url = url.addParameterIfAbsent("dynamic", registryURL.getParameter("dynamic"));URL monitorUrl = loadMonitor(registryURL);if (monitorUrl != null) {url = url.addParameterAndEncoded(Constants.MONITOR_KEY, monitorUrl.toFullString());}if (logger.isInfoEnabled()) {logger.info("Register dubbo service " + interfaceClass.getName() + " url " + url + " to registry " + registryURL);}/*** 暴露远程服务：<br>* 1. 协议在接收请求时，应记录请求来源方地址信息：RpcContext.getContext().setRemoteAddress();<br>* 2. export()必须是幂等的，也就是暴露同一个URL的Invoker两次，和暴露一次没有区别。<br>* 3. export()传入的Invoker由框架实现并传入，协议不需要关心。<br>* * @param <T> 服务的类型* @param invoker 服务的执行体* @return exporter 暴露服务的引用，用于取消暴露* @throws RpcException 当暴露服务出错时抛出，比如端口已占用*/Invoker<?> invoker = proxyFactory.getInvoker(ref, (Class) interfaceClass, registryURL.addParameterAndEncoded(Constants.EXPORT_KEY, url.toFullString()));Exporter<?> exporter = protocol.export(invoker);exporters.add(exporter);}} else {Invoker<?> invoker = proxyFactory.getInvoker(ref, (Class) interfaceClass, url);/*** 暴露远程服务：<br>* 1. 协议在接收请求时，应记录请求来源方地址信息：RpcContext.getContext().setRemoteAddress();<br>* 2. export()必须是幂等的，也就是暴露同一个URL的Invoker两次，和暴露一次没有区别。<br>* 3. export()传入的Invoker由框架实现并传入，协议不需要关心。<br>* * @param <T> 服务的类型* @param invoker 服务的执行体* @return exporter 暴露服务的引用，用于取消暴露* @throws RpcException 当暴露服务出错时抛出，比如端口已占用*/Exporter<?> exporter = protocol.export(invoker);exporters.add(exporter);}}}this.urls.add(url);}

然后通过protocol.export(invoker)方法把服务暴露出去（会根据当前的协议做相应的暴露操作），最后将Url和对应的执行器存起来，存放在注册表中，以供消费者调用。
在这里插入图片描述

这就是一个简洁的Dubbo服务暴露的过程了。

二、服务引用

如下为服务引用的流程图，可以参考服务暴露的过程进行源码调试。
其过程简而言之通过一系列的信息，获取到接口对应的代理对象，存放于注册表中。
在这里插入图片描述

三、调用流程

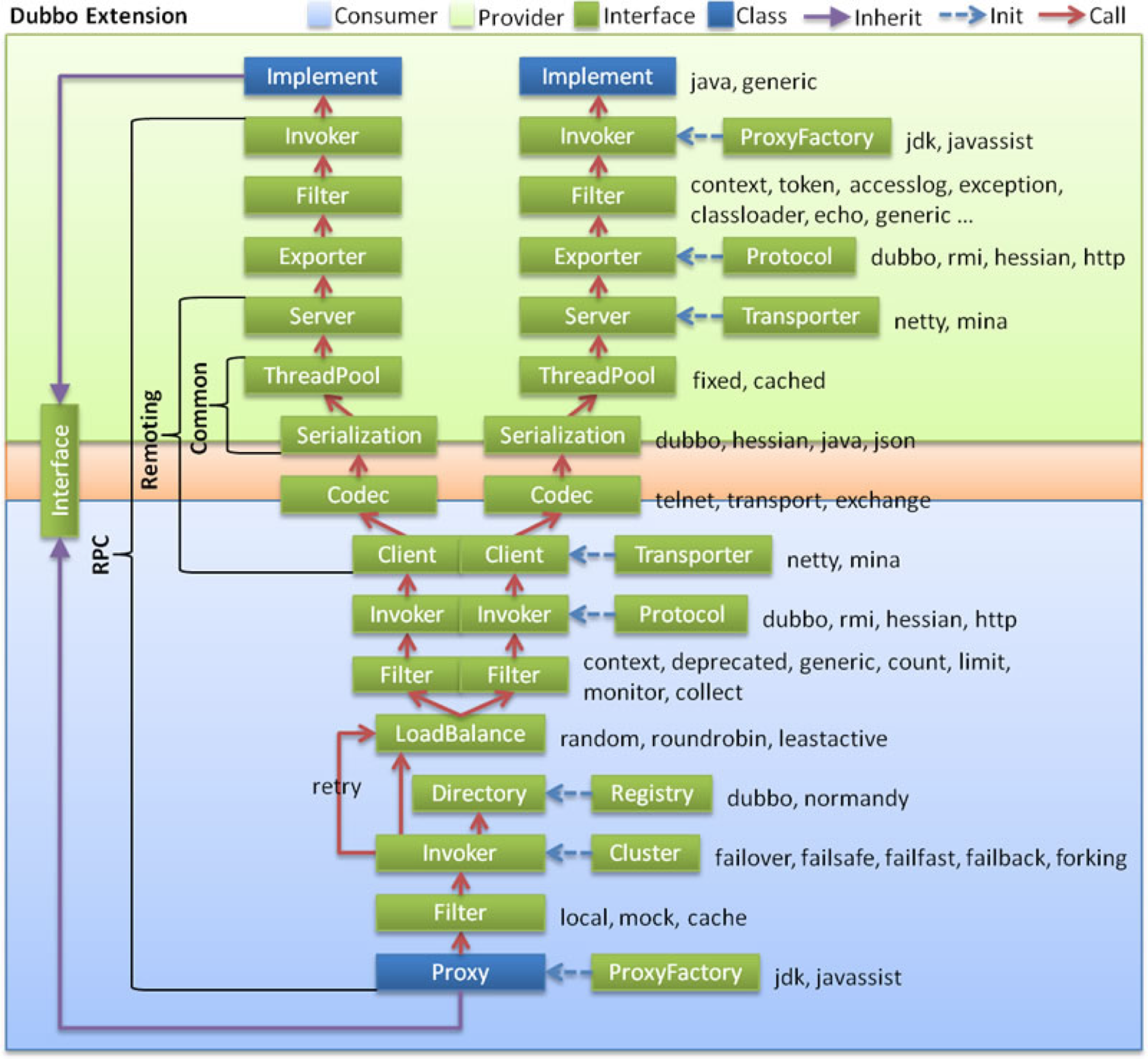

Dubbo的调用流程，可以参考官网的一张服务调用流程图来对源码进行一步步的调试，便于理解（防止文章过长此处就不贴源码了）：
在这里插入图片描述

更多原理了解，可以到官网查看Dubbo源码导读。
