关注上方🔝公众号，记得设置星标，这样有好的文章内容您可以第一时间看到
博主也为大家无偿奉献了海量pdf，喜欢的可以公众号复回：资料合集，即可获得海量学习资料。
十四个需求一次整理出来比较长，我这边做了拆分，每次更新一部分，这样也方便大家慢慢消化，喜欢作者的朋友可以加我微信：weixin605405145，我会拉你们进互联网技术交流群，目前粉丝人数2万+，期待您的加入！！！！
「目录」
需求一：用户活跃主题
需求二：用户新增主题
需求三：用户留存主题
需求四：沉默用户数
需求五：本周回流用户数
需求六：流失用户数
需求七：最近连续3周活跃用户数
需求八：最近七天内连续三天活跃用户数
需求九：GMV（Gross Merchandise Volume）一段时间内的成交总额
需求十：转化率=新增用户/日活用户
需求十一：用户行为漏斗分析
需求十二：品牌复购率
需求十三：ADS层品牌复购率报表分析
需求十四：求每个等级的用户对应的复购率前十的商品排行
需求一：用户活跃主题
DWS层--（用户行为宽表层） 目标：统计当日、当周、当月活动的每个设备明细
1 每日活跃设备明细 dwd_start_log--->dws_uv_detail_day
--把相同的字段collect_set到一个数组, 按mid_id分组(便于后边统计)
collect_set将某字段的值进行去重汇总，产生array类型字段。如: concat_ws('|', collect_set(user_id)) user_id,
建分区表dws_uv_detail_day：partitioned by ('dt' string)
drop table if exists dws_uv_detail_day;
create table dws_uv_detail_day( `mid_id` string COMMENT '设备唯一标识',`user_id` string COMMENT '用户标识', `version_code` string COMMENT '程序版本号', `version_name` string COMMENT '程序版本名',
`lang` string COMMENT '系统语言',
`source` string COMMENT '渠道号',
`os` string COMMENT '安卓系统版本',
`area` string COMMENT '区域',
`model` string COMMENT '手机型号',
`brand` string COMMENT '手机品牌',
`sdk_version` string COMMENT 'sdkVersion',
`gmail` string COMMENT 'gmail',
`height_width` string COMMENT '屏幕宽高',
`app_time` string COMMENT '客户端日志产生时的时间',
`network` string COMMENT '网络模式',
`lng` string COMMENT '经度',
`lat` string COMMENT '纬度'
) COMMENT '活跃用户按天明细'
PARTITIONED BY ( `dt` string)
stored as parquet
location '/warehouse/gmall/dws/dws_uv_detail_day/'
;数据导入
按周分区；过滤出一周内的数据；按设备id分组；===>count（*）得到最终结果；
partition(dt='2019-02-10') from dwd_start_log where dt='2019-02-10' group by mid_id ( mid_id设备唯一标示 )
以用户单日访问为key进行聚合，如果某个用户在一天中使用了两种操作系统、两个系统版本、多个地区，登录不同账号，只取其中之一
hive (gmall)>
set hive.exec.dynamic.partition.mode=nonstrict;insert overwrite table dws_uv_detail_day partition(dt='2019-02-10')
select mid_id,concat_ws('|', collect_set(user_id)) user_id,concat_ws('|', collect_set(version_code)) version_code,concat_ws('|', collect_set(version_name)) version_name,concat_ws('|', collect_set(lang))lang,concat_ws('|', collect_set(source)) source,concat_ws('|', collect_set(os)) os,concat_ws('|', collect_set(area)) area, concat_ws('|', collect_set(model)) model,concat_ws('|', collect_set(brand)) brand,concat_ws('|', collect_set(sdk_version)) sdk_version,concat_ws('|', collect_set(gmail)) gmail,concat_ws('|', collect_set(height_width)) height_width,concat_ws('|', collect_set(app_time)) app_time,concat_ws('|', collect_set(network)) network,concat_ws('|', collect_set(lng)) lng,concat_ws('|', collect_set(lat)) lat
from dwd_start_log
where dt='2019-02-10'
group by mid_id;查询导入结果；
hive (gmall)> select * from dws_uv_detail_day limit 1;###最后count(*)即是每日活跃设备的个数；
hive (gmall)> select count(*) from dws_uv_detail_day;2 每周（dws_uv_detail_wk）活跃设备明细 partition(wk_dt)
周一到周日concat(date_add(next_day('2019-02-10', 'MO'), -7), '_', date_add(next_day('2019-02-10', 'MO'), -1))即 2019-02-04_2019-02-10
创建分区表：partitioned by('wk_dt' string)
hive (gmall)>
drop table if exists dws_uv_detail_wk;create table dws_uv_detail_wk( `mid_id` string COMMENT '设备唯一标识',`user_id` string COMMENT '用户标识', `version_code` string COMMENT '程序版本号', `version_name` string COMMENT '程序版本名',
`lang` string COMMENT '系统语言',
`source` string COMMENT '渠道号',
`os` string COMMENT '安卓系统版本',
`area` string COMMENT '区域',
`model` string COMMENT '手机型号',
`brand` string COMMENT '手机品牌',
`sdk_version` string COMMENT 'sdkVersion',
`gmail` string COMMENT 'gmail',
`height_width` string COMMENT '屏幕宽高',
`app_time` string COMMENT '客户端日志产生时的时间',
`network` string COMMENT '网络模式',
`lng` string COMMENT '经度',
`lat` string COMMENT '纬度',`monday_date` string COMMENT '周一日期',`sunday_date` string COMMENT '周日日期'
) COMMENT '活跃用户按周明细'
PARTITIONED BY (`wk_dt` string)
stored as parquet
location '/warehouse/gmall/dws/dws_uv_detail_wk/'

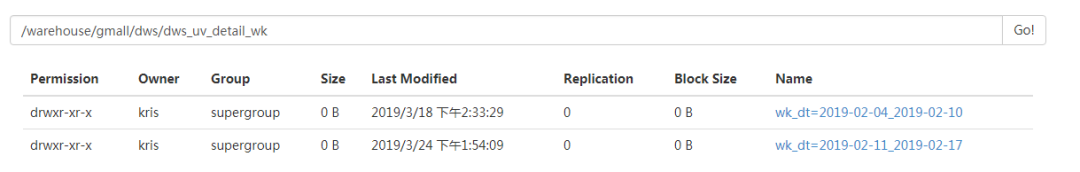

;导入数据：以周为分区；过滤出一个月内的数据，按设备id分组；
周一：date_add(next_day('2019-05-16','MO'),-7);
周日：date_add(next_day('2019-05-16','MO'),-1);
周一---周日：concat(date_add(next_day('2019-05-16', 'MO'), -7), "_", date_add(next_day('2019-05-16', 'MO'), -1));
insert overwrite table dws_uv_detail_wk partition(wk_dt)
select mid_id,
concat_ws('|', collect_set(user_id)) user_id,
concat_ws('|', collect_set(version_code)) version_code,
concat_ws('|', collect_set(version_name)) version_name,
concat_ws('|', collect_set(lang)) lang,
concat_ws('|', collect_set(source)) source,
concat_ws('|', collect_set(os)) os,
concat_ws('|', collect_set(area)) area,
concat_ws('|', collect_set(model)) model,
concat_ws('|', collect_set(brand)) brand,
concat_ws('|', collect_set(sdk_version)) sdk_version,
concat_ws('|', collect_set(gmail)) gmail,
concat_ws('|', collect_set(height_width)) height_width,
concat_ws('|', collect_set(app_time)) app_time,
concat_ws('|', collect_set(network)) network,
concat_ws('|', collect_set(lng)) lng,
concat_ws('|', collect_set(lat)) lat,
date_add(next_day('2019-02-10', 'MO'), -7),
date_add(next_day('2019-02-10', 'MO'), -1),
concat(date_add(next_day('2019-02-10', 'MO'), -7), '_', date_add(next_day('2019-02-10', 'MO'), -1))
from dws_uv_detail_day
where dt >= date_add(next_day('2019-02-10', 'MO'), -7) and dt <= date_add(next_day('2019-02-10', 'MO'), -1)
group by mid_id;
查询导入结果
hive (gmall)> select * from dws_uv_detail_wk limit 1;
hive (gmall)> select count(*) from dws_uv_detail_wk;3 每月活跃设备明细 dws_uv_detail_mn partition(mn) - 把每日的数据插入进去
DWS层创建分区表 partitioned by(mn string)
hive (gmall)>
drop table if exists dws_uv_detail_mn;create external table dws_uv_detail_mn( `mid_id` string COMMENT '设备唯一标识',`user_id` string COMMENT '用户标识', `version_code` string COMMENT '程序版本号', `version_name` string COMMENT '程序版本名',
`lang` string COMMENT '系统语言',
`source` string COMMENT '渠道号',
`os` string COMMENT '安卓系统版本',
`area` string COMMENT '区域',
`model` string COMMENT '手机型号',
`brand` string COMMENT '手机品牌',
`sdk_version` string COMMENT 'sdkVersion',
`gmail` string COMMENT 'gmail',
`height_width` string COMMENT '屏幕宽高',
`app_time` string COMMENT '客户端日志产生时的时间',
`network` string COMMENT '网络模式',
`lng` string COMMENT '经度',
`lat` string COMMENT '纬度'
) COMMENT '活跃用户按月明细'
PARTITIONED BY (`mn` string)
stored as parquet
location '/warehouse/gmall/dws/dws_uv_detail_mn/'
;数据导入 按月分区；过滤出一个月内的数据，按照设备id分组；
data_format('2019-03-10', 'yyyy-MM') ---> 2019-03
where date_format('dt', 'yyyy-MM') = date_format('2019-02-10', 'yyyy-MM') group by mid_id;
hive (gmall)>
set hive.exec.dynamic.partition.mode=nonstrict;insert overwrite table dws_uv_detail_mn partition(mn)
select mid_id,concat_ws('|', collect_set(user_id)) user_id,concat_ws('|', collect_set(version_code)) version_code,concat_ws('|', collect_set(version_name)) version_name,concat_ws('|', collect_set(lang)) lang,concat_ws('|', collect_set(source)) source,concat_ws('|', collect_set(os)) os,concat_ws('|', collect_set(area)) area, concat_ws('|', collect_set(model)) model,concat_ws('|', collect_set(brand)) brand,concat_ws('|', collect_set(sdk_version)) sdk_version,concat_ws('|', collect_set(gmail)) gmail,concat_ws('|', collect_set(height_width)) height_width,concat_ws('|', collect_set(app_time)) app_time,concat_ws('|', collect_set(network)) network,concat_ws('|', collect_set(lng)) lng,concat_ws('|', collect_set(lat)) lat,date_format('2019-02-10','yyyy-MM')
from dws_uv_detail_day
where date_format(dt,'yyyy-MM') = date_format('2019-02-10','yyyy-MM')
group by mid_id;查询导入结果
hive (gmall)> select * from dws_uv_detail_mn limit 1;
hive (gmall)> select count(*) from dws_uv_detail_mn ;DWS层加载数据脚本
在hadoop101的/home/kris/bin目录下创建脚本
[kris@hadoop101 bin]$ vim dws.sh
#!/bin/bash# 定义变量方便修改
APP=gmall
hive=/opt/module/hive/bin/hive# 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天
if [ -n "$1" ] ;thendo_date=$1
else do_date=`date -d "-1 day" +%F`
fi sql="set hive.exec.dynamic.partition.mode=nonstrict;insert overwrite table "$APP".dws_uv_detail_day partition(dt='$do_date')select mid_id,concat_ws('|', collect_set(user_id)) user_id,concat_ws('|', collect_set(version_code)) version_code,concat_ws('|', collect_set(version_name)) version_name,concat_ws('|', collect_set(lang)) lang,concat_ws('|', collect_set(source)) source,concat_ws('|', collect_set(os)) os,concat_ws('|', collect_set(area)) area, concat_ws('|', collect_set(model)) model,concat_ws('|', collect_set(brand)) brand,concat_ws('|', collect_set(sdk_version)) sdk_version,concat_ws('|', collect_set(gmail)) gmail,concat_ws('|', collect_set(height_width)) height_width,concat_ws('|', collect_set(app_time)) app_time,concat_ws('|', collect_set(network)) network,concat_ws('|', collect_set(lng)) lng,concat_ws('|', collect_set(lat)) latfrom "$APP".dwd_start_logwhere dt='$do_date' group by mid_id;insert overwrite table "$APP".dws_uv_detail_wk partition(wk_dt)select mid_id,concat_ws('|', collect_set(user_id)) user_id,concat_ws('|', collect_set(version_code)) version_code,concat_ws('|', collect_set(version_name)) version_name,concat_ws('|', collect_set(lang)) lang,concat_ws('|', collect_set(source)) source,concat_ws('|', collect_set(os)) os,concat_ws('|', collect_set(area)) area, concat_ws('|', collect_set(model)) model,concat_ws('|', collect_set(brand)) brand,concat_ws('|', collect_set(sdk_version)) sdk_version,concat_ws('|', collect_set(gmail)) gmail,concat_ws('|', collect_set(height_width)) height_width,concat_ws('|', collect_set(app_time)) app_time,concat_ws('|', collect_set(network)) network,concat_ws('|', collect_set(lng)) lng,concat_ws('|', collect_set(lat)) lat,date_add(next_day('$do_date','MO'),-7),date_add(next_day('$do_date','SU'),-7),concat(date_add( next_day('$do_date','MO'),-7), '_' , date_add(next_day('$do_date','MO'),-1) )from "$APP".dws_uv_detail_day where dt>=date_add(next_day('$do_date','MO'),-7) and dt<=date_add(next_day('$do_date','MO'),-1) group by mid_id; insert overwrite table "$APP".dws_uv_detail_mn partition(mn)select mid_id,concat_ws('|', collect_set(user_id)) user_id,concat_ws('|', collect_set(version_code)) version_code,concat_ws('|', collect_set(version_name)) version_name,concat_ws('|', collect_set(lang))lang,concat_ws('|', collect_set(source)) source,concat_ws('|', collect_set(os)) os,concat_ws('|', collect_set(area)) area, concat_ws('|', collect_set(model)) model,concat_ws('|', collect_set(brand)) brand,concat_ws('|', collect_set(sdk_version)) sdk_version,concat_ws('|', collect_set(gmail)) gmail,concat_ws('|', collect_set(height_width)) height_width,concat_ws('|', collect_set(app_time)) app_time,concat_ws('|', collect_set(network)) network,concat_ws('|', collect_set(lng)) lng,concat_ws('|', collect_set(lat)) lat,date_format('$do_date','yyyy-MM')from "$APP".dws_uv_detail_daywhere date_format(dt,'yyyy-MM') = date_format('$do_date','yyyy-MM') group by mid_id;
"$hive -e "$sql"增加脚本执行权限 chmod 777 dws.sh
脚本使用[kris@hadoop101 module]$ dws.sh 2019-02-11
查询结果
hive (gmall)> select count(*) from dws_uv_detail_day;
hive (gmall)> select count(*) from dws_uv_detail_wk;
hive (gmall)> select count(*) from dws_uv_detail_mn ;脚本执行时间；企业开发中一般在每日凌晨30分~1点
ADS层 目标：当日、当周、当月活跃设备数 使用 day_count表 join wk_count join mn_count , 把3张表连接一起
建表ads_uv_count表：
字段有day_count、wk_count、mn_count is_weekend if(date_add(next_day('2019-02-10', 'MO'), -1) = '2019-02-10', 'Y', 'N') is_monthend if(last_day('2019-02-10') = '2019-02-10', 'Y', 'N')
drop table if exists ads_uv_count;
create external table ads_uv_count(
`dt` string comment '统计日期',
`day_count` bigint comment '当日用户量',
`wk_count` bigint comment '当周用户量',
`mn_count` bigint comment '当月用户量',
`is_weekend` string comment 'Y,N是否是周末,用于得到本周最终结果',
`is_monthend` string comment 'Y,N是否是月末,用于得到本月最终结果'
) comment '每日活跃用户数量'
stored as parquet
location '/warehouse/gmall/ads/ads_uv_count/';导入数据：
hive (gmall)>
insert overwrite table ads_uv_count
select '2019-02-10' dt,daycount.ct,wkcount.ct,mncount.ct,if(date_add(next_day('2019-02-10','MO'),-1)='2019-02-10','Y','N') ,if(last_day('2019-02-10')='2019-02-10','Y','N')
from
(select '2019-02-10' dt,count(*) ctfrom dws_uv_detail_daywhere dt='2019-02-10'
)daycount join
( select '2019-02-10' dt,count (*) ctfrom dws_uv_detail_wkwhere wk_dt=concat(date_add(next_day('2019-02-10','MO'),-7),'_' ,date_add(next_day('2019-02-10','MO'),-1) )
) wkcount on daycount.dt=wkcount.dt
join
( select '2019-02-10' dt,count (*) ctfrom dws_uv_detail_mnwhere mn=date_format('2019-02-10','yyyy-MM')
)mncount on daycount.dt=mncount.dt
;查询导入结果
hive (gmall)> select * from ads_uv_count ;
ADS层加载数据脚本
1）在hadoop101的/home/kris/bin目录下创建脚本
[kris@hadoop101 bin]$ vim ads.sh
#!/bin/bash# 定义变量方便修改
APP=gmall
hive=/opt/module/hive/bin/hive# 如果是输入的日期按照取输入日期；如果没输入日期取当前时间的前一天
if [ -n "$1" ] ;thendo_date=$1
else do_date=`date -d "-1 day" +%F`
fi sql="set hive.exec.dynamic.partition.mode=nonstrict;insert into table "$APP".ads_uv_count
select '$do_date' dt,daycount.ct,wkcount.ct,mncount.ct,if(date_add(next_day('$do_date','MO'),-1)='$do_date','Y','N') ,if(last_day('$do_date')='$do_date','Y','N')
from
(select '$do_date' dt,count(*) ctfrom "$APP".dws_uv_detail_daywhere dt='$do_date'
)daycount join
( select '$do_date' dt,count (*) ctfrom "$APP".dws_uv_detail_wkwhere wk_dt=concat(date_add(next_day('$do_date','MO'),-7),'_' ,date_add(next_day('$do_date','MO'),-1) )
) wkcount on daycount.dt=wkcount.dt
join
( select '$do_date' dt,count (*) ctfrom "$APP".dws_uv_detail_mnwhere mn=date_format('$do_date','yyyy-MM')
)mncount on daycount.dt=mncount.dt;
"$hive -e "$sql"增加脚本执行权限 chmod 777 ads.sh
脚本使用 ads.sh 2019-02-11
查询导入结果 hive (gmall)> select * from ads_uv_count ;
需求二：用户新增主题
首次联网使用应用的用户。如果一个用户首次打开某APP，那这个用户定义为新增用户；卸载再安装的设备，不会被算作一次新增。新增用户包括日新增用户、周新增用户、月新增用户。
每日新增(老用户不算,之前没登陆过，今天是第一次登陆)设备--没有分区 -->以往的新增库里边没有他，但他今天活跃了即新增加的用户；
1 DWS层（每日新增设备明细表） 创建每日新增设备明细表：dws_new_mid_day
hive (gmall)>
drop table if exists dws_new_mid_day;
create table dws_new_mid_day
(`mid_id` string COMMENT '设备唯一标识',`user_id` string COMMENT '用户标识', `version_code` string COMMENT '程序版本号', `version_name` string COMMENT '程序版本名',
`lang` string COMMENT '系统语言',
`source` string COMMENT '渠道号',
`os` string COMMENT '安卓系统版本',
`area` string COMMENT '区域',
`model` string COMMENT '手机型号',
`brand` string COMMENT '手机品牌',
`sdk_version` string COMMENT 'sdkVersion',
`gmail` string COMMENT 'gmail',
`height_width` string COMMENT '屏幕宽高',
`app_time` string COMMENT '客户端日志产生时的时间',
`network` string COMMENT '网络模式',
`lng` string COMMENT '经度',
`lat` string COMMENT '纬度',`create_date` string comment '创建时间'
) COMMENT '每日新增设备信息'
stored as parquet
location '/warehouse/gmall/dws/dws_new_mid_day/';

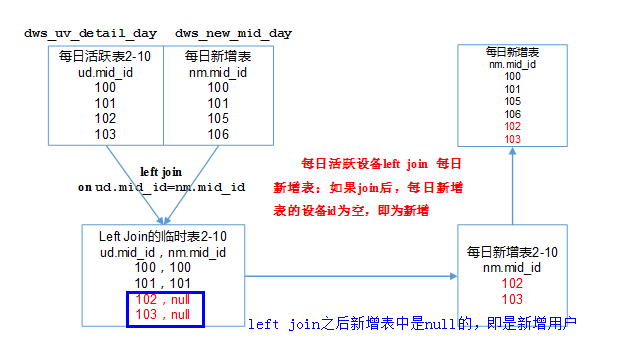

dws_uv_detail_day(每日活跃设备明细) left join dws_new_mid_day nm(以往的新增用户表, 新建字段create_time2019-02-10) nm.mid_id is null;
导入数据
用每日活跃用户表 left join 每日新增设备表，关联的条件是mid_id相等。如果是每日新增的设备，则在每日新增设备表中为null。
from dws_uv_detail_day ud left join dws_new_mid_day nm on ud.mid_id=nm.mid_id
where ud.dt='2019-02-10' and nm.mid_id is null;
hive (gmall)>
insert into table dws_new_mid_day
select ud.mid_id,ud.user_id , ud.version_code , ud.version_name , ud.lang , ud.source, ud.os, ud.area, ud.model, ud.brand, ud.sdk_version, ud.gmail, ud.height_width,ud.app_time,ud.network,ud.lng,ud.lat,'2019-02-10'
from dws_uv_detail_day ud left join dws_new_mid_day nm on ud.mid_id=nm.mid_id
where ud.dt='2019-02-10' and nm.mid_id is null;查询导入数据
hive (gmall)> select count(*) from dws_new_mid_day ;
2 ADS层（每日新增设备表） 创建每日新增设备表ads_new_mid_count
hive (gmall)>
drop table if exists `ads_new_mid_count`;
create table `ads_new_mid_count`
(`create_date` string comment '创建时间' ,`new_mid_count` BIGINT comment '新增设备数量'
) COMMENT '每日新增设备信息数量'
row format delimited fields terminated by '\t'
location '/warehouse/gmall/ads/ads_new_mid_count/';导入数据 count（*） dws_new_mid_day表即可
加了create_date就必须group by create_time，否则报错：not in GROUP BY key 'create_date'
hive (gmall)>
insert into table ads_new_mid_count
select create_date , count(*) from dws_new_mid_day
where create_date='2019-02-10'
group by create_date ;查询导入数据
hive (gmall)> select * from ads_new_mid_count;
扩展每月新增：
--每月新增
drop table if exists dws_new_mid_mn;
create table dws_new_mid_mn(`mid_id` string COMMENT '设备唯一标识',`user_id` string COMMENT '用户标识', `version_code` string COMMENT '程序版本号', `version_name` string COMMENT '程序版本名', `lang` string COMMENT '系统语言', `source` string COMMENT '渠道号', `os` string COMMENT '安卓系统版本', `area` string COMMENT '区域', `model` string COMMENT '手机型号', `brand` string COMMENT '手机品牌', `sdk_version` string COMMENT 'sdkVersion', `gmail` string COMMENT 'gmail', `height_width` string COMMENT '屏幕宽高',`app_time` string COMMENT '客户端日志产生时的时间',`network` string COMMENT '网络模式',`lng` string COMMENT '经度',`lat` string COMMENT '纬度'
)comment "每月新增明细"
partitioned by(mn string)
stored as parquet
location "/warehouse/gmall/dws/dws_new_mid_mn";insert overwrite table dws_new_mid_mn partition(mn)
selectum.mid_id,um.user_id , um.version_code , um.version_name , um.lang , um.source, um.os, um.area, um.model, um.brand, um.sdk_version, um.gmail, um.height_width,um.app_time,um.network,um.lng,um.lat,date_format('2019-02-10', 'yyyy-MM')
from dws_uv_detail_mn um left join dws_new_mid_mn nm on um.mid_id = nm.mid_id
where um.mn =date_format('2019-02-10', 'yyyy-MM') and nm.mid_id = null; ----为什么加上它就是空的？？查不到数据了呢
--##注意这里不能写出date_format(um.mn, 'yyyy-MM') =date_format('2019-02-10', 'yyyy-MM') |先更新到需求2，后续需求我会继续更新。。。。。。敬请期待！！！！！
