参考：

https://learnopenglcn.github.io/05%20Advanced%20Lighting/07%20Bloom/

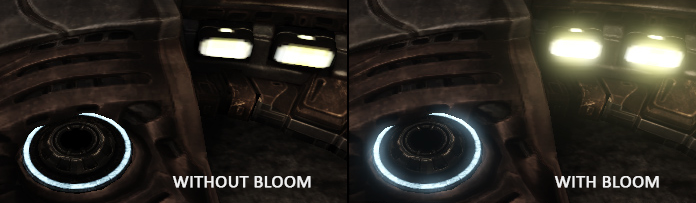

光晕效果可以使用一个后处理特效泛光来实现。泛光使所有明亮区域产生光晕效果。下面是一个使用了和没有使用光晕的对比（图片生成自虚幻引擎）：
在这里插入图片描述
Bloom是我们能够注意到一个明亮的物体真的有种明亮的感觉。泛光可以极大提升场景中的光照效果，并提供了极大的效果提升，尽管做到这一切只需一点改变。

Bloom和HDR结合使用效果很好。常见的一个误解是HDR和泛光是一样的，很多人认为两种技术是可以互换的。但是它们是两种不同的技术，用于各自不同的目的上。可以使用默认的8位精确度的帧缓冲，也可以在不使用泛光效果的时候，使用HDR。只不过在有了HDR之后再实现泛光就更简单了。

为实现泛光，我们像平时那样渲染一个有光场景，提取出场景的HDR颜色缓冲以及只有这个场景明亮区域可见的图片。被提取的带有亮度的图片接着被模糊，结果被添加到HDR场景上面。

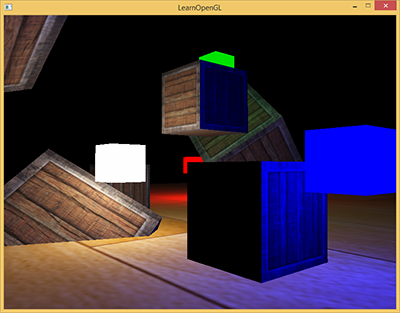

我们在场景中渲染一个带有4个立方体形式不同颜色的明亮的光源。带有颜色的发光立方体的亮度在1.5到15.0之间。如果我们将其渲染至HDR颜色缓冲，场景看起来会是这样的：
在这里插入图片描述

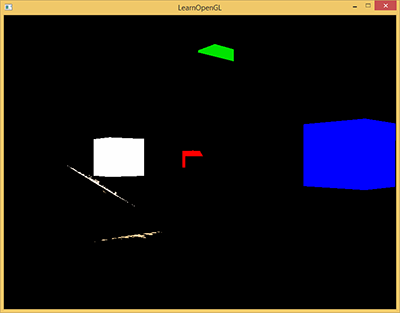

我们得到这个HDR颜色缓冲纹理，提取所有超出一定亮度的fragment。这样我们就会获得一个只有fragment超过了一定阈限的颜色区域：
在这里插入图片描述

我们将这个超过一定亮度阈限的纹理进行模糊。泛光效果的强度很大程度上被模糊过滤器的范围和强度所决定
在这里插入图片描述

最终的被模糊化的纹理就是我们用来获得发出光晕效果的东西。这个已模糊的纹理要添加到原来的HDR场景纹理的上部。因为模糊过滤器的应用明亮区域发出光晕，所以明亮区域在长和宽上都有所扩展
在这里插入图片描述

泛光本身并不是个复杂的技术，但很难获得正确的效果。它的品质很大程度上取决于所用的模糊过滤器的质量和类型。简单的改改模糊过滤器就会极大的改变泛光效果的品质。

提取亮色

第一步我们要从渲染出来的场景中提取两张图片。我们可以渲染场景两次，每次使用一个不同的着色器渲染到不同的帧缓冲中，但我们可以使用一个叫做MRT（Multiple Render Targets多渲染目标）的小技巧，这样我们就能定义多个像素着色器了；有了它我们还能够在一个单独渲染处理中提取头两个图片。在像素着色器的输出前，我们指定一个布局location标识符，这样我们便可控制一个像素着色器写入到哪个颜色缓冲：

layout (location = 0) out vec4 FragColor;
layout (location = 1) out vec4 BrightColor;

使用多个像素着色器输出的必要条件是，有多个颜色缓冲附加到了当前绑定的帧缓冲对象上
通过使用GL_COLOR_ATTACHMENT1，我们可以得到一个附加了两个颜色缓冲的帧缓冲对象：

GLuint hdrFBO;
glGenFramebuffers(1, &hdrFBO);
glBindFramebuffer(GL_FRAMEBUFFER, hdrFBO);
GLuint colorBuffers[2];
glGenTextures(2, colorBuffers);
for (GLuint i = 0; i < 2; i++)
{glBindTexture(GL_TEXTURE_2D, colorBuffers[i]);glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB16F, SCR_WIDTH, SCR_HEIGHT, 0, GL_RGB, GL_FLOAT, NULL);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);// attach texture to framebufferglFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0 + i, GL_TEXTURE_2D, colorBuffers[i], 0);
}

我们需要显式告知OpenGL我们正在通过glDrawBuffers渲染到多个颜色缓冲，否则OpenGL只会渲染到帧缓冲的第一个颜色附件，而忽略所有其他的。我们可以通过传递多个颜色附件的枚举来做这件事，我们以下面的操作进行渲染：

GLuint attachments[2] = { GL_COLOR_ATTACHMENT0, GL_COLOR_ATTACHMENT1 };
glDrawBuffers(2, attachments);

当渲染到这个帧缓冲中的时候，一个着色器使用一个布局location修饰符，那么fragment就会用相应的颜色缓冲就会被用来渲染

#version 330 core
layout (location = 0) out vec4 FragColor;
layout (location = 1) out vec4 BrightColor;[...]void main()
{            [...] // first do normal lighting calculations and output resultsFragColor = vec4(lighting, 1.0f);// Check whether fragment output is higher than threshold, if so output as brightness colorfloat brightness = dot(FragColor.rgb, vec3(0.2126, 0.7152, 0.0722));if(brightness > 1.0)BrightColor = vec4(FragColor.rgb, 1.0);
}

这里我们先正常计算光照，将其传递给第一个像素着色器的输出变量FragColor。然后我们使用当前储存在FragColor的东西来决定它的亮度是否超过了一定阈限。我们通过恰当地将其转为灰度的方式计算一个fragment的亮度，如果它超过了一定阈限，我们就把颜色输出到第二个颜色缓冲，那里保存着所有亮部；渲染发光的立方体也是一样的。

这也说明了为什么泛光在HDR基础上能够运行得很好。因为HDR中，我们可以将颜色值指定超过1.0这个默认的范围，我们能够得到对一个图像中的亮度的更好的控制权。没有HDR我们必须将阈限设置为小于1.0的数，虽然可行，但是亮部很容易变得很多，这就导致光晕效果过重。

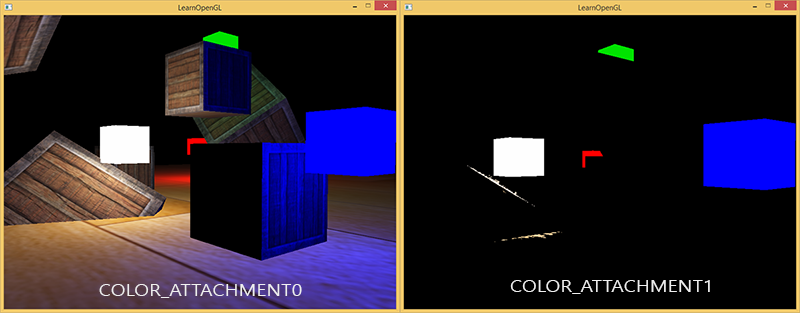

有了两个颜色缓冲，我们就有了一个正常场景的图像和一个提取出的亮区的图像；这些都在一个渲染步骤中完成
在这里插入图片描述
有了一个提取出的亮区图像，我们现在就要把这个图像进行模糊处理

高斯模糊

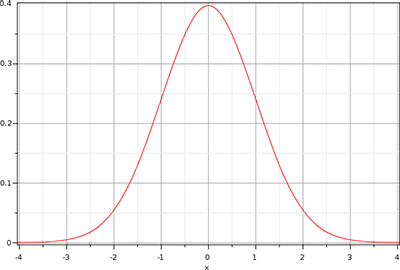

高斯模糊基于高斯曲线，高斯曲线通常被描述为一个钟形曲线，中间的值达到最大化，随着距离的增加，两边的值不断减少。高斯曲线在数学上有不同的形式，但是通常是这样的形状：
在这里插入图片描述

要实现高斯模糊过滤我们需要一个二维四方形作为权重，从这个二维高斯曲线方程中去获取它。然而这个过程有个问题，就是很快会消耗极大的性能。以一个32×32的模糊kernel为例，我们必须对每个fragment从一个纹理中采样1024次

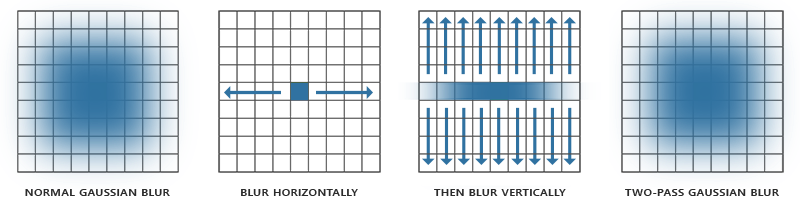

幸运的是，高斯方程有个非常巧妙的特性**，它允许我们把二维方程分解为两个更小的方程：一个描述水平权重，另一个描述垂直权重**。我们首先用水平权重在整个纹理上进行水平模糊，然后在经改变的纹理上进行垂直模糊。利用这个特性，结果是一样的，但是可以节省难以置信的性能，因为我们现在只需做32+32次采样，不再是1024了！这叫做两步高斯模糊
在这里插入图片描述
这意味着我们如果对一个图像进行模糊处理，至少需要两步，最好使用帧缓冲对象做这件事

在我们研究帧缓冲之前，先讨论高斯模糊的像素着色器：

#version 330 core
out vec4 FragColor;
in vec2 TexCoords;uniform sampler2D image;uniform bool horizontal;uniform float weight[5] = float[] (0.227027, 0.1945946, 0.1216216, 0.054054, 0.016216);void main()
{             vec2 tex_offset = 1.0 / textureSize(image, 0); // gets size of single texelvec3 result = texture(image, TexCoords).rgb * weight[0]; // current fragment's contributionif(horizontal){for(int i = 1; i < 5; ++i){result += texture(image, TexCoords + vec2(tex_offset.x * i, 0.0)).rgb * weight[i];result += texture(image, TexCoords - vec2(tex_offset.x * i, 0.0)).rgb * weight[i];}}else{for(int i = 1; i < 5; ++i){result += texture(image, TexCoords + vec2(0.0, tex_offset.y * i)).rgb * weight[i];result += texture(image, TexCoords - vec2(0.0, tex_offset.y * i)).rgb * weight[i];}}FragColor = vec4(result, 1.0);
}

这里我们使用一个比较小的高斯权重做例子，每次我们用它来指定当前fragment的水平或垂直样本的特定权重
通过用1.0除以纹理的大小（从textureSize得到一个vec2）得到一个纹理像素的实际大小，以此作为偏移距离的根据

我们为图像的模糊处理创建两个基本的帧缓冲，每个只有一个颜色缓冲纹理：

GLuint pingpongFBO[2];
GLuint pingpongBuffer[2];
glGenFramebuffers(2, pingpongFBO);
glGenTextures(2, pingpongBuffer);
for (GLuint i = 0; i < 2; i++)
{glBindFramebuffer(GL_FRAMEBUFFER, pingpongFBO[i]);glBindTexture(GL_TEXTURE_2D, pingpongBuffer[i]);glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB16F, SCR_WIDTH, SCR_HEIGHT, 0, GL_RGB, GL_FLOAT, NULL);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, pingpongBuffer[i], 0);
}

得到一个HDR纹理后，我们用提取出来的亮区纹理填充一个帧缓冲，然后对其模糊处理10次（5次垂直5次水平）：

GLboolean horizontal = true, first_iteration = true;
GLuint amount = 10;
shaderBlur.Use();
for (GLuint i = 0; i < amount; i++)
{glBindFramebuffer(GL_FRAMEBUFFER, pingpongFBO[horizontal]); glUniform1i(glGetUniformLocation(shaderBlur.Program, "horizontal"), horizontal);glBindTexture(GL_TEXTURE_2D, first_iteration ? colorBuffers[1] : pingpongBuffers[!horizontal]); RenderQuad();horizontal = !horizontal;if (first_iteration)first_iteration = false;
}
glBindFramebuffer(GL_FRAMEBUFFER, 0);

有一对帧缓冲，我们把另一个帧缓冲的颜色缓冲放进当前的帧缓冲的颜色缓冲中，使用不同的着色效果渲染指定的次数。基本上就是不断地切换帧缓冲和纹理去绘制。这样我们先在场景纹理的第一个缓冲中进行模糊，然后在把第一个帧缓冲的颜色缓冲放进第二个帧缓冲进行模糊，接着，将第二个帧缓冲的颜色缓冲放进第一个，循环往复。

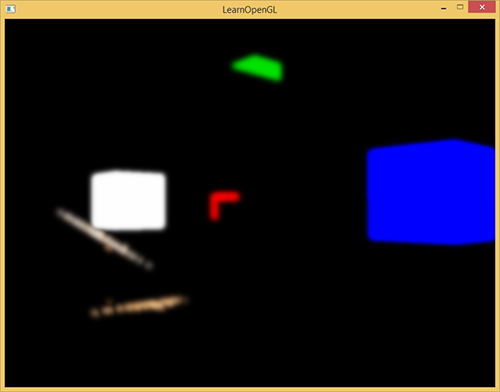

通过对提取亮区纹理进行5次模糊，我们就得到了一个正确的模糊的场景亮区图像。
在这里插入图片描述

泛光的最后一步是把模糊处理的图像和场景原来的HDR纹理进行结合

把两个纹理混合

有了场景的HDR纹理和模糊处理的亮区纹理，我们只需把它们结合起来就能实现泛光或称光晕效果了。最终的像素着色器（大部分和HDR教程用的差不多）要把两个纹理混合：

#version 330 core
out vec4 FragColor;
in vec2 TexCoords;uniform sampler2D scene;
uniform sampler2D bloomBlur;
uniform float exposure;void main()
{             const float gamma = 2.2;vec3 hdrColor = texture(scene, TexCoords).rgb;      vec3 bloomColor = texture(bloomBlur, TexCoords).rgb;hdrColor += bloomColor; // additive blending// tone mappingvec3 result = vec3(1.0) - exp(-hdrColor * exposure);// also gamma correct while we're at it       result = pow(result, vec3(1.0 / gamma));FragColor = vec4(result, 1.0f);
}

要注意的是我们要在应用色调映射之前添加泛光效果。这样添加的亮区的泛光，也会柔和转换为LDR，光照效果相对会更好。

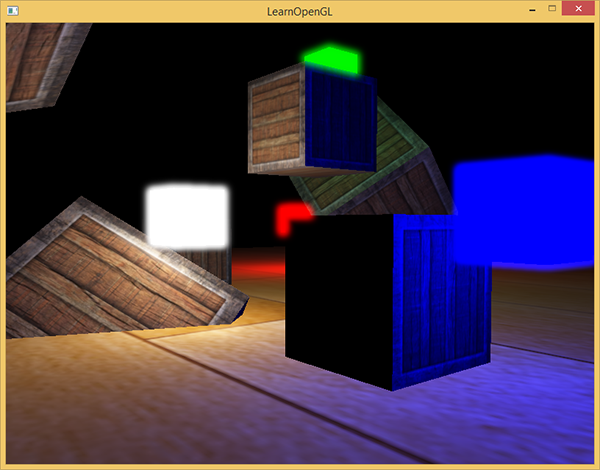

把两个纹理结合以后，场景亮区便有了合适的光晕特效：
在这里插入图片描述

完整代码如下：

#include <glad/glad.h>
#include <GLFW/glfw3.h>
#include "shader.h"
#include <iostream>
#include <glm/glm.hpp>
#include <glm/gtc/matrix_transform.hpp>
#include <glm/gtc/type_ptr.hpp>
#include "Camera.h"
#include "Model.h"
#define STB_IMAGE_IMPLEMENTATION
#include "stb_image.h"
void framebuffer_size_callback(GLFWwindow* window, int width, int height);
void mouse_callback(GLFWwindow* window, double xpos, double ypos);
void scroll_callback(GLFWwindow* window, double xoffset, double yoffset);
void processInput(GLFWwindow *window);
unsigned int loadTexture(const char *path, bool gammaCorrection);
unsigned int loadCubemap(vector<std::string> faces);void renderQuad();
void renderCube();const unsigned int SCR_WIDTH = 1280;
const unsigned int SCR_HEIGHT = 720;
bool bloom = true;
bool bloomKeyPressed = false;Camera camera(glm::vec3(0.0f, 0.0f, 5.0f));
float lastX = SCR_WIDTH / 2.0f;
float lastY = SCR_HEIGHT / 2.0f;
bool firstMouse = true;float deltaTime = 0.0f;
float lastFrame = 0.0f;GLboolean hdr = true; // Change with 'Space'
GLfloat exposure = 1.0f; // Change with Q and E
bool hdrKeyPressed = false;//glm::vec3 lightPos(1.2f, 1.0f, 2.0f);
int main(void)
{//初始化glfw并创建窗口//-------------------glfwInit();glfwWindowHint(GLFW_CONTEXT_VERSION_MAJOR, 3);glfwWindowHint(GLFW_CONTEXT_VERSION_MINOR, 3);glfwWindowHint(GLFW_OPENGL_PROFILE, GLFW_OPENGL_CORE_PROFILE);GLFWwindow * window = glfwCreateWindow(SCR_WIDTH, SCR_HEIGHT, "window", NULL, NULL);if (window == NULL){std::cout << "Failed to create GLFW window" << std::endl;glfwTerminate();return -1;}glfwMakeContextCurrent(window);glfwSetFramebufferSizeCallback(window, framebuffer_size_callback);glfwSetCursorPosCallback(window, mouse_callback);glfwSetScrollCallback(window, scroll_callback);glfwSetInputMode(window, GLFW_CURSOR, GLFW_CURSOR_DISABLED);//初始化GLAD//--------if (!gladLoadGLLoader((GLADloadproc)glfwGetProcAddress)){std::cout << "Failed to initialize GLAD" << std::endl;return -1;}glEnable(GL_DEPTH_TEST);//创建着色器//---------Shader shader("D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/7.bloom/7.bloom.vs", "D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/7.bloom/7.bloom.fs");Shader hdrShader("D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/6.hdr/6.hdr.vs", "D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/6.hdr/6.hdr.fs");Shader shaderLight("D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/7.bloom/7.bloom.vs", "D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/7.bloom/7.light_box.fs");Shader shaderBlur("D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/7.bloom/7.blur.vs", "D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/7.bloom/7.blur.fs");Shader shaderBloomFinal("D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/7.bloom/7.bloom_final.vs", "D:/OpenGL/LearnOpenGL-master/src/5.advanced_lighting/7.bloom/7.bloom_final.fs");unsigned int woodTexture = loadTexture("D:/OpenGL/LearnOpenGL-master/resources/textures/wood.png", true); // note that we're loading the texture as an SRGB textureunsigned int containerTexture = loadTexture("D:/OpenGL/LearnOpenGL-master/resources/textures/container2.png", true);//创建一个浮点帧缓冲unsigned int hdrFBO;glGenFramebuffers(1, &hdrFBO);glBindFramebuffer(GL_FRAMEBUFFER, hdrFBO);unsigned int colorBuffers[2];glGenTextures(2, colorBuffers);for (unsigned int i = 0; i < 2; i++){glBindTexture(GL_TEXTURE_2D, colorBuffers[i]);glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB16F, SCR_WIDTH, SCR_HEIGHT, 0, GL_RGB, GL_FLOAT, NULL);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);  // we clamp to the edge as the blur filter would otherwise sample repeated texture values!glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);// attach texture to framebufferglFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0 + i, GL_TEXTURE_2D, colorBuffers[i], 0);}unsigned int rboDepth;glGenRenderbuffers(1, &rboDepth);glBindRenderbuffer(GL_RENDERBUFFER, rboDepth);glRenderbufferStorage(GL_RENDERBUFFER, GL_DEPTH_COMPONENT, SCR_WIDTH, SCR_HEIGHT);glFramebufferRenderbuffer(GL_FRAMEBUFFER, GL_DEPTH_ATTACHMENT, GL_RENDERBUFFER, rboDepth);unsigned int attachments[2] = { GL_COLOR_ATTACHMENT0, GL_COLOR_ATTACHMENT1 };glDrawBuffers(2, attachments);if (glCheckFramebufferStatus(GL_FRAMEBUFFER) != GL_FRAMEBUFFER_COMPLETE)std::cout << "Framebuffer not complete!" << std::endl;glBindFramebuffer(GL_FRAMEBUFFER, 0);unsigned int pingpongFBO[2];unsigned int pingpongColorbuffers[2];glGenFramebuffers(2, pingpongFBO);glGenTextures(2, pingpongColorbuffers);for (unsigned int i = 0; i < 2; i++){glBindFramebuffer(GL_FRAMEBUFFER, pingpongFBO[i]);glBindTexture(GL_TEXTURE_2D, pingpongColorbuffers[i]);glTexImage2D(GL_TEXTURE_2D, 0, GL_RGB16F, SCR_WIDTH, SCR_HEIGHT, 0, GL_RGB, GL_FLOAT, NULL);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE); glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);glFramebufferTexture2D(GL_FRAMEBUFFER, GL_COLOR_ATTACHMENT0, GL_TEXTURE_2D, pingpongColorbuffers[i], 0);if (glCheckFramebufferStatus(GL_FRAMEBUFFER) != GL_FRAMEBUFFER_COMPLETE)std::cout << "Framebuffer not complete!" << std::endl;}std::vector<glm::vec3> lightPositions;lightPositions.push_back(glm::vec3(0.0f, 0.5f, 1.5f));lightPositions.push_back(glm::vec3(-4.0f, 0.5f, -3.0f));lightPositions.push_back(glm::vec3(3.0f, 0.5f, 1.0f));lightPositions.push_back(glm::vec3(-.8f, 2.4f, -1.0f));std::vector<glm::vec3> lightColors;lightColors.push_back(glm::vec3(5.0f, 5.0f, 5.0f));lightColors.push_back(glm::vec3(10.0f, 0.0f, 0.0f));lightColors.push_back(glm::vec3(0.0f, 0.0f, 15.0f));lightColors.push_back(glm::vec3(0.0f, 5.0f, 0.0f));shader.use();shader.setInt("diffuseTexture", 0);shaderBlur.use();shaderBlur.setInt("image", 0);shaderBloomFinal.use();shaderBloomFinal.setInt("scene", 0);shaderBloomFinal.setInt("bloomBlur", 1);//先渲染一个光照的场景到浮点帧缓冲中，之后再在一个铺屏四边形(Screen-filling Quad)上应用这个帧缓冲的颜色缓冲while (!glfwWindowShouldClose(window)){float currentFrame = glfwGetTime();deltaTime = currentFrame - lastFrame;lastFrame = currentFrame;processInput(window);glClearColor(0.1f, 0.1f, 0.1f, 1.0f);glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);//1. 渲染场景到浮点帧缓冲区glBindFramebuffer(GL_FRAMEBUFFER, hdrFBO);glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);glm::mat4 projection = glm::perspective(glm::radians(camera.Zoom), (GLfloat)SCR_WIDTH / (GLfloat)SCR_HEIGHT, 0.1f, 100.0f);glm::mat4 view = camera.GetViewMatrix();glm::mat4 model = glm::mat4(1.0f);shader.use();shader.setMat4("projection", projection);shader.setMat4("view", view);glActiveTexture(GL_TEXTURE0);glBindTexture(GL_TEXTURE_2D, woodTexture);for (unsigned int i = 0; i < lightPositions.size(); i++){shader.setVec3("lights[" + std::to_string(i) + "].Position", lightPositions[i]);shader.setVec3("lights[" + std::to_string(i) + "].Color", lightColors[i]);}shader.setVec3("viewPos", camera.Position);model = glm::mat4(1.0f);model = glm::translate(model, glm::vec3(0.0f, -1.0f, 0.0));model = glm::scale(model, glm::vec3(12.5f, 0.5f, 12.5f));shader.setMat4("model", model);shader.setMat4("model", model);renderCube();glBindTexture(GL_TEXTURE_2D, containerTexture);model = glm::mat4(1.0f);model = glm::translate(model, glm::vec3(0.0f, 1.5f, 0.0));model = glm::scale(model, glm::vec3(0.5f));shader.setMat4("model", model);renderCube();model = glm::mat4(1.0f);model = glm::translate(model, glm::vec3(2.0f, 0.0f, 1.0));model = glm::scale(model, glm::vec3(0.5f));shader.setMat4("model", model);renderCube();model = glm::mat4(1.0f);model = glm::translate(model, glm::vec3(-1.0f, -1.0f, 2.0));model = glm::rotate(model, glm::radians(60.0f), glm::normalize(glm::vec3(1.0, 0.0, 1.0)));shader.setMat4("model", model);renderCube();model = glm::mat4(1.0f);model = glm::translate(model, glm::vec3(0.0f, 2.7f, 4.0));model = glm::rotate(model, glm::radians(23.0f), glm::normalize(glm::vec3(1.0, 0.0, 1.0)));model = glm::scale(model, glm::vec3(1.25));shader.setMat4("model", model);renderCube();model = glm::mat4(1.0f);model = glm::translate(model, glm::vec3(-2.0f, 1.0f, -3.0));model = glm::rotate(model, glm::radians(124.0f), glm::normalize(glm::vec3(1.0, 0.0, 1.0)));shader.setMat4("model", model);renderCube();model = glm::mat4(1.0f);model = glm::translate(model, glm::vec3(-3.0f, 0.0f, 0.0));model = glm::scale(model, glm::vec3(0.5f));shader.setMat4("model", model);renderCube();shaderLight.use();shaderLight.setMat4("projection", projection);shaderLight.setMat4("view", view);for (unsigned int i = 0; i < lightPositions.size(); i++){model = glm::mat4(1.0f);model = glm::translate(model, glm::vec3(lightPositions[i]));model = glm::scale(model, glm::vec3(0.25f));shaderLight.setMat4("model", model);shaderLight.setVec3("lightColor", lightColors[i]);renderCube();}glBindFramebuffer(GL_FRAMEBUFFER, 0);bool horizontal = true, first_iteration = true;unsigned int amount = 10;shaderBlur.use();for (unsigned int i = 0; i < amount; i++){glBindFramebuffer(GL_FRAMEBUFFER, pingpongFBO[horizontal]);shaderBlur.setInt("horizontal", horizontal);glBindTexture(GL_TEXTURE_2D, first_iteration ? colorBuffers[1] : pingpongColorbuffers[!horizontal]);  // bind texture of other framebuffer (or scene if first iteration)renderQuad();horizontal = !horizontal;if (first_iteration)first_iteration = false;}glBindFramebuffer(GL_FRAMEBUFFER, 0);glClear(GL_COLOR_BUFFER_BIT | GL_DEPTH_BUFFER_BIT);shaderBloomFinal.use();glActiveTexture(GL_TEXTURE0);glBindTexture(GL_TEXTURE_2D, colorBuffers[0]);glActiveTexture(GL_TEXTURE1);glBindTexture(GL_TEXTURE_2D, pingpongColorbuffers[!horizontal]);shaderBloomFinal.setInt("bloom", bloom);shaderBloomFinal.setFloat("exposure", exposure);renderQuad();glfwSwapBuffers(window);glfwPollEvents();}glfwTerminate();return 0;}
void processInput(GLFWwindow *window)
{if (glfwGetKey(window, GLFW_KEY_ESCAPE) == GLFW_PRESS)glfwSetWindowShouldClose(window, true);if (glfwGetKey(window, GLFW_KEY_W) == GLFW_PRESS)camera.ProcessKeyboard(FORWARD, deltaTime);if (glfwGetKey(window, GLFW_KEY_S) == GLFW_PRESS)camera.ProcessKeyboard(BACKWARD, deltaTime);if (glfwGetKey(window, GLFW_KEY_A) == GLFW_PRESS)camera.ProcessKeyboard(LEFT, deltaTime);if (glfwGetKey(window, GLFW_KEY_D) == GLFW_PRESS)camera.ProcessKeyboard(RIGHT, deltaTime);if (glfwGetKey(window, GLFW_KEY_E) == GLFW_PRESS)camera.ProcessKeyboard(UP, deltaTime);if (glfwGetKey(window, GLFW_KEY_Q) == GLFW_PRESS)camera.ProcessKeyboard(DOWN, deltaTime);if (glfwGetKey(window, GLFW_KEY_G) == GLFW_PRESS){if (exposure > 0.0f)exposure -= 0.001f;elseexposure = 0.0f;}else if (glfwGetKey(window, GLFW_KEY_H) == GLFW_PRESS){exposure += 0.001f;}if (glfwGetKey(window, GLFW_KEY_SPACE) == GLFW_PRESS && !bloomKeyPressed){bloom = !bloom;bloomKeyPressed = true;}if (glfwGetKey(window, GLFW_KEY_SPACE) == GLFW_RELEASE){bloomKeyPressed = false;}}void framebuffer_size_callback(GLFWwindow* window, int width, int height)
{glViewport(0, 0, width, height);
}
void mouse_callback(GLFWwindow* window, double xpos, double ypos)
{if (firstMouse){lastX = xpos;lastY = ypos;firstMouse = false;}float xoffset = xpos - lastX;float yoffset = lastY - ypos; // reversed since y-coordinates go from bottom to toplastX = xpos;lastY = ypos;camera.ProcessMouseMovement(xoffset, yoffset);
}
void scroll_callback(GLFWwindow* window, double xoffset, double yoffset)
{camera.ProcessMouseScroll(yoffset);
}
unsigned int loadTexture(char const * path, bool gammaCorrection)
{unsigned int textureID;glGenTextures(1, &textureID);int width, height, nrComponents;unsigned char *data = stbi_load(path, &width, &height, &nrComponents, 0);if (data){GLenum internalFormat;GLenum dataFormat;if (nrComponents == 1){internalFormat = dataFormat = GL_RED;}else if (nrComponents == 3){internalFormat = gammaCorrection ? GL_SRGB : GL_RGB;dataFormat = GL_RGB;}else if (nrComponents == 4){internalFormat = gammaCorrection ? GL_SRGB_ALPHA : GL_RGBA;dataFormat = GL_RGBA;}glBindTexture(GL_TEXTURE_2D, textureID);glTexImage2D(GL_TEXTURE_2D, 0, internalFormat, width, height, 0, dataFormat, GL_UNSIGNED_BYTE, data);glGenerateMipmap(GL_TEXTURE_2D);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_S, GL_REPEAT);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_WRAP_T, GL_REPEAT);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MIN_FILTER, GL_LINEAR_MIPMAP_LINEAR);glTexParameteri(GL_TEXTURE_2D, GL_TEXTURE_MAG_FILTER, GL_LINEAR);stbi_image_free(data);}else{std::cout << "Texture failed to load at path: " << path << std::endl;stbi_image_free(data);}return textureID;
}
unsigned int loadCubemap(vector<std::string> faces)
{unsigned int textureID;glGenTextures(1, &textureID);glBindTexture(GL_TEXTURE_CUBE_MAP, textureID);int width, height, nrChannels;for (unsigned int i = 0; i < faces.size(); i++){unsigned char *data = stbi_load(faces[i].c_str(), &width, &height, &nrChannels, 0);if (data){glTexImage2D(GL_TEXTURE_CUBE_MAP_POSITIVE_X + i, 0, GL_RGB, width, height, 0, GL_RGB, GL_UNSIGNED_BYTE, data);stbi_image_free(data);}else{std::cout << "Cubemap texture failed to load at path: " << faces[i] << std::endl;stbi_image_free(data);}}glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_MIN_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_MAG_FILTER, GL_LINEAR);glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_S, GL_CLAMP_TO_EDGE);glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_T, GL_CLAMP_TO_EDGE);glTexParameteri(GL_TEXTURE_CUBE_MAP, GL_TEXTURE_WRAP_R, GL_CLAMP_TO_EDGE);return textureID;
}unsigned int quadVAO = 0;
unsigned int quadVBO;
void renderQuad()
{if (quadVAO == 0){float quadVertices[] = {// positions        // texture Coords-1.0f,  1.0f, 0.0f, 0.0f, 1.0f,-1.0f, -1.0f, 0.0f, 0.0f, 0.0f,1.0f,  1.0f, 0.0f, 1.0f, 1.0f,1.0f, -1.0f, 0.0f, 1.0f, 0.0f,};// setup plane VAOglGenVertexArrays(1, &quadVAO);glGenBuffers(1, &quadVBO);glBindVertexArray(quadVAO);glBindBuffer(GL_ARRAY_BUFFER, quadVBO);glBufferData(GL_ARRAY_BUFFER, sizeof(quadVertices), &quadVertices, GL_STATIC_DRAW);glEnableVertexAttribArray(0);glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 5 * sizeof(float), (void*)0);glEnableVertexAttribArray(1);glVertexAttribPointer(1, 2, GL_FLOAT, GL_FALSE, 5 * sizeof(float), (void*)(3 * sizeof(float)));}glBindVertexArray(quadVAO);glDrawArrays(GL_TRIANGLE_STRIP, 0, 4);glBindVertexArray(0);}unsigned int cubeVAO = 0;
unsigned int cubeVBO = 0;
void renderCube()
{// initialize (if necessary)if (cubeVAO == 0){float vertices[] = {// back face-1.0f, -1.0f, -1.0f,  0.0f,  0.0f, -1.0f, 0.0f, 0.0f, // bottom-left1.0f,  1.0f, -1.0f,  0.0f,  0.0f, -1.0f, 1.0f, 1.0f, // top-right1.0f, -1.0f, -1.0f,  0.0f,  0.0f, -1.0f, 1.0f, 0.0f, // bottom-right         1.0f,  1.0f, -1.0f,  0.0f,  0.0f, -1.0f, 1.0f, 1.0f, // top-right-1.0f, -1.0f, -1.0f,  0.0f,  0.0f, -1.0f, 0.0f, 0.0f, // bottom-left-1.0f,  1.0f, -1.0f,  0.0f,  0.0f, -1.0f, 0.0f, 1.0f, // top-left// front face-1.0f, -1.0f,  1.0f,  0.0f,  0.0f,  1.0f, 0.0f, 0.0f, // bottom-left1.0f, -1.0f,  1.0f,  0.0f,  0.0f,  1.0f, 1.0f, 0.0f, // bottom-right1.0f,  1.0f,  1.0f,  0.0f,  0.0f,  1.0f, 1.0f, 1.0f, // top-right1.0f,  1.0f,  1.0f,  0.0f,  0.0f,  1.0f, 1.0f, 1.0f, // top-right-1.0f,  1.0f,  1.0f,  0.0f,  0.0f,  1.0f, 0.0f, 1.0f, // top-left-1.0f, -1.0f,  1.0f,  0.0f,  0.0f,  1.0f, 0.0f, 0.0f, // bottom-left// left face-1.0f,  1.0f,  1.0f, -1.0f,  0.0f,  0.0f, 1.0f, 0.0f, // top-right-1.0f,  1.0f, -1.0f, -1.0f,  0.0f,  0.0f, 1.0f, 1.0f, // top-left-1.0f, -1.0f, -1.0f, -1.0f,  0.0f,  0.0f, 0.0f, 1.0f, // bottom-left-1.0f, -1.0f, -1.0f, -1.0f,  0.0f,  0.0f, 0.0f, 1.0f, // bottom-left-1.0f, -1.0f,  1.0f, -1.0f,  0.0f,  0.0f, 0.0f, 0.0f, // bottom-right-1.0f,  1.0f,  1.0f, -1.0f,  0.0f,  0.0f, 1.0f, 0.0f, // top-right// right face1.0f,  1.0f,  1.0f,  1.0f,  0.0f,  0.0f, 1.0f, 0.0f, // top-left1.0f, -1.0f, -1.0f,  1.0f,  0.0f,  0.0f, 0.0f, 1.0f, // bottom-right1.0f,  1.0f, -1.0f,  1.0f,  0.0f,  0.0f, 1.0f, 1.0f, // top-right         1.0f, -1.0f, -1.0f,  1.0f,  0.0f,  0.0f, 0.0f, 1.0f, // bottom-right1.0f,  1.0f,  1.0f,  1.0f,  0.0f,  0.0f, 1.0f, 0.0f, // top-left1.0f, -1.0f,  1.0f,  1.0f,  0.0f,  0.0f, 0.0f, 0.0f, // bottom-left     // bottom face-1.0f, -1.0f, -1.0f,  0.0f, -1.0f,  0.0f, 0.0f, 1.0f, // top-right1.0f, -1.0f, -1.0f,  0.0f, -1.0f,  0.0f, 1.0f, 1.0f, // top-left1.0f, -1.0f,  1.0f,  0.0f, -1.0f,  0.0f, 1.0f, 0.0f, // bottom-left1.0f, -1.0f,  1.0f,  0.0f, -1.0f,  0.0f, 1.0f, 0.0f, // bottom-left-1.0f, -1.0f,  1.0f,  0.0f, -1.0f,  0.0f, 0.0f, 0.0f, // bottom-right-1.0f, -1.0f, -1.0f,  0.0f, -1.0f,  0.0f, 0.0f, 1.0f, // top-right// top face-1.0f,  1.0f, -1.0f,  0.0f,  1.0f,  0.0f, 0.0f, 1.0f, // top-left1.0f,  1.0f , 1.0f,  0.0f,  1.0f,  0.0f, 1.0f, 0.0f, // bottom-right1.0f,  1.0f, -1.0f,  0.0f,  1.0f,  0.0f, 1.0f, 1.0f, // top-right     1.0f,  1.0f,  1.0f,  0.0f,  1.0f,  0.0f, 1.0f, 0.0f, // bottom-right-1.0f,  1.0f, -1.0f,  0.0f,  1.0f,  0.0f, 0.0f, 1.0f, // top-left-1.0f,  1.0f,  1.0f,  0.0f,  1.0f,  0.0f, 0.0f, 0.0f  // bottom-left        };glGenVertexArrays(1, &cubeVAO);glGenBuffers(1, &cubeVBO);// fill bufferglBindBuffer(GL_ARRAY_BUFFER, cubeVBO);glBufferData(GL_ARRAY_BUFFER, sizeof(vertices), vertices, GL_STATIC_DRAW);// link vertex attributesglBindVertexArray(cubeVAO);glEnableVertexAttribArray(0);glVertexAttribPointer(0, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)0);glEnableVertexAttribArray(1);glVertexAttribPointer(1, 3, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)(3 * sizeof(float)));glEnableVertexAttribArray(2);glVertexAttribPointer(2, 2, GL_FLOAT, GL_FALSE, 8 * sizeof(float), (void*)(6 * sizeof(float)));glBindBuffer(GL_ARRAY_BUFFER, 0);glBindVertexArray(0);}// render CubeglBindVertexArray(cubeVAO);glDrawArrays(GL_TRIANGLES, 0, 36);glBindVertexArray(0);
}
