Activiti

是一个工作流引擎，activiti 可以将业务系统中复杂的业务流程抽取出来，使用专门的建模语言(BPMN20)进行定义，业务系统按照预先定义的流程进行执行，实现了业务系统的业务流程由activiti进行管理，减少业务系统由于流程变更进行系统升级改造的工作量，从而提高系统的健壮性，同时也减少了系统开发维护成本。

BMP

BPM ( Business Process Management)，即业务流程管理，是一种以规范化的构造端到端的卓越业务流程为中心，以持续的提高组织业务绩效为目的系统化方法，常见商业管理教育如EMBA、MBA等均将BPM包含在内。
企业流程管理主要是对企业内部改革，改变企业职能管理机构重叠、中间层次多、流程不闭环等，做到机构不重叠、业务不重复，达到缩短流程周期、节约运作资本、提高企业效益的作用。

BPMN

BPMN ( Business Process Model And Notation) .业务流程模型和符号是由BPMI ( Business Process Management Inigtive )开发的一套标准的业务流程建模符号，使用BPMN提供的符号可以创建业务流程。2004 年5月发布了BPMNI.0规范.BPMI于2005年9月并入OMG (The Object Management Group对象管理组织)组织。OMG于2011年1月发布BPMN2.0的最终版本。


【安装】

elipse安装

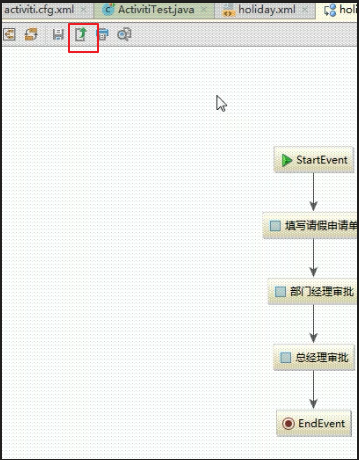

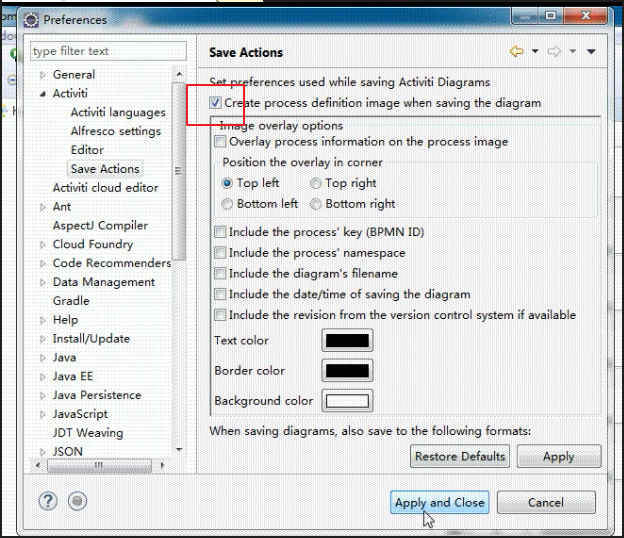

保存后自动出现png图片

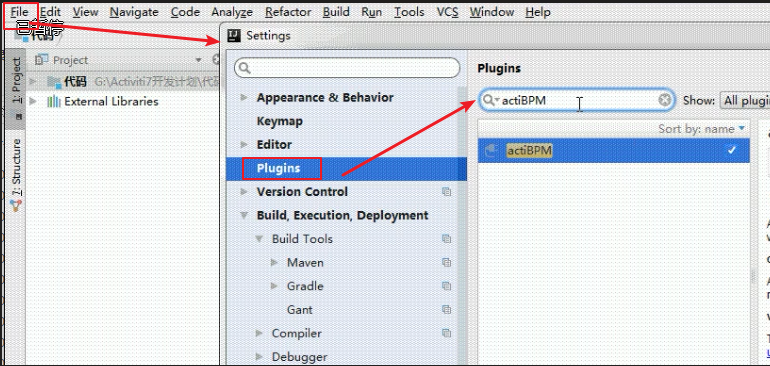

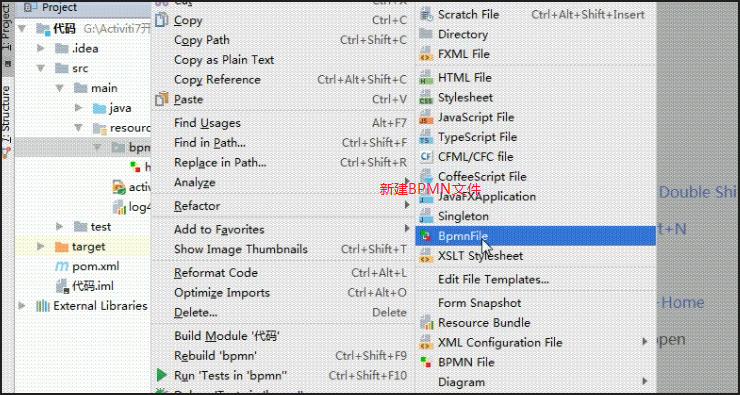

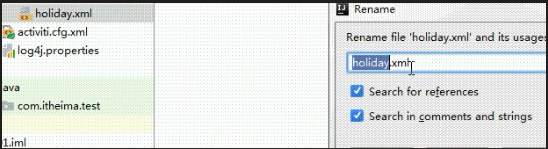

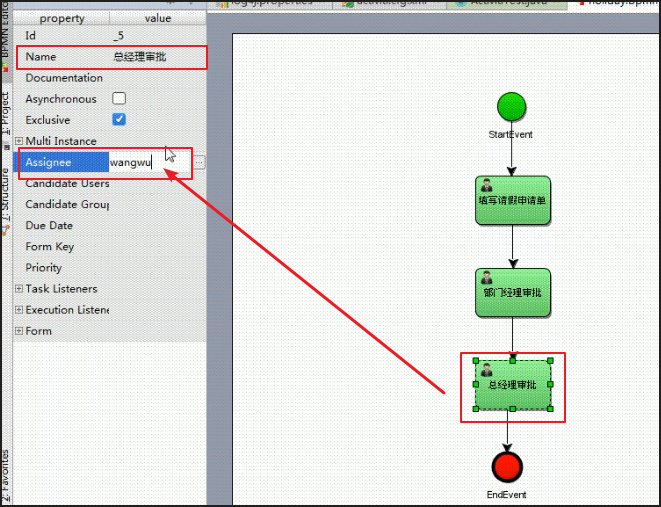

idea安装

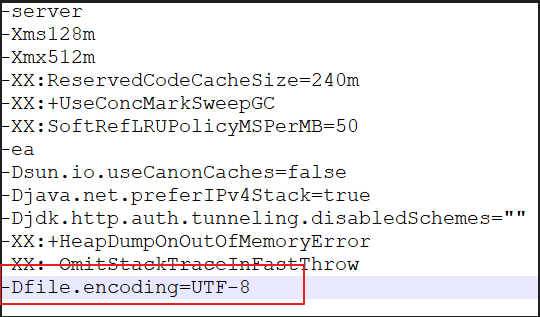

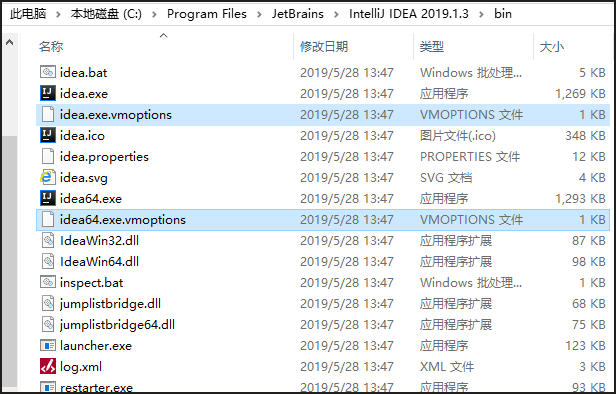

乱码问题：

pom.xml

<!--activiti与spring整合相关坐标引入
activiti7相关的坐标，spring相关坐标，activiti-spring整合包，mysqL驱动包...
-->
<dependencies><dependency><groupId>org.activiti</groupId><artifactId>activiti-engine</artifactId><version>7.0.0.Beta1</version></dependency><dependency><groupId>org.activiti</groupId><artifactId>activiti-spring</artifactId><version>7.0.0.Beta1</version></dependency><dependency><groupId>org.activiti</groupId><artifactId>activiti-bpmn-model</artifactId><version>7.0.0.Beta1</version></dependency><dependency><groupId>org.activiti</groupId><artifactId>activiti-bpmn-converter</artifactId><version>7.0.0.Beta1</version></dependency><dependency><groupId>org.activiti</groupId><artifactId>activiti-json-converter</artifactId><version>7.0.0.Beta1</version></dependency><dependency><groupId>org.activiti</groupId><artifactId>activiti-bpmn-layout</artifactId><version>7.0.0.Beta1</version></dependency><dependency><groupId>org.activiti.cloud</groupId><artifactId>activiti-cloud-services-api</artifactId><version>7.0.0.Beta1</version></dependency><dependency><groupId>aspectj</groupId><artifactId>aspectjweaver</artifactId><version>1.5.4</version></dependency><dependency><groupId>mysql</groupId><artifactId>mysql-connector-java</artifactId><version>5.1.40</version></dependency><dependency><groupId>junit</groupId><artifactId>junit</artifactId><version>4.12</version></dependency><dependency><groupId>org.springframework</groupId><artifactId>spring-test</artifactId><version>5.0.7.RELEASE</version></dependency>
<!--logstart--><dependency><groupId>log4j</groupId><artifactId>log4j</artifactId><version>${log4j.version}</version></dependency><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-api</artifactId><version>${slf4j.version}</version></dependency><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-log4j12</artifactId><version>${slf4j.version}</version></dependency><dependency><groupId>org.slf4j</groupId><artifactId>slf4j-nop</artifactId><version>${slf4j.version}</version></dependency>
<!--logend--><dependency><groupId>org.mybatis</groupId><artifactId>mybatis</artifactId><version>3.4.5</version></dependency><dependency><groupId>commons-dbcp</groupId><artifactId>commons-dbcp</artifactId><version>1.4</version></dependency>
<!--文件读写操作--><dependency><groupId>commons-io</groupId><artifactId>commons-io</artifactId><version>2.0</version></dependency>
</dependencies><repositories><repository><id>alfresco</id><name>ActivitiReleases</name><url>https://artifacts.alfresco.com/nexus/content/repositories/activiti-releases/</url><releases><enabled>true</enabled></releases></repository>
</repositories>

activiti.cfg.xml

<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:context="http://www.springframework.org/schema/context"xmlns:tx="http://www.springframework.org/schema/tx"xsi:schemaLocation="http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans.xsdhttp://www.springframework.org/schema/contex http://www.springframework.org/schema/context/spring-context.xsdhttp://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd"><!--数据源配置dbcp--><bean id="dataSource" class="org.apache.commons.dbcp.BasicDataSource"><property name="driverClassName" value="com.mysql.jdbc.Driver" /><property name="url" value="jdbc:mysql://localhost:3306/activiti" /><property name="username" value="root" /><property name="password" value="root" /></bean><!--activiti单独运行的ProcessEngine配置对象(processEngineConfiguration),使用单独启动方式默认情况下：bean的id=processEngineConfiguration--><bean id="processEngineConfiguration" class="org.activiti.engine.impl.cfg.StandaloneProcessEngineConfiguration"><!--代表数据源--><property name="dataSource" ref="dataSource"></property><!-- <property name="jdbcDriver" value="com.mysql.jdbc.Driver" /><property name="jdbcUrl" value="jdbc:mysql://localhost:3306/activiti" /><property name="jdbcUsername" value="root" /><property name="jdbcPassword" value="root" />--><!--代表是否生成表结构--><property name="databaseSchemaUpdate" value="true"/></bean>
</beans>

log4.properties

# Set root category priority to INFO and its only appender to CONSOLE.
#log4j.rootCategory=INFO, CONSOLE            debug   info   warn error fatal
log4j.rootCategory=debug, CONSOLE, LOGFILE# Set the enterprise logger category to FATAL and its only appender to CONSOLE.
log4j.logger.org.apache.axis.enterprise=FATAL, CONSOLE# CONSOLE is set to be a ConsoleAppender using a PatternLayout.
log4j.appender.CONSOLE=org.apache.log4j.ConsoleAppender
log4j.appender.CONSOLE.layout=org.apache.log4j.PatternLayout
log4j.appender.CONSOLE.layout.ConversionPattern=%d{ISO8601} %-6r [%15.15t] %-5p %30.30c %x - %m\n# LOGFILE is set to be a File appender using a PatternLayout.
log4j.appender.LOGFILE=org.apache.log4j.FileAppender
log4j.appender.LOGFILE.File=d:\axis.log
log4j.appender.LOGFILE.Append=true
log4j.appender.LOGFILE.layout=org.apache.log4j.PatternLayout
log4j.appender.LOGFILE.layout.ConversionPattern=%d{ISO8601} %-6r [%15.15t] %-5p %30.30c %x - %m\n

测试类

public class ActivitiTest {@Testpublic void testGenTable(){//条件：1.activiti配置文件名称：activiti.cfg.xml   2.bean的id="processEngineConfiguration"ProcessEngine processEngine = ProcessEngines.getDefaultProcessEngine();System.out.println(processEngine);// HistoryService historyService = processEngine.getHistoryService();}/* @Testpublic void testGenTable(){//1.创建ProcessEngineConfiguration对象  第一个参数:配置文件名称  第二个参数是processEngineConfiguration的bean的idProcessEngineConfiguration configuration = ProcessEngineConfiguration.createProcessEngineConfigurationFromResource("activiti.cfg.xml","processEngineConfiguration01");//2.创建ProcesEngine对象ProcessEngine processEngine = configuration.buildProcessEngine();//3.输出processEngine对象System.out.println(processEngine);}*/
}
