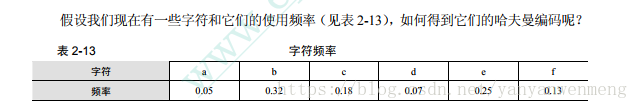

Huffman编码的原理：
以字符的使用频率作为权构建一棵哈夫曼树，然后利用哈夫曼树对字符进行编码。构造一棵哈夫曼树，是将所要编码的字符作为叶子结点，该字符在文件中的使用频率作为叶子结点的权值，以“自底向上”的方式，通过n-1次“合并”运算后构造出的一棵树。
核心思想：权值越大的叶子离根越远。
贪心策略：每次从树的集合中取出没有双亲且权值最小的两棵树作为左右子树。

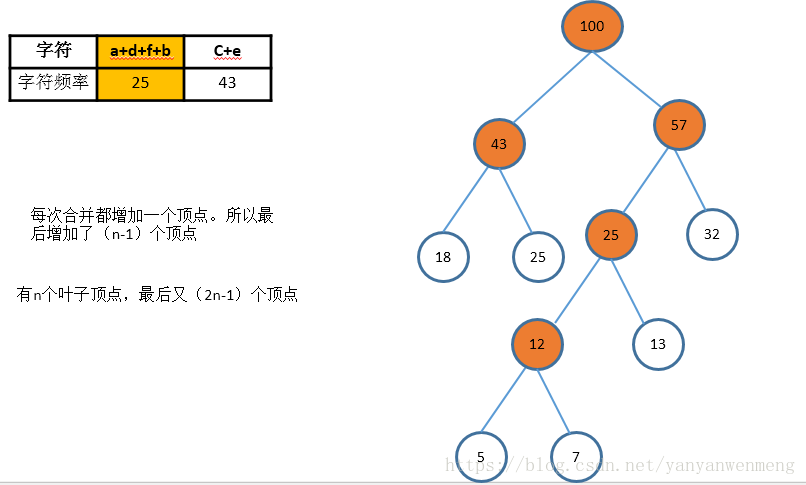

先构建一棵Huffman树：

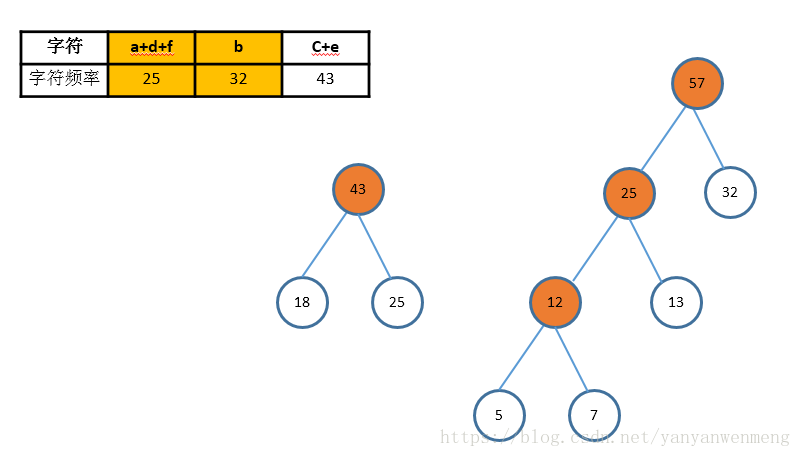

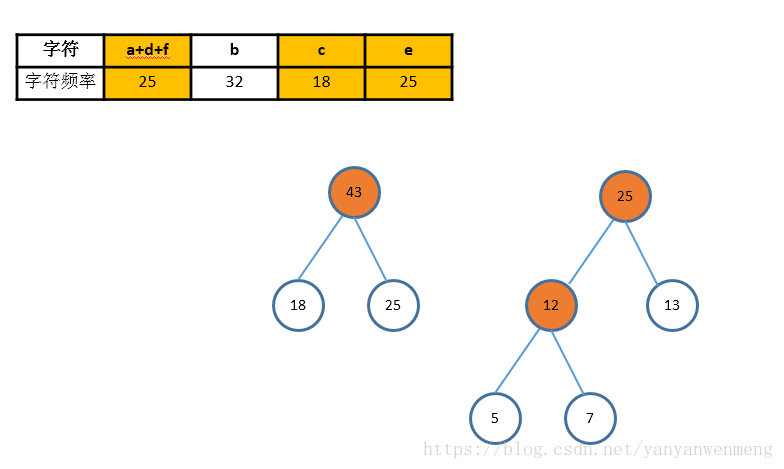

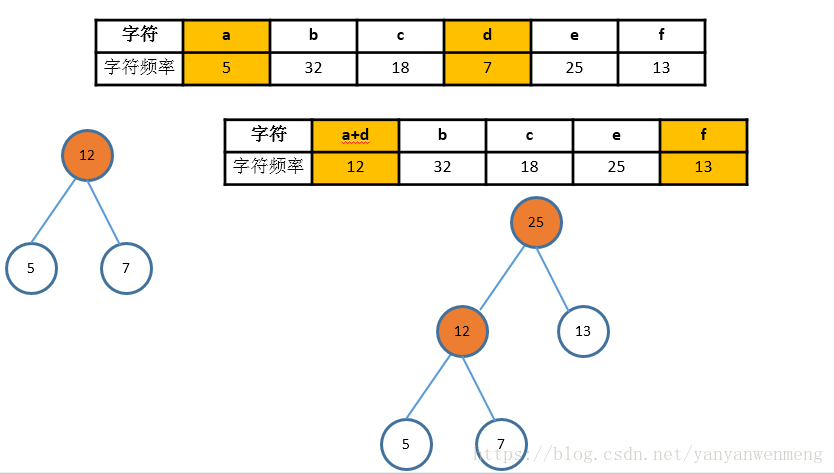

（1）先找到权值最小且没有父亲的两个结点进行合并，创建一棵树，然后循环创建。
设置结构体：
typedef struct{double weight;int parent;int lchild;int rchild;char value;
} HNodeType;//节点结构体typedef struct{int bit[MAXBIT];int start;//反向存储，正向输出
} HcodeType; //编码结构体 HNodeType HuffNode[MAXNODE];
HcodeType HuffCode[MAXLEAF];

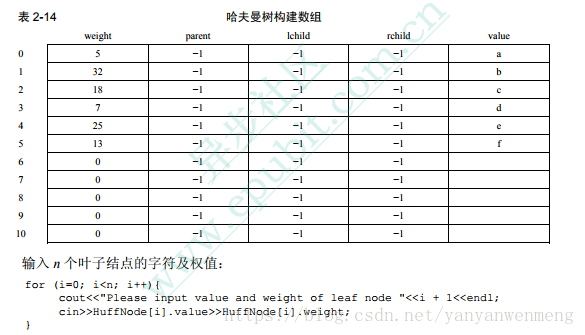

初始化：
int i,j;int x1, x2;//两个最小权值结点在数组中的序号double m1, m2;//两个最小权值结点的权值//初始化哈夫曼数组中的结点for(i = 0; i <= 2*n - 1; ++ i){HuffNode[i].weight = 0;//权值 HuffNode[i].parent = -1;HuffNode[i].lchild = -1;HuffNode[i].rchild = -1;} //输入n个叶子结点的名称和权值for(i = 0; i < n; ++i){cout << "please input value and weight of leaf node:" << i +1;cin >> HuffNode[i].value >> HuffNode[i].weight;}
构造Huffman树
//构造Huffman树（核心） for(i = 0 ; i < n-1; ++i){m1 = m2 = MAXVALUE;//初始化为最大值;x1 = x2 = -1;//找出所有结点中权值最小且无父亲的两个结点，并合并成一棵二叉树for(j = 0 ; j < n+i; ++j){if(m1 > HuffNode[j].weight && HuffNode[j].parent == -1){m2 = m1;x2 = x1;m1 = HuffNode[j].weight;x1 = j;}else if(m2 > HuffNode[j].weight && HuffNode[j].parent == -1){m2 = HuffNode[j].weight;x2 = j;}}//设置找到的两个结点的父节点的信息HuffNode[n+i].weight = m1 + m2;HuffNode[n+i].lchild = x1;HuffNode[n+i].rchild = x2;HuffNode[x1].parent = n+i;HuffNode[x2].parent = n+i;cout << "x1.weight and x2.weight in round" << i+1 <<"\t" << HuffNode[x1].weight << "\t" << HuffNode[x2].weight << endl;
}

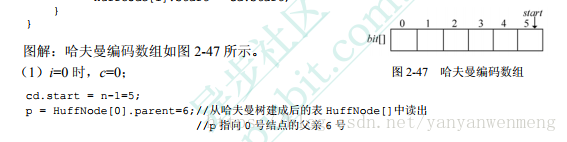

2. 输出哈夫曼编码
void HuffmanCode(HcodeType HuffCode[MAXLEAF], int n)
{HcodeType cd;//定义一个临时变量来存放求解编码时的信息int i,j,c,p;for(i = 0 ; i < n; ++ i){cd.start = n-1;c = i;//c的编号 p = HuffNode[c].parent;//c的父亲结点的编号 while(p != -1){if(HuffNode[p].lchild == c)cd.bit[cd.start] = 0;else if(HuffNode[p].rchild == c)cd.bit[cd.start] = 1;cd.start --;c = p;p = HuffNode[p].parent;} //把叶子结点的编码信息从临时编码cd复制出来，放入编码结构体数组for(j = cd.start+1; j < n; ++ j)HuffCode[i].bit[j] = cd.bit[j];HuffCode[i].start = cd.start;}
}
合并后的代码：
#include<iostream>
using namespace std;
#define MAXBIT 100
#define MAXVALUE 10000
#define MAXLEAF 30
#define MAXNODE MAXLEAF*2-1
typedef struct{double weight;int parent;int lchild;int rchild;char value;
} HNodeType;//节点结构体typedef struct{int bit[MAXBIT];int start;//反向存储，正向输出
} HcodeType; //编码结构体 HNodeType HuffNode[MAXNODE];
HcodeType HuffCode[MAXLEAF];/* 构造哈夫曼树:先找到权值最小且无父亲的两个节点，合并成新的节点*/
void HuffmanTree(HNodeType HuffNode[MAXNODE], int n)
{int i,j;int x1, x2;//两个最小权值结点在数组中的序号double m1, m2;//两个最小权值结点的权值//初始化哈夫曼数组中的结点for(i = 0; i <= 2*n - 1; ++ i){HuffNode[i].weight = 0;//权值 HuffNode[i].parent = -1;HuffNode[i].lchild = -1;HuffNode[i].rchild = -1;} //输入n个叶子结点的名称和权值for(i = 0; i < n; ++i){cout << "please input value and weight of leaf node:" << i +1;cin >> HuffNode[i].value >> HuffNode[i].weight;} //构造Huffman树（核心） for(i = 0 ; i < n-1; ++i){m1 = m2 = MAXVALUE;//初始化为最大值;x1 = x2 = -1;//找出所有结点中权值最小且无父亲的两个结点，并合并成一棵二叉树for(j = 0 ; j < n+i; ++j){if(m1 > HuffNode[j].weight && HuffNode[j].parent == -1){m2 = m1;x2 = x1;m1 = HuffNode[j].weight;x1 = j;}else if(m2 > HuffNode[j].weight && HuffNode[j].parent == -1){m2 = HuffNode[j].weight;x2 = j;}}//设置找到的两个结点的父节点的信息HuffNode[n+i].weight = m1 + m2;HuffNode[n+i].lchild = x1;HuffNode[n+i].rchild = x2;HuffNode[x1].parent = n+i;HuffNode[x2].parent = n+i;cout << "x1.weight and x2.weight in round" << i+1 <<"\t" << HuffNode[x1].weight << "\t" << HuffNode[x2].weight << endl; }

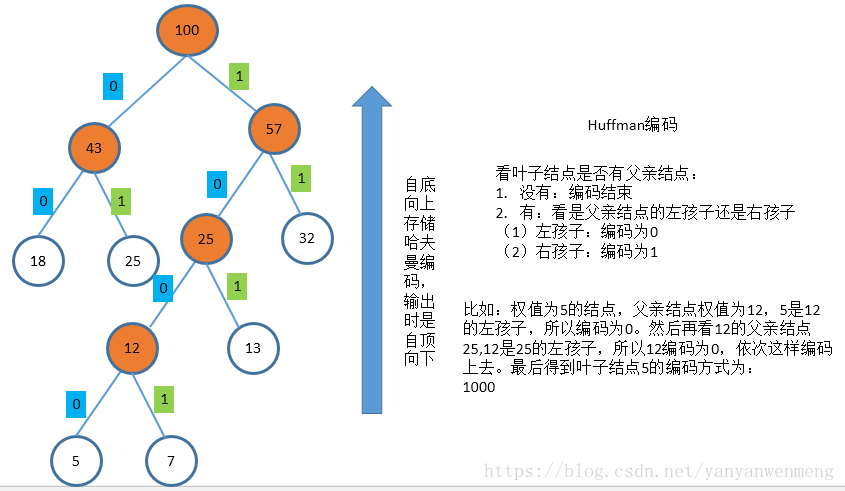

} /*哈夫曼编码：从叶子结点开始，查看其是否有父亲结点，如果有，查看是其父亲结点的
左孩子还是右孩子，左孩子编码为0，右孩子编码为1*/
void HuffmanCode(HcodeType HuffCode[MAXLEAF], int n)
{HcodeType cd;//定义一个临时变量来存放求解编码时的信息int i,j,c,p;for(i = 0 ; i < n; ++ i){cd.start = n-1;c = i;//c的编号 p = HuffNode[c].parent;//c的父亲结点的编号 while(p != -1){if(HuffNode[p].lchild == c)cd.bit[cd.start] = 0;else if(HuffNode[p].rchild == c)cd.bit[cd.start] = 1;cd.start --;c = p;p = HuffNode[p].parent;} //把叶子结点的编码信息从临时编码cd复制出来，放入编码结构体数组for(j = cd.start+1; j < n; ++ j)HuffCode[i].bit[j] = cd.bit[j];HuffCode[i].start = cd.start;}
}

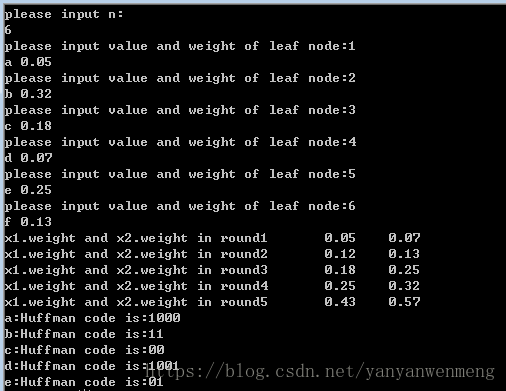

int main()
{int i,j,n;cout << "please input n: " << endl;cin >> n;HuffmanTree(HuffNode,n);//构造哈夫曼树 HuffmanCode(HuffCode,n);//哈夫曼树编码 //输出已保存好的所有存在编码的哈夫曼编码（叶子节点编码）for(i = 0; i < n; ++i){cout << HuffNode[i].value << ":Huffman code is:";for(j = HuffCode[i].start+1; j < n; ++j)cout << HuffCode[i].bit[j];cout << endl; } return 0;
}
