1 驱动程序的编写
驱动是LINUX开发的必经之路，应用层对底层的调用经过了库与内核，内核以下才是驱动层，当你在应用程序运行对底层的控制时，驱动程序为你的控制提供了接口，或者说是策略。
#include <linux/module.h>
#include <linux/kernel.h>
#include <linux/fs.h>
#include <linux/device.h>
#include <asm/io.h>#define DEVICE_NAME "PWM_MOUDLE"
#define PWM_MOUDLE_PHY_ADDR 0x6CA00000 //This Address is based XPS 这个地址ISE EDK中分配的地址就是硬件的东东啦/* 描写叙述驱动程序的一些信息，不是必须的 */
MODULE_AUTHOR("Xilinx XUP"); // 驱动程序的作者
MODULE_DESCRIPTION("PWM moudle dirver"); // 一些描写叙述信息
MODULE_VERSION("v1.0");
MODULE_LICENSE("GPL"); // 遵循的协议static int pwm_driver_major;
static struct class* pwm_driver_class = NULL;
static struct device* pwm_driver_device = NULL;unsigned long pwm_fre_addr = 0; //pwm moulde's frequency visual address
unsigned long pwm_duty_addr = 0; //pwm moulde's duty visual address
static long frequency=0;/*这个结构是字符设备驱动的核心*/static struct file_operations pwm_driver_fops = {.owner = THIS_MODULE, /* 这是一个宏，推向编译模块时自己主动创建的__this_module变量 在Export.h (c:\users\administrator\desktop\linux-3.3-digilent\include\linux):#define THIS_MODULE (&__this_module)*/
};static ssize_t sys_pwm_frequency_set (struct device* dev, struct device_attribute* attr, const char* buf, size_t count)
{long value = 0;int i;frequency=0;outl(value, pwm_fre_addr); //close pwm moudle before we modfiy the frequencyfor (i = 0; i < count-1; i++){frequency *= 10;frequency += buf[i] - '0';}if(value>100000000) value=100000000;value=100000000/frequency; // 100Mhz/frequency 100Mhz is set by XPSoutl(value, pwm_fre_addr);return count;
} static ssize_t sys_pwm_duty_set (struct device* dev, struct device_attribute* attr, const char* buf, size_t count) //duty cycle
{long value = 0;int i;
//outl(value, pwm_duty_addr); //close pwm moudle before we modfiy the duty cyclefor (i = 0; i < count-1; i++){value *= 10;value += buf[i] - '0';}if (value>100) value=100;value=100000000/frequency*value/100;if (value!= 0)value = value | 0x80000000;outl(value, pwm_duty_addr);return count;
} static DEVICE_ATTR(pwm_frequency, S_IWUSR, NULL, sys_pwm_frequency_set);
static DEVICE_ATTR(pwm_duty, S_IWUSR, NULL, sys_pwm_duty_set);
/* 运行insmod xxx.ko时就会运行pwm_driver_module_init（）函数 *
static int __init pwm_driver_module_init(void)

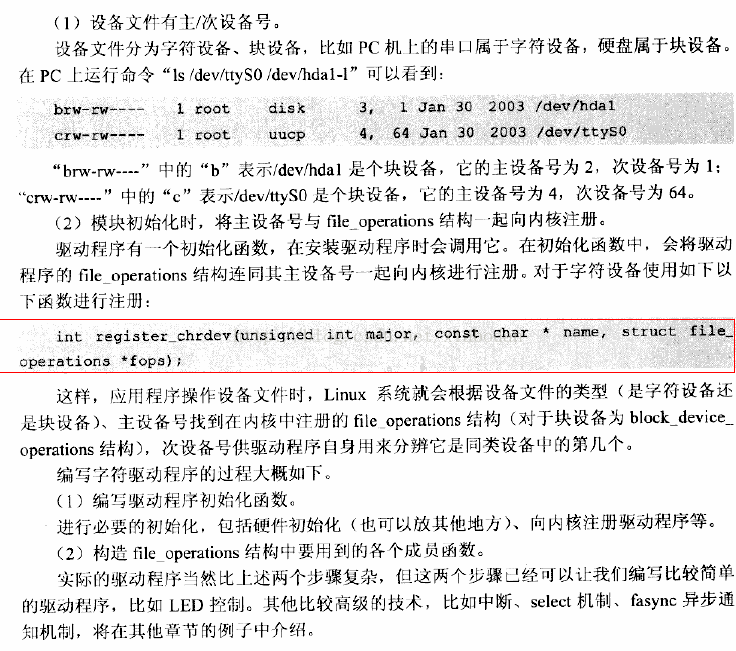

{int ret;/* 注冊字符设备驱动程序* 參数为主设备号、设备名字、file_operations结构；* 这样，主设备号就和详细的file_operations结构联系起来了，* 操作主设备为BUTTON_MAJOR的设备文件时，就会调用s3c24xx_buttons_fops中的相关成员函数* BUTTON_MAJOR能够设为0，表示由内核自己主动分配主设备号*/pwm_driver_major=register_chrdev(0, DEVICE_NAME, &pwm_driver_fops);//内核注冊设备驱动if (pwm_driver_major < 0){printk("failed to register device.\n");return -1;}pwm_driver_class = class_create(THIS_MODULE, "pwm_driver"); //创建PWM设备类if (IS_ERR(pwm_driver_class)){printk("failed to create pwm moudle class.\n");unregister_chrdev(pwm_driver_major, DEVICE_NAME);return -1;}
pwm_driver_device = device_create(pwm_driver_class, NULL, MKDEV(pwm_driver_major, 0), NULL, "pwm_device"); //利用pwm_driver设备类创建一个pwm_deviceif (IS_ERR(pwm_driver_device)){printk("failed to create device .\n");unregister_chrdev(pwm_driver_major, DEVICE_NAME);return -1;}ret = device_create_file(pwm_driver_device, &dev_attr_pwm_frequency); //在pwm_device设备中创建frequency与duty两个文件if (ret < 0)printk("failed to create pwm_frequency endpoint\n");ret = device_create_file(pwm_driver_device, &dev_attr_pwm_duty);if (ret < 0) //将pwm模块的物理地址映射到虚拟地址上 也就是EDK中分配的地址printk("failed to create pwm_duty endpoint\n");pwm_fre_addr = (unsigned long)ioremap(PWM_MOUDLE_PHY_ADDR, sizeof(u32));//To get Custom IP--PWM moudle's virtual addresspwm_duty_addr = pwm_fre_addr+4; printk(" pwm driver initial successfully!\n");return 0;
}/*
运行rmmod xxx.ko时就会运行pwm_driver_module_exit（）函数
*/static void __exit pwm_driver_module_exit(void)
{device_remove_file(pwm_driver_device, &dev_attr_pwm_frequency);device_remove_file(pwm_driver_device, &dev_attr_pwm_duty);device_destroy(pwm_driver_class, MKDEV(pwm_driver_major, 0));class_unregister(pwm_driver_class);class_destroy(pwm_driver_class);unregister_chrdev(pwm_driver_major, DEVICE_NAME);printk("pwm module exit.\n");
}
/* 这两行指定驱动程序的初始化函数和卸载函数 */module_init(pwm_driver_module_init);
module_exit(pwm_driver_module_exit);2驱动程序的编译
makefile编写
ifneq ($(KERNELRELEASE),)obj-m := pwm_driver.oelseKERNEL_DIR := <YOUR_DIR>/ZedBoard/Kernel/Digilent-linux-3.3PWD := $(shell pwd)all:$(MAKE) -C $(KERNEL_DIR) SUBDIRS=$(PWD) modules ARCH=armclean:rm *.o *.ko *.mod.cendif<YOUR_DIR>/ZedBoard/Kernel/Digilent-linux-3.3 是你的路径
最后make 生成pwm_driver.ko 复制到zedboard文件系统上
3 驱动程序的測试
载入驱动

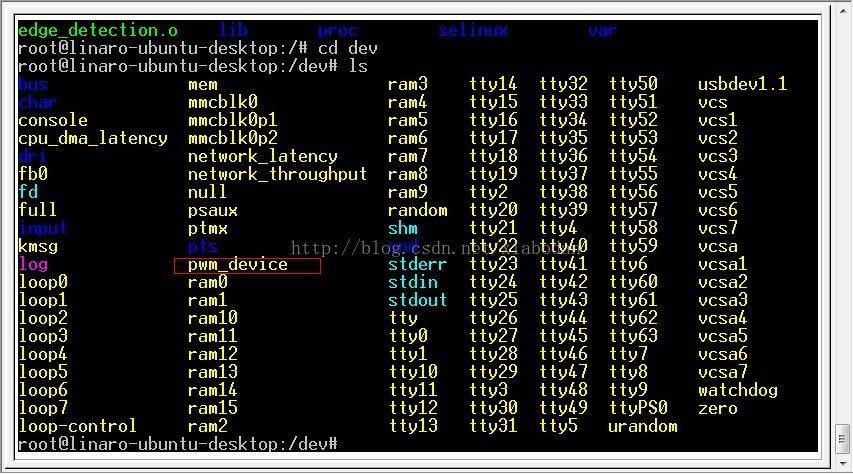

insmod pwm_driver.ko在/dev/ 下能够找到我们注冊的设备 pwm_device
进入/sys/class/..文件夹
在zedboard 的shell上运行 echo 1000 > pwm_frequency
echo 50 > pwm_duty
