效果图

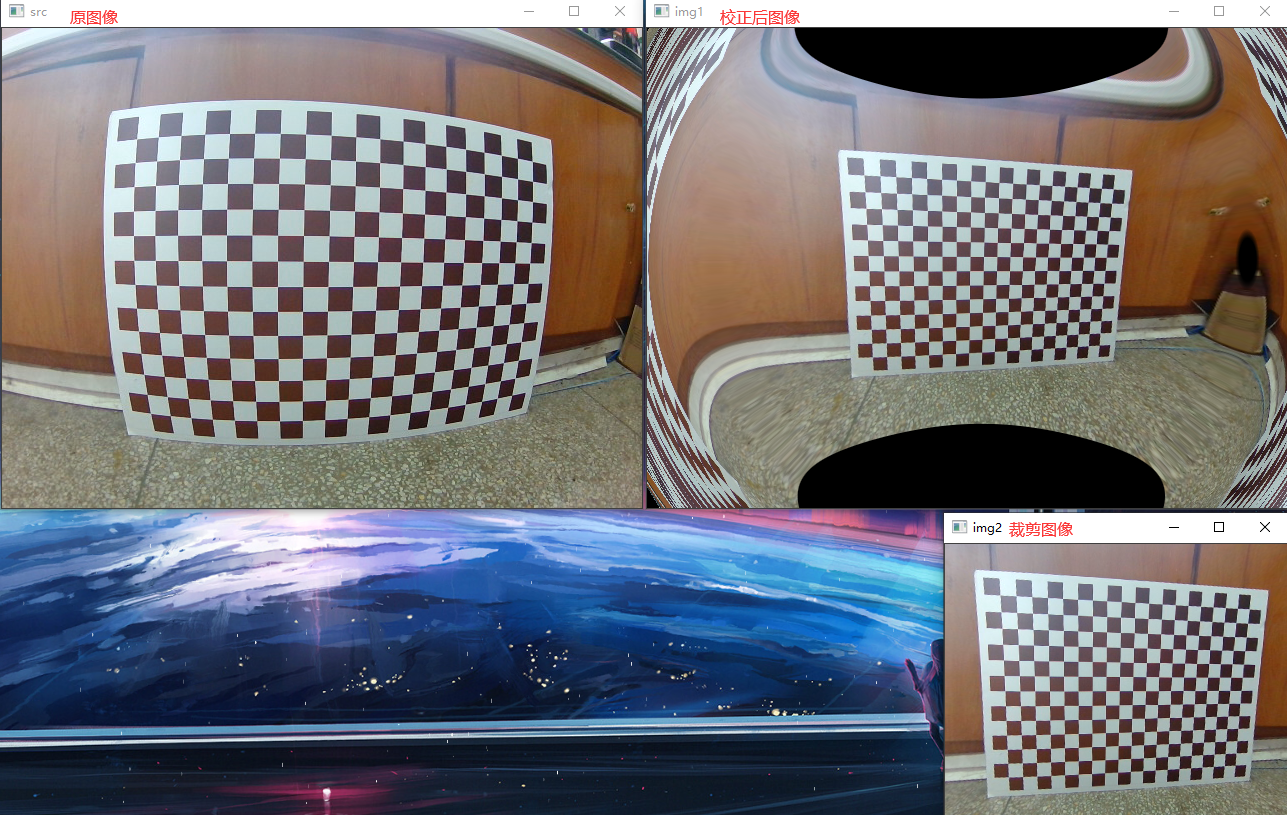

三幅图像分别为矫正前、校正后和裁减后的图片。

矫正后的图像有些奇怪，需要把无用的部分裁剪掉。

代码

步骤一：拍摄棋盘图片

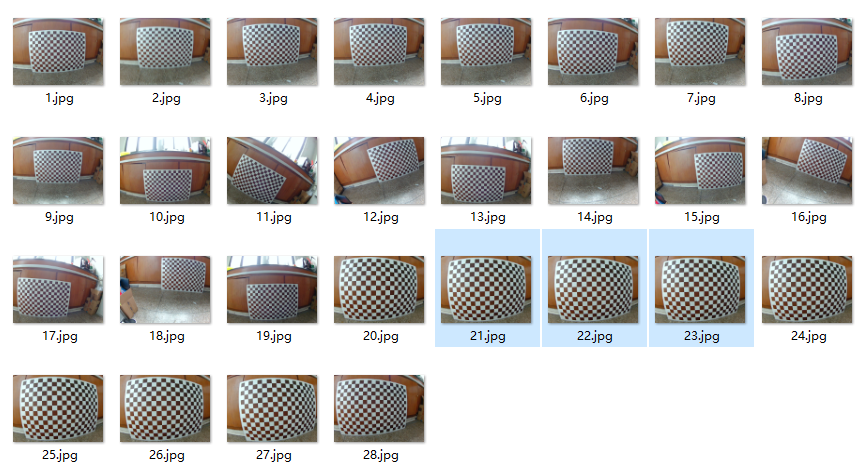

运行该程序，按空格键拍摄棋盘信息（注意拍摄的棋盘要完整），拍摄20张左右即可，按q键退出。

import cv2# 图片保存路径
IMG_SAVE_PATH = "img/"if __name__ == '__main__':num = 1camera = cv2.VideoCapture(0)while True:state, src = camera.read()cv2.imshow('src', src)if cv2.waitKey(10) & 0xff == ord(' '):cv2.imwrite(IMG_SAVE_PATH + str(num) + '.jpg', src)print("Saved img_" + str(num) + "!")num += 1if cv2.waitKey(10) & 0xff == ord('q'):breakcv2.destroyAllWindows()

步骤二：计算畸变矩阵

计算畸变矩阵，并保存畸变数据到parameter文件。

import cv2
import glob
import numpy as np
import pickle
import os# 棋盘规格
BOARD_RAW = 19
BOARD_COL = 13# 图片保存路径
IMG_SAVE_PATH = "img/"
IMG_RESULT_PATH = "result/"if __name__ == '__main__':obj_p = np.zeros((BOARD_RAW*BOARD_COL, 3), np.float32)# np.mgrid[0:raw, 0:col]的shape为(2, 19, 13)转置后为(13, 19, 2)，reshape后为(13*19, 2)# obj_p[:, :2]===>obj_p[:, 0] and obj_p[:, 1]obj_p[:, :2] = np.mgrid[0:BOARD_RAW, 0:BOARD_COL].T.reshape(-1, 2)# print('obj_p:', obj_p)obj_points = []img_points = []images = glob.glob(IMG_SAVE_PATH + '*.jpg')for name in images:print('name:', name)img = cv2.imread(name)gray = cv2.cvtColor(img, cv2.COLOR_BGR2GRAY)# 寻找角点ret, corners = cv2.findChessboardCorners(gray, (BOARD_RAW, BOARD_COL), None)criteria = (cv2.TERM_CRITERIA_EPS + cv2.TERM_CRITERIA_MAX_ITER, 30, 0.001)sub_corners = cv2.cornerSubPix(gray, corners, (11, 11), (-1, -1), criteria)obj_points.append(obj_p)img_points.append(sub_corners)img = cv2.drawChessboardCorners(gray, (BOARD_RAW, BOARD_COL), sub_corners, ret)cv2.imshow('img', img)cv2.imwrite(IMG_RESULT_PATH + 'img'+name.split(os.sep)[-1], img)cv2.waitKey(500)# 标定结果：相机的内参数矩阵，畸变系数，旋转矩阵和平移向量ret, mtx, dist, rvecs, tvecs = cv2.calibrateCamera(obj_points, img_points, gray.shape[::-1], None, None)print('ret:', ret)print('mtx:', mtx)print('dist:', dist)print('rvecs:', rvecs)print('tvecs:', tvecs)# 保存参数cal_parameter = {'ret': ret, 'mtx': mtx, 'dist': dist, 'rvecs': rvecs, 'tvecs': tvecs}pickle.dump(cal_parameter, open("parameter", "wb"), 0)print("Save successfully!")

步骤三：读取广角摄像头图像

打开广角摄像头，进行矫正，分别获得原图像、矫正图像和裁剪图像。

import cv2
import pickleif __name__ == '__main__':# 获取矫正参数f = pickle.load(open('parameter', 'rb'))  # 读取矫正参数ret, mtx, dist, rvecs, tvecs = f['ret'], f['mtx'], f['dist'], f['rvecs'], f['tvecs']# 获取图像尺寸img = cv2.imread('img\\1.jpg')h, w = img.shape[:2]new_camera_mtx, roi = cv2.getOptimalNewCameraMatrix(mtx, dist, (w, h), 1, (w, h))x, y, w, h = roi      # roi 提取的不准确，可能需要手动调整vid = cv2.VideoCapture(0)while True:state, src = vid.read()cv2.imshow('src', src)dst = cv2.undistort(src, mtx, dist, None, new_camera_mtx)cv2.imshow('img1', dst)dst = dst[y:y + h, x:x + w]cv2.imshow('img2', dst)cv2.waitKey(1)
