Binder系列1-Binder Driver

1. Android采用Binder

1. Linux Kernel是开源系统，所开放源代码许可协议GPL保护，Binder Driver运行在Linux Kernel是GPL协议。用户空间采用Apache-2.0协议，内核空间与用户空间（即在GPL协议与Apache-2.0协议）之间的Lib库中采用BSD证授权方法，GPL协议限定在Linux Kernel，有效隔断了GPL的传染性，仍有较大争议。开源与商业化共存的一个成功典范。【Android，在争议中逃离 Linux 内核的 GPL 约束】

2. Binder 是基于开源的OpenBinder实现的，而OpenBinder的作者在Google工作，直接采用 Binder 作为核心的IPC机制。

2. Binder Driver实现

Binder驱动是一个misc device，是虚拟字符设备，主设备号是10，其设备节点是/dev/binder（该节点并不对应真实的硬件设备）。misc类型驱动只需要调用misc_deregister。
主要是驱动设备的初始化(binder_init)，打开 (binder_open)，映射(binder_mmap)，数据操作(binder_ioctl)。

linux/drivers/android/binder.c
linux/include/uapi/linux/android/binder.h

• binder_init：初始化虚拟字符设备，init_binder_device()\init_binderfs()；
• binder_open：打开Binder驱动设备， binder_procs_lock同步锁；
• binder_mmap：申请内存空间， binder_alloc_mmap_lock同步锁；
• binder_ioctl：执行相应的ioctl操作， binder_procs_lock同步锁；当处于binder_thread_read过程，read_buffer无数据则释放同步锁。

2.1 binder_init 注册misc设备节点/dev/binder

• binder_init() -> init_binder_device(device_name) -> misc_register(&binder_device->miscdev) 注册misc设备节点

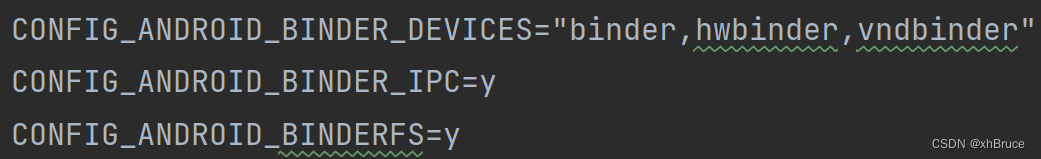

• CONFIG_ANDROID_BINDERFS、binder_devices_param = CONFIG_ANDROID_BINDER_DEVICES在kernel/configs/xxx/android-base.config配置

• binder_fops Binder驱动支持的文件操作，其中使用做多的binder_ioctl \ binder_mmap \ binder_open
• init_binderfs() 注册register_filesystem(&binder_fs_type)(linux/drivers/android/binderfs.c)


const struct file_operations binder_fops = {.owner = THIS_MODULE,.poll = binder_poll,.unlocked_ioctl = binder_ioctl,.compat_ioctl = compat_ptr_ioctl,.mmap = binder_mmap,.open = binder_open,.flush = binder_flush,.release = binder_release,
};static int __init init_binder_device(const char *name)
{// ... ...binder_device->miscdev.fops = &binder_fops;binder_device->miscdev.minor = MISC_DYNAMIC_MINOR;binder_device->miscdev.name = name;// ... ...ret = misc_register(&binder_device->miscdev);// ... ...
}static int __init binder_init(void)
{// ... ...if (!IS_ENABLED(CONFIG_ANDROID_BINDERFS) &&strcmp(binder_devices_param, "") != 0) {/** Copy the module_parameter string, because we don't want to* tokenize it in-place.*/device_names = kstrdup(binder_devices_param, GFP_KERNEL);if (!device_names) {ret = -ENOMEM;goto err_alloc_device_names_failed;}device_tmp = device_names;while ((device_name = strsep(&device_tmp, ","))) {ret = init_binder_device(device_name);if (ret)goto err_init_binder_device_failed;}}ret = init_binderfs();if (ret)goto err_init_binder_device_failed;return ret;err_init_binder_device_failed:// ... ...
err_alloc_device_names_failed:// ... ...
}device_initcall(binder_init);

2.2 binder_open 打开Binder驱动设备

• binder_proc binder进程，每个进程都有独立的记录；proc->todo todo链表
• binder_stats_created(BINDER_STAT_PROC) BINDER_PROC对象创建数加1，binder_stats是binder中统计数据载体
• filp->private_data = proc 把binder_proc对象保存到文件指针filp
• hlist_add_head(&proc->proc_node, &binder_procs) 把binder_proc加入到全局链表binder_procs

static int binder_open(struct inode *nodp, struct file *filp)
{struct binder_proc *proc, *itr;struct binder_device *binder_dev;struct binderfs_info *info;struct dentry *binder_binderfs_dir_entry_proc = NULL;// ... ...proc = kzalloc(sizeof(*proc), GFP_KERNEL);// ... ...INIT_LIST_HEAD(&proc->todo);init_waitqueue_head(&proc->freeze_wait);proc->default_priority = task_nice(current);// ... ...binder_stats_created(BINDER_STAT_PROC);proc->pid = current->group_leader->pid;INIT_LIST_HEAD(&proc->delivered_death);INIT_LIST_HEAD(&proc->waiting_threads);filp->private_data = proc;mutex_lock(&binder_procs_lock);hlist_for_each_entry(itr, &binder_procs, proc_node) {if (itr->pid == proc->pid) {existing_pid = true;break;}}hlist_add_head(&proc->proc_node, &binder_procs);mutex_unlock(&binder_procs_lock);// ... ...
}

2.3 binder_mmap 申请内存空间

• binder_alloc_mmap_handler 申请内存空间，linux/drivers/android/binder_alloc.c

static int binder_mmap(struct file *filp, struct vm_area_struct *vma)
{struct binder_proc *proc = filp->private_data;if (proc->tsk != current->group_leader)return -EINVAL;binder_debug(BINDER_DEBUG_OPEN_CLOSE,"%s: %d %lx-%lx (%ld K) vma %lx pagep %lx\n",__func__, proc->pid, vma->vm_start, vma->vm_end,(vma->vm_end - vma->vm_start) / SZ_1K, vma->vm_flags,(unsigned long)pgprot_val(vma->vm_page_prot));if (vma->vm_flags & FORBIDDEN_MMAP_FLAGS) {pr_err("%s: %d %lx-%lx %s failed %d\n", __func__,proc->pid, vma->vm_start, vma->vm_end, "bad vm_flags", -EPERM);return -EPERM;}vma->vm_flags |= VM_DONTCOPY | VM_MIXEDMAP;vma->vm_flags &= ~VM_MAYWRITE;vma->vm_ops = &binder_vm_ops;vma->vm_private_data = proc;return binder_alloc_mmap_handler(&proc->alloc, vma);
}

2.4 binder_ioctl 执行相应的ioctl操作

• binder_ioctl 函数负责在两个进程间收发IPC数据和IPC reply数据处理

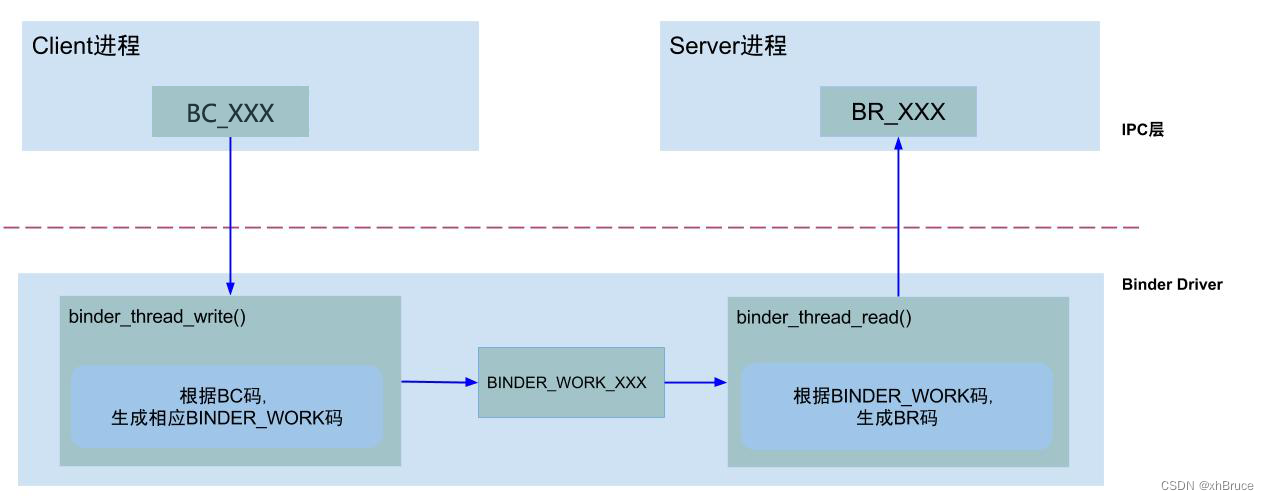

• 核心方法binder_ioctl_write_read() -> binder_thread_write()\binder_thread_read()
  1. binder_thread_write() ：get_user(cmd, (uint32_t __user *)ptr) 获取IPC数据BC请求码

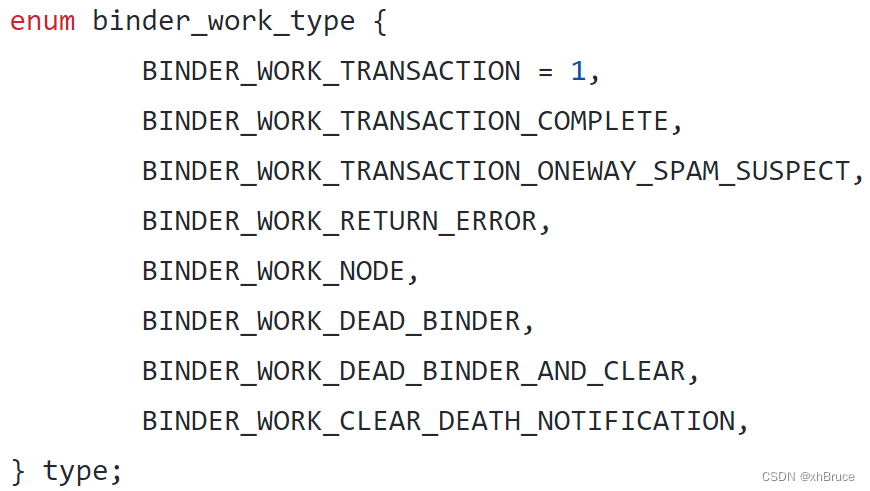

  2. binder_thread_read()：根据w->type(即binder_work->type)响应相应处理。


ioctl命令cmd	说明
BINDER_WRITE_READ	收发Binder IPC数据
BINDER_SET_MAX_THREADS	设置Binder线程最大个数
BINDER_SET_CONTEXT_MGR	设置Service Manager节点
BINDER_SET_CONTEXT_MGR_EXT
BINDER_THREAD_EXIT	释放Binder线程
BINDER_VERSION	获取Binder版本信息
…	…

static long binder_ioctl(struct file *filp, unsigned int cmd, unsigned long arg)
{int ret;struct binder_proc *proc = filp->private_data;struct binder_thread *thread;unsigned int size = _IOC_SIZE(cmd);// ... ...trace_binder_ioctl(cmd, arg);ret = wait_event_interruptible(binder_user_error_wait, binder_stop_on_user_error < 2);// ... ...thread = binder_get_thread(proc);// ... ...switch (cmd) {case BINDER_WRITE_READ:ret = binder_ioctl_write_read(filp, cmd, arg, thread);if (ret)goto err;break;case BINDER_SET_MAX_THREADS://......case BINDER_SET_CONTEXT_MGR_EXT://......case BINDER_SET_CONTEXT_MGR://......case BINDER_THREAD_EXIT://......case BINDER_VERSION://......case BINDER_GET_NODE_INFO_FOR_REF://......case BINDER_GET_NODE_DEBUG_INFO://......case BINDER_FREEZE://......case BINDER_GET_FROZEN_INFO://......case BINDER_ENABLE_ONEWAY_SPAM_DETECTION://......case BINDER_GET_EXTENDED_ERROR://......default:ret = -EINVAL;goto err;}// ... ...if (thread)thread->looper_need_return = false;wait_event_interruptible(binder_user_error_wait, binder_stop_on_user_error < 2);// ... ...
}

3. Binder通信模型

Binder是基于C/S架构的，简单解释下C/S架构，是指客户端(Client)和服务端(Server)组成的架构，Client端有什么需求，直接发送给Server端去完成。Android系统中对外只暴露Client端，Client端将任务发送给Server端。
