红酒论坛网站建设,潍坊关键词优化软件,网站上图怎么用ps做,男生女生做羞羞事的网站主要在官网给的Demo基础之上用OpenCV把特征点描绘出来了。很早之前写过一篇配置Dlib环境的博客，现在来稍微梳理下提取特征点的使用方法。上一篇配置环境博客地址：http://blog.csdn.net/zmdsjtu/article/details/52422847 惯例先放效果图吧&#xff1…

主要在官网给的Demo基础之上用OpenCV把特征点描绘出来了。

很早之前写过一篇配置Dlib环境的博客，现在来稍微梳理下提取特征点的使用方法。

上一篇配置环境博客地址：http://blog.csdn.net/zmdsjtu/article/details/52422847

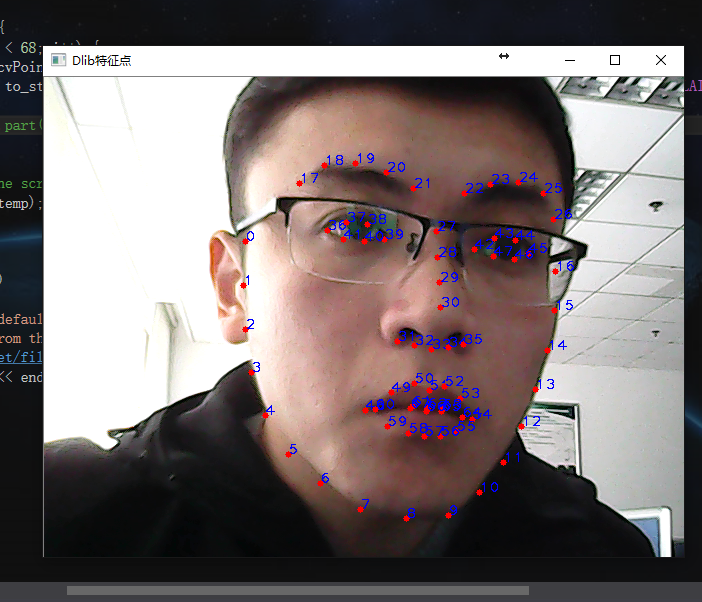

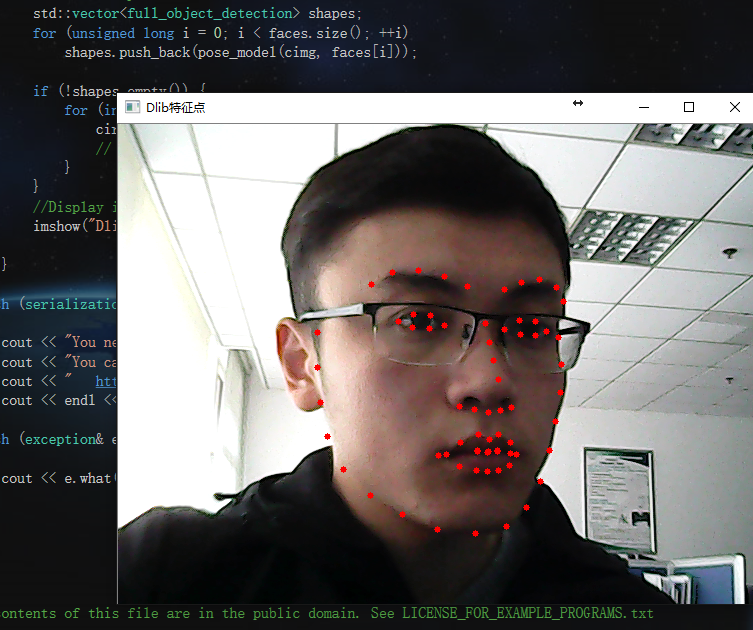

惯例先放效果图吧：

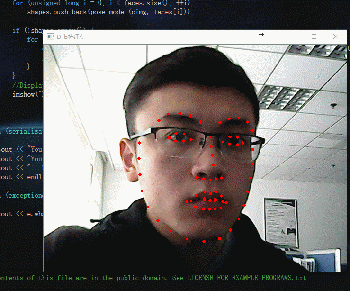

动图如下：

接着就是简单粗暴的代码：

[cpp] view plaincopy

//@zmdsjtu@163.com
//2016-12-4
//http://blog.csdn.net/zmdsjtu/article/details/53454071
#include <dlib/opencv.h>
#include <opencv2/opencv.hpp>
#include <dlib/image_processing/frontal_face_detector.h>
#include <dlib/image_processing/render_face_detections.h>
#include <dlib/image_processing.h>
#include <dlib/gui_widgets.h>
using namespace dlib;
using namespace std;
int main()
{
try
{
cv::VideoCapture cap(0);
if (!cap.isOpened())
{
cerr << "Unable to connect to camera" << endl;
return 1;
}
//image_window win;
// Load face detection and pose estimation models.
frontal_face_detector detector = get_frontal_face_detector();
shape_predictor pose_model;
deserialize("shape_predictor_68_face_landmarks.dat") >> pose_model;
// Grab and process frames until the main window is closed by the user.
while (cv::waitKey(30) != 27)
{
// Grab a frame
cv::Mat temp;
cap >> temp;
cv_image<bgr_pixel> cimg(temp);
// Detect faces
std::vector<rectangle> faces = detector(cimg);
// Find the pose of each face.
std::vector<full_object_detection> shapes;
for (unsigned long i = 0; i < faces.size(); ++i)
shapes.push_back(pose_model(cimg, faces[i]));
if (!shapes.empty()) {
for (int i = 0; i < 68; i++) {
circle(temp, cvPoint(shapes[0].part(i).x(), shapes[0].part(i).y()), 3, cv::Scalar(0, 0, 255), -1);
// shapes[0].part(i).x();//68个
}
}
//Display it all on the screen
imshow("Dlib特征点", temp);
}
}
catch (serialization_error& e)
{
cout << "You need dlib's default face landmarking model file to run this example." << endl;
cout << "You can get it from the following URL: " << endl;
cout << " http://dlib.net/files/shape_predictor_68_face_landmarks.dat.bz2" << endl;
cout << endl << e.what() << endl;
}
catch (exception& e)
{
cout << e.what() << endl;
}
}
