前言:本文章为慕课网上Java企业级电商项目架构演进之路Tomcat集群与Redis分布式的学习笔记.

目录

第一章 思路与配置概要

1.1 思路概要

1.2 配置概要

第二章 springboot连接操作redis数据库

2.1 引入redis的包

2.2 对redis进行配置

2.3 获得redis连接池

2.4 操作redis数据库

第三章 应用配置与nginx服务器与redis服务器的配置

3.1 应用配置

3.2 nginx服务器的配置

3.3 redis服务器的配置

第四章 模拟登陆展示session的存储

4.1 CookieUtil类的设置

4.2 Controller登陆模拟

---

第一章 思路与配置概要

1.1 思路概要

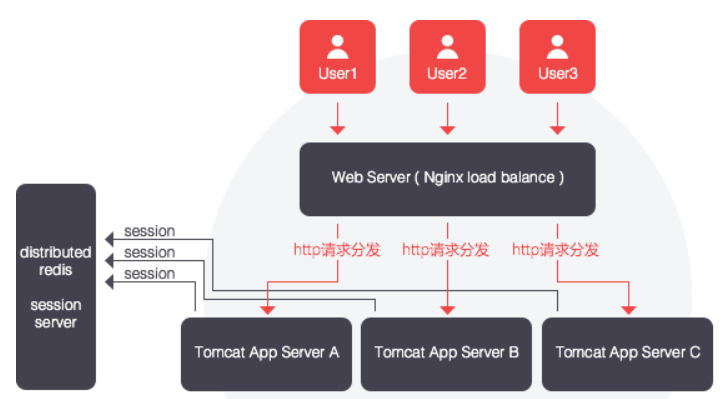

用户的http请求通过nginx反向代理到tomcat集群上,tomcat根据用户发送来的cookie中的id(自己设置的)去redis数据库中进行查找,如果找到即等于用户登陆了.

1.2 配置概要

windows服务器放nginx1.14.2

两台centos7.3服务器,一台放一个tomcat应用,另一台放一个tomcat应用+一个redis.



第二章 springboot连接操作redis数据库

2.1 引入redis的包

<dependency><groupId>redis.clients</groupId><artifactId>jedis</artifactId><version>3.0.0</version>
</dependency>

2.2 对redis进行配置

在application.properties中对填写如下.

#redis
redis.maxtotal = 20
redis.maxIdle = 10
redis.minIdle = 2
redis.testOnReturn = true
redis.testOnBorrow = true
redis.redisPort = 6379
redis.redisIp = 202.112.88.1

2.3 获得redis连接池

将刚才在application.properties中的配置注入类中.

@Component
@ConfigurationProperties(prefix = "redis")
@Slf4j
@Getter
@Setter
public class RedisPool {private JedisPool pool;//jedis连接池private Integer maxtotal; //最大连接数private Integer maxIdle ; //在jedispool中最大的idle(空闲的)状态的jedis实例的个数private Integer minIdle ; //在jedispool中最小的idle(空闲的)状态的jedis实例的个数private Boolean testOnBorrow ;private Boolean testOnReturn ;private Integer redisPort ;private String redisIp;public RedisPool(){log.info("构造方法开始执行");}@PostConstructpublic void initPool(){if(maxtotal==20) log.info("属性已经注入");log.info("开始创建连接池");JedisPoolConfig config = new JedisPoolConfig();config.setMaxTotal(maxtotal);config.setMaxIdle(maxIdle);config.setMinIdle(minIdle);config.setTestOnBorrow(testOnBorrow);config.setTestOnReturn(testOnReturn);config.setBlockWhenExhausted(true);pool = new JedisPool(config,redisIp,redisPort,1000*2);}public  Jedis getJedis(){return pool.getResource();}}

2.4 操作redis数据库

通过连接池获得jedis对象,然后就可以操作redis数据库了.

@Component
@Slf4j
public class RedisPoolUtil {
//注入刚才的redis连接池@AutowiredRedisPool redisPool;
//获取redis数据库中key的值public  String get(String key){Jedis jedis = null;String result = null;try {jedis = redisPool.getJedis();result = jedis.get(key);} catch (Exception e) {log.error("get key:{} error",key,e);}jedis.close();return result;}
//增加redis数据库中的值public  String set(String key,String value){Jedis jedis = null;String result = null;try {jedis = redisPool.getJedis();result = jedis.set(key,value);} catch (Exception e) {log.error("set key:{} error",key,e);}jedis.close();return result;}
//增加redis数据库中的值并设置时间 30*60就是30分钟public String setEx(String key,String value,int exTime){Jedis jedis = null;String result = null;try {jedis = redisPool.getJedis();result = jedis.setex(key,exTime,value);} catch (Exception e) {log.error("setex key:{} value:{} error",key,value,e);}jedis.close();return result;}
//设置redis数据库中hey的时间public Long expire(String key,int exTime){Jedis jedis = null;Long result = null;try {jedis = redisPool.getJedis();result = jedis.expire(key,exTime);} catch (Exception e) {log.error("expire key:{} error",key,e);}jedis.close();return result;}
//删除redis数据库中的keypublic Long del(String key){Jedis jedis = null;Long result = null;try {jedis = redisPool.getJedis();result = jedis.del(key);} catch (Exception e) {log.error("del key:{} error",key,e);}jedis.close();return result;}
//判断redis数据库中是否存在某个keypublic Boolean exists(String key){Jedis jedis = null;Boolean result = null;try {jedis = redisPool.getJedis();result = jedis.exists(key);} catch (Exception e) {log.error("exists key:{} error",key,e);}jedis.close();return result;}}



第三章 应用配置与nginx服务器与redis服务器的配置



打开centos服务器的的8079端口与6379端口

3.1 应用配置

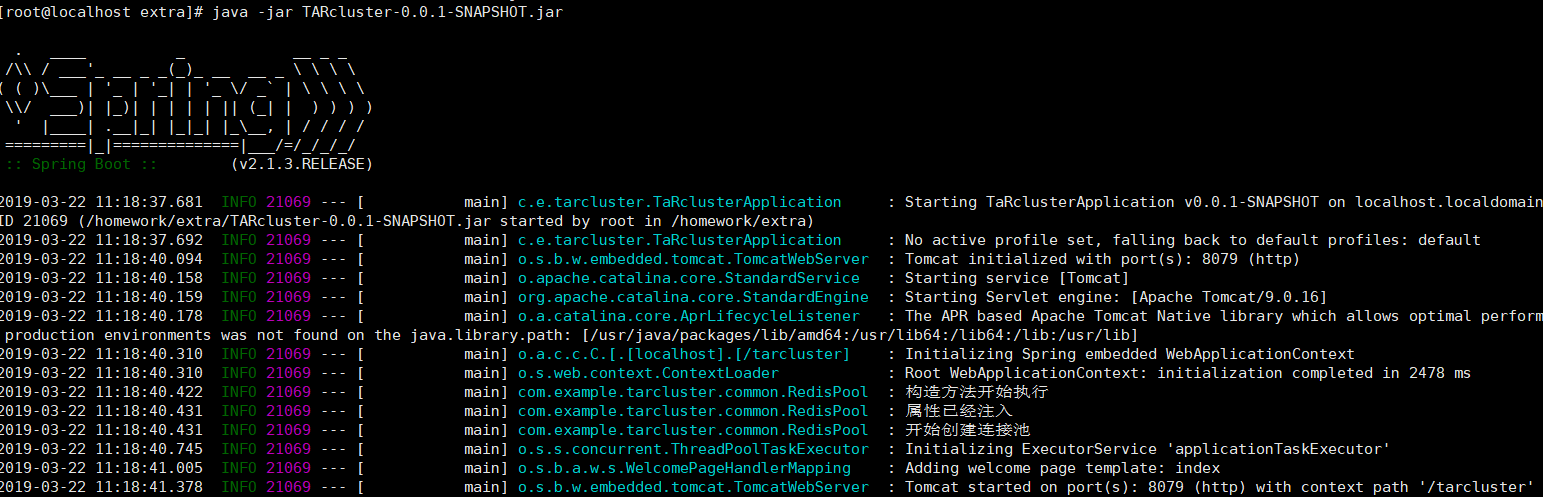

运行mvn clean package,将jar放到两台centos7.3服务器上并用java -jar运行应用.

#Server
server.servlet.context-path=/tarcluster
server.port=8079



3.2 nginx服务器的配置

将端口80的请求反向代理到两个tomcat服务器上.

upstream zhang {server 202.112.99.1:8079;server 202.112.99.2:8079;}server {listen       80;server_name  zhangsan;location / {proxy_pass http://zhang;proxy_read_timeout 150;add_header Access-Control-Allow-Origin *;}}

3.3 redis服务器的配置

在后台启动redis服务器,并关闭安全模式即可.

关闭安全模式:

1.我们需要修改配置文件../redis.conf

# bind 127.0.0.1

2.在redis.conf中设置保护模式为no

protected-mode no

启动redis服务器: ./redis-server ../redis.conf

第四章 模拟登陆展示session的存储



4.1 CookieUtil类的设置

@Slf4j
public class CookieUtil {private final static String COOKIE_DOMAIN = "";public static final String COOKIE_NAME = "mmall_login_token";
//将cookie写入responsepublic static void writeLoginToken(HttpServletResponse response,String token){Cookie ck = new Cookie(COOKIE_NAME,token);ck.setMaxAge(60*60*24);ck.setPath("/");ck.setHttpOnly(true);log.info("已设置cookie:{},value:{}",ck.getName(),ck.getValue());response.addCookie(ck);}
//将cookie从request中读出public static String readLoginToken(HttpServletRequest request){Cookie[] cookies = request.getCookies();if(cookies!=null){for (Cookie ck :cookies) {if(StringUtils.equals(ck.getName(),COOKIE_NAME)){log.info("已读取到cookie:{},value:{}",ck.getName(),ck.getValue());return ck.getValue();}}}return null;}
//删除cookiepublic static void delLoginToken(HttpServletRequest request,HttpServletResponse response){Cookie[] cookies = request.getCookies();if(cookies!=null){for (Cookie ck:cookies) {if(StringUtils.equals(ck.getName(),COOKIE_NAME)){ck.setMaxAge(0);ck.setPath("/");response.addCookie(ck);}}}}}

4.2 Controller登陆模拟

@RequestMapping("/login")public String login(String username, Model model, HttpSession session, HttpServletResponse response, HttpServletRequest request){String key = CookieUtil.readLoginToken(request);model.addAttribute("sessionid",session.getId());//key为null证明request中不存在我们设置的cookieName//cookie中存在我们设置的cookieName,但是reids库中不找不到对应的记录//key既不为null,在redis中也能根据key查找到值,表示用户已不用登陆.if(key!=null&&redisPoolUtil.exists(key)){redisPoolUtil.expire(key,30*60);log.info("检测到key,直接登陆");model.addAttribute("keyValue",redisPoolUtil.get(key));}else{log.info("请求登陆");User user = new User();user.setAddress("shijiazhuang");user.setName("张晨");user.setAge(24);user.setSchool("bnu");//模拟登陆成功找到user,将user序列化成字符串,以当次请求的sessionid为//key,将其存储到redis数据库中,再将sessionid为value,mmall_login_token为//key存储到cookie中返回.以后用户每次请求从cookie中根据mmall_login_token//读取出sessionid,再根据sessionid拿到序列化后的字符串.//obj2String是将对象序列化为字符串log.info("登陆成功");redisPoolUtil.setEx(session.getId(),JsonUtil.obj2String(user),30*60);CookieUtil.writeLoginToken(response,session.getId());}return  "index";}
