机器翻译和数据集

机器翻译（MT）：将一段文本从一种语言自动翻译为另一种语言，用神经网络解决这个问题通常称为神经机器翻译（NMT）。
主要特征：输出是单词序列而不是单个单词。 输出序列的长度可能与源序列的长度不同。

import os
os.listdir('/home/kesci/input/')

['fraeng6506', 'd2l9528', 'd2l6239']

import sys
sys.path.append('/home/kesci/input/d2l9528/')
import collections
import d2l
import zipfile

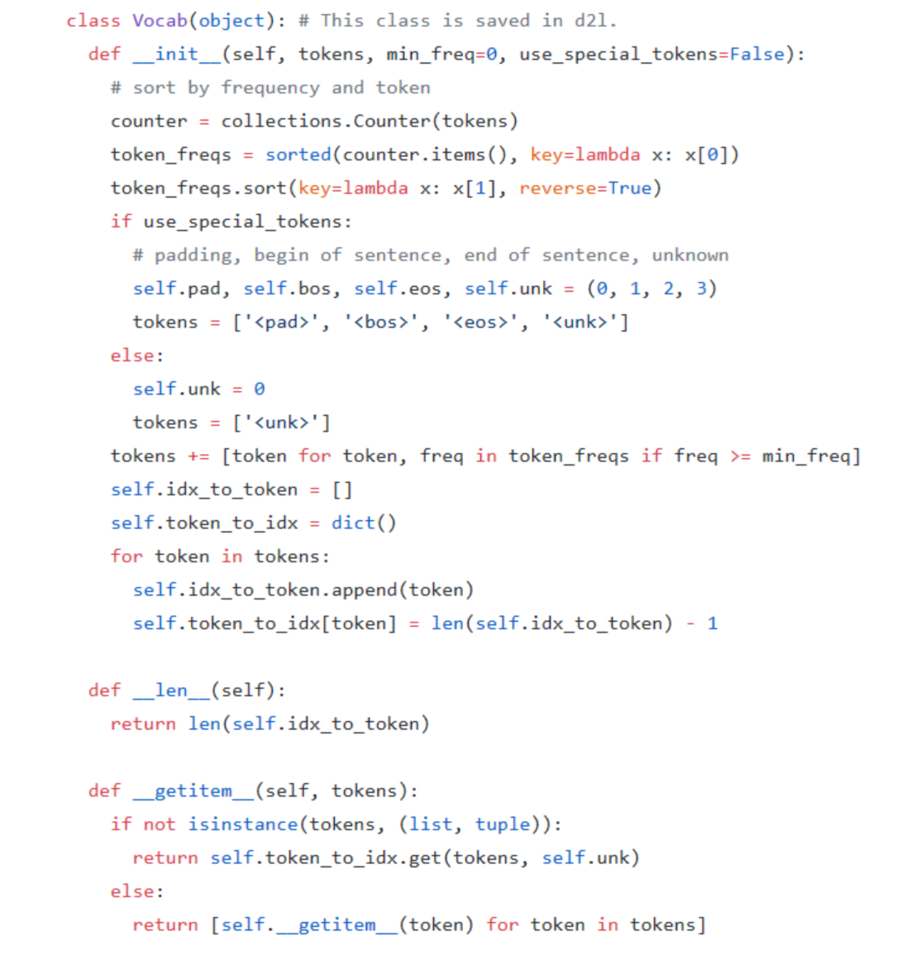

from d2l.data.base import Vocab
import time
import torch
import torch.nn as nn
import torch.nn.functional as F
from torch.utils import data
from torch import optim

数据预处理

将数据集清洗、转化为神经网络的输入minbatch

with open('/home/kesci/input/fraeng6506/fra.txt', 'r') as f:raw_text = f.read()
print(raw_text[0:1000])

Go. Va !    CC-BY 2.0 (France) Attribution: tatoeba.org #2877272 (CM) & #1158250 (Wittydev)
Hi. Salut ! CC-BY 2.0 (France) Attribution: tatoeba.org #538123 (CM) & #509819 (Aiji)
Hi. Salut.  CC-BY 2.0 (France) Attribution: tatoeba.org #538123 (CM) & #4320462 (gillux)
Run!    Cours ! CC-BY 2.0 (France) Attribution: tatoeba.org #906328 (papabear) & #906331 (sacredceltic)
Run!    Courez !    CC-BY 2.0 (France) Attribution: tatoeba.org #906328 (papabear) & #906332 (sacredceltic)
Who?    Qui ?   CC-BY 2.0 (France) Attribution: tatoeba.org #2083030 (CK) & #4366796 (gillux)
Wow!    Ça alors !  CC-BY 2.0 (France) Attribution: tatoeba.org #52027 (Zifre) & #374631 (zmoo)
Fire!   Au feu !    CC-BY 2.0 (France) Attribution: tatoeba.org #1829639 (Spamster) & #4627939 (sacredceltic)
Help!   À l'aide !  CC-BY 2.0 (France) Attribution: tatoeba.org #435084 (lukaszpp) & #128430 (sysko)
Jump.   Saute.  CC-BY 2.0 (France) Attribution: tatoeba.org #631038 (Shishir) & #2416938 (Phoenix)
Stop!   Ça suffit ! CC-BY 2.0 (France) Attribution: tato

def preprocess_raw(text):text = text.replace('\u202f', ' ').replace('\xa0', ' ')out = ''for i, char in enumerate(text.lower()):if char in (',', '!', '.') and i > 0 and text[i-1] != ' ':out += ' 'out += charreturn outtext = preprocess_raw(raw_text)
print(text[0:1000])

go .    va !    cc-by 2 .0 (france) attribution: tatoeba .org #2877272 (cm) & #1158250 (wittydev)
hi .    salut ! cc-by 2 .0 (france) attribution: tatoeba .org #538123 (cm) & #509819 (aiji)
hi .    salut . cc-by 2 .0 (france) attribution: tatoeba .org #538123 (cm) & #4320462 (gillux)
run !   cours ! cc-by 2 .0 (france) attribution: tatoeba .org #906328 (papabear) & #906331 (sacredceltic)
run !   courez !    cc-by 2 .0 (france) attribution: tatoeba .org #906328 (papabear) & #906332 (sacredceltic)
who?    qui ?   cc-by 2 .0 (france) attribution: tatoeba .org #2083030 (ck) & #4366796 (gillux)
wow !   ça alors !  cc-by 2 .0 (france) attribution: tatoeba .org #52027 (zifre) & #374631 (zmoo)
fire !  au feu !    cc-by 2 .0 (france) attribution: tatoeba .org #1829639 (spamster) & #4627939 (sacredceltic)
help !  à l'aide !  cc-by 2 .0 (france) attribution: tatoeba .org #435084 (lukaszpp) & #128430 (sysko)
jump .  saute . cc-by 2 .0 (france) attribution: tatoeba .org #631038 (shishir) & #2416938 (phoenix)
stop !  ça suffit ! cc-b

字符在计算机里是以编码的形式存在，我们通常所用的空格是 \x20 ，是在标准ASCII可见字符 0x20~0x7e 范围内。
而 \xa0 属于 latin1 （ISO/IEC_8859-1）中的扩展字符集字符，代表不间断空白符nbsp(non-breaking space)，超出gbk编码范围，是需要去除的特殊字符。再数据预处理的过程中，我们首先需要对数据进行清洗。

分词

字符串---单词组成的列表

num_examples = 50000
source, target = [], []
for i, line in enumerate(text.split('\n')):if i > num_examples:breakparts = line.split('\t')if len(parts) >= 2:source.append(parts[0].split(' '))target.append(parts[1].split(' '))source[0:3], target[0:3]

([['go', '.'], ['hi', '.'], ['hi', '.']],[['va', '!'], ['salut', '!'], ['salut', '.']])

d2l.set_figsize()
d2l.plt.hist([[len(l) for l in source], [len(l) for l in target]],label=['source', 'target'])
d2l.plt.legend(loc='upper right');

<img src="https://cdn.kesci.com/rt_upload/7589E7D345B3463A8F0F4574ED6EDA9A/q5jefa8ffq.svg">

建立词典

单词组成的列表---单词id组成的列表

def build_vocab(tokens):tokens = [token for line in tokens for token in line]return d2l.data.base.Vocab(tokens, min_freq=3, use_special_tokens=True)src_vocab = build_vocab(source)
len(src_vocab)

3789

载入数据集

def pad(line, max_len, padding_token):if len(line) > max_len:return line[:max_len]return line + [padding_token] * (max_len - len(line))
pad(src_vocab[source[0]], 10, src_vocab.pad)

[38, 4, 0, 0, 0, 0, 0, 0, 0, 0]

def build_array(lines, vocab, max_len, is_source):lines = [vocab[line] for line in lines]if not is_source:lines = [[vocab.bos] + line + [vocab.eos] for line in lines]array = torch.tensor([pad(line, max_len, vocab.pad) for line in lines])valid_len = (array != vocab.pad).sum(1) #第一个维度return array, valid_len

def load_data_nmt(batch_size, max_len): # This function is saved in d2l.src_vocab, tgt_vocab = build_vocab(source), build_vocab(target)src_array, src_valid_len = build_array(source, src_vocab, max_len, True)tgt_array, tgt_valid_len = build_array(target, tgt_vocab, max_len, False)train_data = data.TensorDataset(src_array, src_valid_len, tgt_array, tgt_valid_len)train_iter = data.DataLoader(train_data, batch_size, shuffle=True)return src_vocab, tgt_vocab, train_iter

src_vocab, tgt_vocab, train_iter = load_data_nmt(batch_size=2, max_len=8)
for X, X_valid_len, Y, Y_valid_len, in train_iter:print('X =', X.type(torch.int32), '\nValid lengths for X =', X_valid_len,'\nY =', Y.type(torch.int32), '\nValid lengths for Y =', Y_valid_len)break

X = tensor([[   5,   24,    3,    4,    0,    0,    0,    0],[  12, 1388,    7,    3,    4,    0,    0,    0]], dtype=torch.int32)
Valid lengths for X = tensor([4, 5])
Y = tensor([[   1,   23,   46,    3,    3,    4,    2,    0],[   1,   15,  137,   27, 4736,    4,    2,    0]], dtype=torch.int32)
Valid lengths for Y = tensor([7, 7])

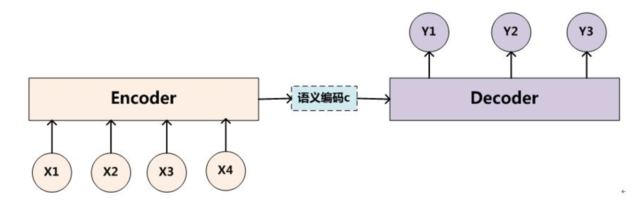

Encoder-Decoder

encoder：输入到隐藏状态
decoder：隐藏状态到输出

class Encoder(nn.Module):def __init__(self, **kwargs):super(Encoder, self).__init__(**kwargs)def forward(self, X, *args):raise NotImplementedError

class Decoder(nn.Module):def __init__(self, **kwargs):super(Decoder, self).__init__(**kwargs)def init_state(self, enc_outputs, *args):raise NotImplementedErrordef forward(self, X, state):raise NotImplementedError

class EncoderDecoder(nn.Module):def __init__(self, encoder, decoder, **kwargs):super(EncoderDecoder, self).__init__(**kwargs)self.encoder = encoderself.decoder = decoderdef forward(self, enc_X, dec_X, *args):enc_outputs = self.encoder(enc_X, *args)dec_state = self.decoder.init_state(enc_outputs, *args)return self.decoder(dec_X, dec_state)

可以应用在对话系统、生成式任务中。

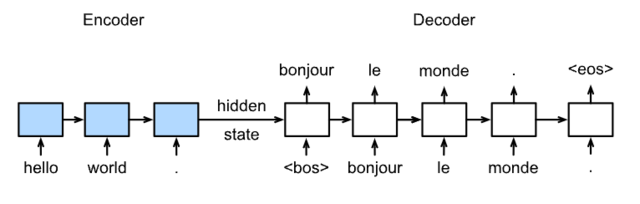

Sequence to Sequence模型

模型：

训练

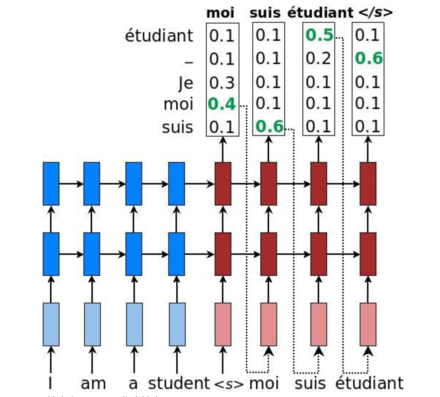

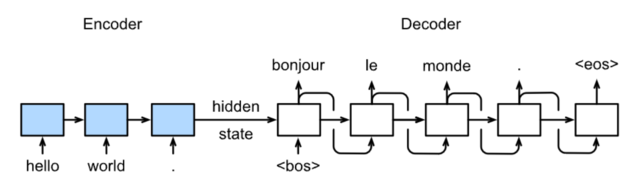

预测

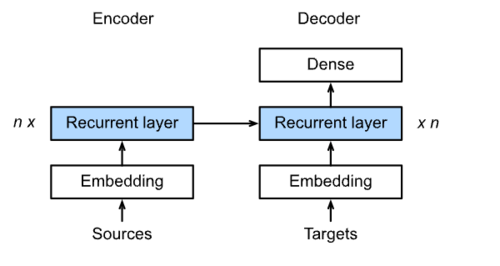

具体结构：

Encoder

class Seq2SeqEncoder(d2l.Encoder):def __init__(self, vocab_size, embed_size, num_hiddens, num_layers,dropout=0, **kwargs):super(Seq2SeqEncoder, self).__init__(**kwargs)self.num_hiddens=num_hiddensself.num_layers=num_layersself.embedding = nn.Embedding(vocab_size, embed_size)self.rnn = nn.LSTM(embed_size,num_hiddens, num_layers, dropout=dropout)def begin_state(self, batch_size, device):return [torch.zeros(size=(self.num_layers, batch_size, self.num_hiddens),  device=device),torch.zeros(size=(self.num_layers, batch_size, self.num_hiddens),  device=device)]def forward(self, X, *args):X = self.embedding(X) # X shape: (batch_size, seq_len, embed_size)X = X.transpose(0, 1)  # RNN needs first axes to be time# state = self.begin_state(X.shape[1], device=X.device)out, state = self.rnn(X)# The shape of out is (seq_len, batch_size, num_hiddens).# state contains the hidden state and the memory cell# of the last time step, the shape is (num_layers, batch_size, num_hiddens)return out, state

encoder = Seq2SeqEncoder(vocab_size=10, embed_size=8,num_hiddens=16, num_layers=2)
X = torch.zeros((4, 7),dtype=torch.long)
output, state = encoder(X)
output.shape, len(state), state[0].shape, state[1].shape

(torch.Size([7, 4, 16]), 2, torch.Size([2, 4, 16]), torch.Size([2, 4, 16]))

Decoder

class Seq2SeqDecoder(d2l.Decoder):def __init__(self, vocab_size, embed_size, num_hiddens, num_layers,dropout=0, **kwargs):super(Seq2SeqDecoder, self).__init__(**kwargs)self.embedding = nn.Embedding(vocab_size, embed_size)self.rnn = nn.LSTM(embed_size,num_hiddens, num_layers, dropout=dropout)self.dense = nn.Linear(num_hiddens,vocab_size)def init_state(self, enc_outputs, *args):return enc_outputs[1]def forward(self, X, state):X = self.embedding(X).transpose(0, 1)out, state = self.rnn(X, state)# Make the batch to be the first dimension to simplify loss computation.out = self.dense(out).transpose(0, 1)return out, state

decoder = Seq2SeqDecoder(vocab_size=10, embed_size=8,num_hiddens=16, num_layers=2)
state = decoder.init_state(encoder(X))
out, state = decoder(X, state)
out.shape, len(state), state[0].shape, state[1].shape

(torch.Size([4, 7, 10]), 2, torch.Size([2, 4, 16]), torch.Size([2, 4, 16]))

损失函数

def SequenceMask(X, X_len,value=0):maxlen = X.size(1)mask = torch.arange(maxlen)[None, :].to(X_len.device) < X_len[:, None]   X[~mask]=valuereturn X

X = torch.tensor([[1,2,3], [4,5,6]])
SequenceMask(X,torch.tensor([1,2]))

tensor([[1, 0, 0],[4, 5, 0]])

X = torch.ones((2,3, 4))
SequenceMask(X, torch.tensor([1,2]),value=-1)

tensor([[[ 1.,  1.,  1.,  1.],[-1., -1., -1., -1.],[-1., -1., -1., -1.]],[[ 1.,  1.,  1.,  1.],[ 1.,  1.,  1.,  1.],[-1., -1., -1., -1.]]])

class MaskedSoftmaxCELoss(nn.CrossEntropyLoss):# pred shape: (batch_size, seq_len, vocab_size)# label shape: (batch_size, seq_len)# valid_length shape: (batch_size, )def forward(self, pred, label, valid_length):# the sample weights shape should be (batch_size, seq_len)weights = torch.ones_like(label)weights = SequenceMask(weights, valid_length).float()self.reduction='none'output=super(MaskedSoftmaxCELoss, self).forward(pred.transpose(1,2), label)return (output*weights).mean(dim=1)

loss = MaskedSoftmaxCELoss()
loss(torch.ones((3, 4, 10)), torch.ones((3,4),dtype=torch.long), torch.tensor([4,3,0]))

tensor([2.3026, 1.7269, 0.0000])

训练

def train_ch7(model, data_iter, lr, num_epochs, device):  # Saved in d2lmodel.to(device)optimizer = optim.Adam(model.parameters(), lr=lr)loss = MaskedSoftmaxCELoss()tic = time.time()for epoch in range(1, num_epochs+1):l_sum, num_tokens_sum = 0.0, 0.0for batch in data_iter:optimizer.zero_grad()X, X_vlen, Y, Y_vlen = [x.to(device) for x in batch]Y_input, Y_label, Y_vlen = Y[:,:-1], Y[:,1:], Y_vlen-1Y_hat, _ = model(X, Y_input, X_vlen, Y_vlen)l = loss(Y_hat, Y_label, Y_vlen).sum()l.backward()with torch.no_grad():d2l.grad_clipping_nn(model, 5, device)num_tokens = Y_vlen.sum().item()optimizer.step()l_sum += l.sum().item()num_tokens_sum += num_tokensif epoch % 50 == 0:print("epoch {0:4d},loss {1:.3f}, time {2:.1f} sec".format( epoch, (l_sum/num_tokens_sum), time.time()-tic))tic = time.time()

embed_size, num_hiddens, num_layers, dropout = 32, 32, 2, 0.0
batch_size, num_examples, max_len = 64, 1e3, 10
lr, num_epochs, ctx = 0.005, 300, d2l.try_gpu()
src_vocab, tgt_vocab, train_iter = d2l.load_data_nmt(batch_size, max_len,num_examples)
encoder = Seq2SeqEncoder(len(src_vocab), embed_size, num_hiddens, num_layers, dropout)
decoder = Seq2SeqDecoder(len(tgt_vocab), embed_size, num_hiddens, num_layers, dropout)
model = d2l.EncoderDecoder(encoder, decoder)
train_ch7(model, train_iter, lr, num_epochs, ctx)

epoch   50,loss 0.093, time 38.2 sec
epoch  100,loss 0.046, time 37.9 sec
epoch  150,loss 0.032, time 36.8 sec
epoch  200,loss 0.027, time 37.5 sec
epoch  250,loss 0.026, time 37.8 sec
epoch  300,loss 0.025, time 37.3 sec

测试

def translate_ch7(model, src_sentence, src_vocab, tgt_vocab, max_len, device):src_tokens = src_vocab[src_sentence.lower().split(' ')]src_len = len(src_tokens)if src_len < max_len:src_tokens += [src_vocab.pad] * (max_len - src_len)enc_X = torch.tensor(src_tokens, device=device)enc_valid_length = torch.tensor([src_len], device=device)# use expand_dim to add the batch_size dimension.enc_outputs = model.encoder(enc_X.unsqueeze(dim=0), enc_valid_length)dec_state = model.decoder.init_state(enc_outputs, enc_valid_length)dec_X = torch.tensor([tgt_vocab.bos], device=device).unsqueeze(dim=0)predict_tokens = []for _ in range(max_len):Y, dec_state = model.decoder(dec_X, dec_state)# The token with highest score is used as the next time step input.dec_X = Y.argmax(dim=2)py = dec_X.squeeze(dim=0).int().item()if py == tgt_vocab.eos:breakpredict_tokens.append(py)return ' '.join(tgt_vocab.to_tokens(predict_tokens))

for sentence in ['Go .', 'Wow !', "I'm OK .", 'I won !']:print(sentence + ' => ' + translate_ch7(model, sentence, src_vocab, tgt_vocab, max_len, ctx))

Go . => va !
Wow ! => <unk> !
I'm OK . => ça va .
I won ! => j'ai gagné !

Beam Search

简单greedy search：

维特比算法：选择整体分数最高的句子（搜索空间太大）

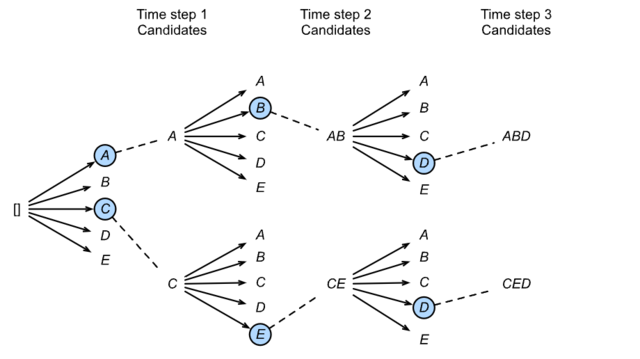

集束搜索：
