流程配置

holiday-request.bpmn20.xml

<?xml version="1.0" encoding="UTF-8"?>
<definitions xmlns="http://www.omg.org/spec/BPMN/20100524/MODEL"xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"xmlns:xsd="http://www.w3.org/2001/XMLSchema"xmlns:bpmndi="http://www.omg.org/spec/BPMN/20100524/DI"xmlns:omgdc="http://www.omg.org/spec/DD/20100524/DC"xmlns:omgdi="http://www.omg.org/spec/DD/20100524/DI"xmlns:flowable="http://flowable.org/bpmn"typeLanguage="http://www.w3.org/2001/XMLSchema"expressionLanguage="http://www.w3.org/1999/XPath"targetNamespace="http://www.flowable.org/processdef"><process id="holidayRequest" name="请假流程" isExecutable="true"><startEvent id="startEvent"/><sequenceFlow sourceRef="startEvent" targetRef="approveTask"/><userTask id="approveTask" name="同意或者拒绝请假" flowable:assignee="zhangsan"/><sequenceFlow sourceRef="approveTask" targetRef="decision"/><exclusiveGateway id="decision"/><sequenceFlow sourceRef="decision" targetRef="externalSystemCall"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${approved}]]></conditionExpression></sequenceFlow><sequenceFlow  sourceRef="decision" targetRef="sendRejectionMail"><conditionExpression xsi:type="tFormalExpression"><![CDATA[${!approved}]]></conditionExpression></sequenceFlow><serviceTask id="externalSystemCall" name="Enter holidays in external system"flowable:class="org.flowable.CallExternalSystemDelegate"/><sequenceFlow sourceRef="externalSystemCall" targetRef="holidayApprovedTask"/><userTask id="holidayApprovedTask" name="Holiday approved"/><sequenceFlow sourceRef="holidayApprovedTask" targetRef="approveEnd"/><serviceTask id="sendRejectionMail" name="Send out rejection email"flowable:class="org.flowable.SendRejectionMail"/><sequenceFlow sourceRef="sendRejectionMail" targetRef="rejectEnd"/><endEvent id="approveEnd"/><endEvent id="rejectEnd"/></process></definitions>

1. 部署流程

 @Beforepublic void before(){// 获取  ProcessEngineConfiguration 对象configuration = new StandaloneProcessEngineConfiguration();// 配置 相关的数据库的连接信息configuration.setJdbcDriver("com.mysql.cj.jdbc.Driver");configuration.setJdbcUsername("root");configuration.setJdbcPassword("123456");configuration.setJdbcUrl("jdbc:mysql://localhost:3306/flowable-learn?serverTimezone=UTC&nullCatalogMeansCurrent=true");// 如果数据库中的表结构不存在就新建configuration.setDatabaseSchemaUpdate(ProcessEngineConfiguration.DB_SCHEMA_UPDATE_TRUE);}/*** 部署流程**/@Testpublic void testDeploy(){// 1.获取 ProcessEngine 对象ProcessEngine processEngine = configuration.buildProcessEngine();// 2.获取RepositoryServiceRepositoryService repositoryService = processEngine.getRepositoryService();// 3.完成流程的部署操作Deployment deploy = repositoryService.createDeployment().addClasspathResource("holiday-request.bpmn20.xml")// 关联要部署的流程文件.name("请求流程").category("公司流程").deploy() ;// 部署流程System.out.println("deploy.getId() = " + deploy.getId());System.out.println("deploy.getName() = " + deploy.getName());}

flowable 部署工作流，会将往如下表中保存数据:

act_ge_bytearray

act_re_deployment 流程部署

act_re_procdef 流程定义

一个流程定义会产生多个流程实例

2. 查询流程

 /*** 查询流程定义的信息*/@Testpublic void testDeployQuery(){ProcessEngine processEngine = configuration.buildProcessEngine();RepositoryService repositoryService = processEngine.getRepositoryService();/*ProcessDefinitionQuery processDefinitionQuery = repositoryService.createProcessDefinitionQuery();ProcessDefinition processDefinition = processDefinitionQuery.deploymentId("1").singleResult();*/ProcessDefinition processDefinition = repositoryService.createProcessDefinitionQuery().deploymentId("1").singleResult();System.out.println("processDefinition.getDeploymentId() = " + processDefinition.getDeploymentId());System.out.println("processDefinition.getName() = " + processDefinition.getName());System.out.println("processDefinition.getDescription() = " + processDefinition.getDescription());System.out.println("processDefinition.getId() = " + processDefinition.getId());}

processDefinition.getDeploymentId() = 1
processDefinition.getName() = 请假流程
processDefinition.getDescription() = null
processDefinition.getId() = holidayRequest:1:3

3. 删除流程定义

  /*** 删除流程定义*/@Testpublic void testDeleteDeploy(){ProcessEngine processEngine = configuration.buildProcessEngine();RepositoryService repositoryService = processEngine.getRepositoryService();// 删除部署的流程 第一个参数是 id  如果部署的流程启动了就不允许删除了// repositoryService.deleteDeployment("2501");// 第二个参数是级联删除，如果流程启动了 相关的任务一并会被删除掉repositoryService.deleteDeployment("1",true);}

执行完成后，数据库中以上三张表中数据就被清除了

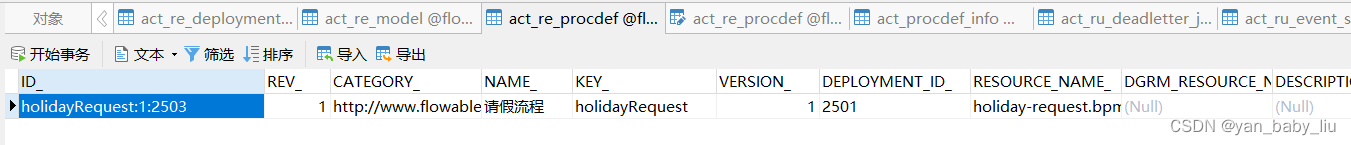

重新部署工作流以后，数据变为

部署id：2501，流程定义：holidayRequest:1:2503 ，流程key:holidayRequest

3. 启动流程实例

 /*** 启动流程实例*/@Testpublic void testRunProcess(){ProcessEngine processEngine = configuration.buildProcessEngine();// 我们需要通过RuntimeService来启动流程实例RuntimeService runtimeService = processEngine.getRuntimeService();// 构建流程变量Map<String,Object> variables = new HashMap<>();variables.put("employee","张三");variables.put("nrOfHolidays",3);variables.put("desciption","工作累了，出去玩玩");// 启动流程实例ProcessInstance holidayRequest = runtimeService.startProcessInstanceByKey("holidayRequest", variables);System.out.println("holidayRequest.getProcessDefinitionId() = " + holidayRequest.getProcessDefinitionId());System.out.println("holidayRequest.getActivityId() = " + holidayRequest.getActivityId());System.out.println("holidayRequest.getId() = " + holidayRequest.getId());}

holidayRequest.getProcessDefinitionId() = holidayRequest:1:2503
holidayRequest.getActivityId() = null
holidayRequest.getId() = 5001

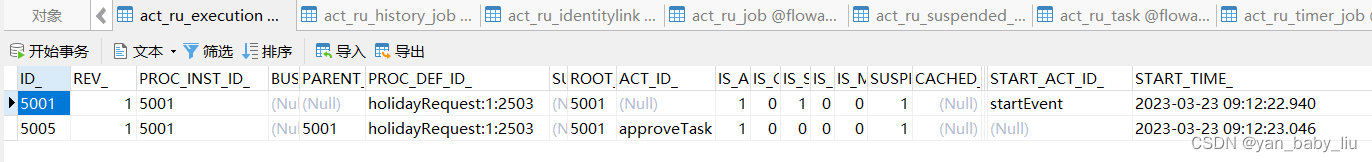

启动流程会在act_ru_execution中生成如下记录:

相关的人员会放在act_ru_identitylink中

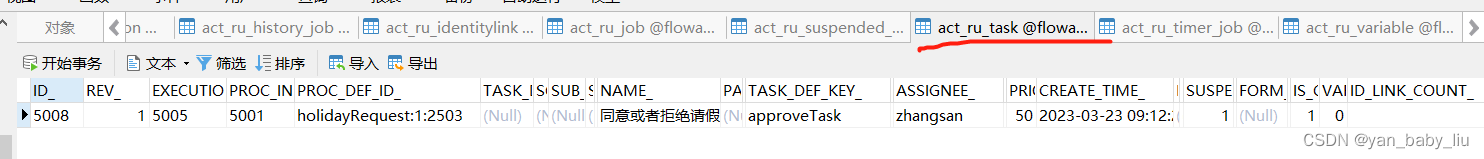

所产生的任务 存在表act_ru_task中

流程变量保存在act_ru_variable中

操作过的历史记录保存于act_hi_actinst

创建任务实例5001，并产生第一个执行实例，5001，保存到act_ru_execution中
该任务实例中绑定变量 5002,5003,5004，绑定了3个变量
启动的执行实例完成后，自动执行到下一个执行实例 ，操作id是:approveTask 保存在act_ru_execution中，执行实例ID是5005

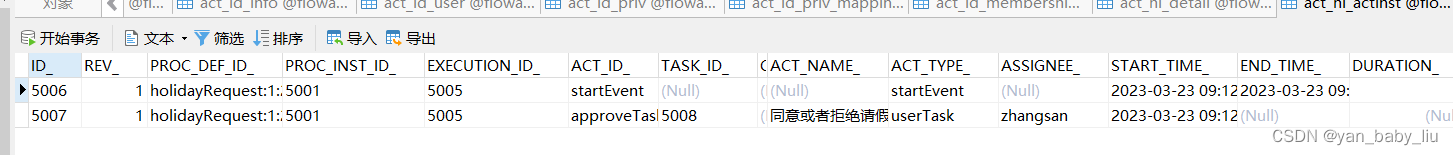

记录历史操作实例到act_hi_actinst中
一个startEvent，一个approveTask，分别ID为：5006,5007
执行实例5005的又会产生任务，5008，保存到act_ru_task中，该任务是由执行实例5005产生，是属于任务实例5001上的

4.查看交给zhangsan的任务

 /*** 测试任务查询*/@Testpublic void testQueryTask(){ProcessEngine processEngine = configuration.buildProcessEngine();TaskService taskService = processEngine.getTaskService();List<Task> list = taskService.createTaskQuery().processDefinitionKey("holidayRequest") // 指定查询的流程编程.taskAssignee("zhangsan") // 查询这个任务的处理人.list();for (Task task : list) {System.out.println("task.getProcessDefinitionId() = " + task.getProcessDefinitionId());System.out.println("task.getName() = " + task.getName());System.out.println("task.getAssignee() = " + task.getAssignee());System.out.println("task.getDescription() = " + task.getDescription());System.out.println("task.getId() = " + task.getId());}}

task.getProcessDefinitionId() = holidayRequest:1:2503
task.getName() = 同意或者拒绝请假
task.getAssignee() = zhangsan
task.getDescription() = null
task.getId() = 5008

部署--->流程定义--->流程定义产生任务实例----->任务实例产生多个执行实例------>每个执行实例产生多个任务

5. 执行任务

以上我们看到如果approved是false，则会走发送邮件的的task任务

  @Testpublic void testCompleteTask(){ProcessEngine processEngine = configuration.buildProcessEngine();TaskService taskService = processEngine.getTaskService();Task task = taskService.createTaskQuery().processDefinitionKey("holidayRequest").taskAssignee("zhangsan").singleResult();// 创建流程变量Map<String,Object> map = new HashMap<>();map.put("approved",false);// 完成任务taskService.complete(task.getId(),map);}

执行后，控制台输出:

不好意思，你的请假申请被拒绝了…安心工作

走到这里，自动任务就结束了，act_run_xxx相关的表会被清空

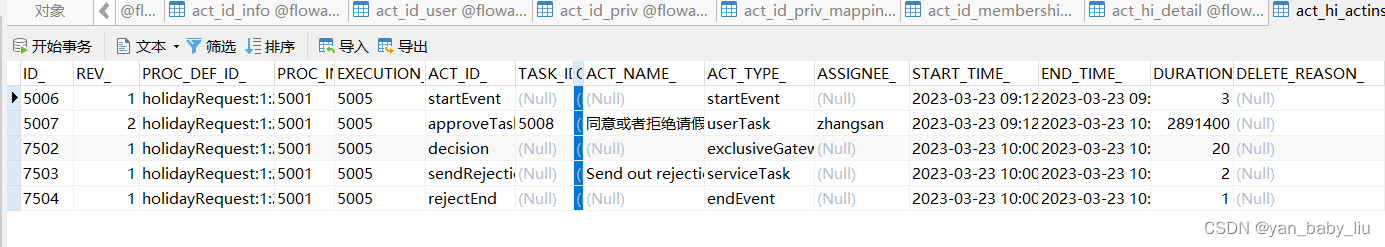

我们可以查看历史记录act_hi_actinst

6. 查看历史

    @Testpublic void testHistory(){ProcessEngine processEngine = configuration.buildProcessEngine();HistoryService historyService = processEngine.getHistoryService();List<HistoricActivityInstance> list = historyService.createHistoricActivityInstanceQuery().processDefinitionId("holidayRequest:1:2503").finished() // 查询的历史记录的状态是已经完成.orderByHistoricActivityInstanceEndTime().asc() // 指定排序的字段和顺序.list();for (HistoricActivityInstance history : list) {System.out.println("流程实例:"+ history.getProcessInstanceId()+"--"+history.getActivityName()+":"+history.getAssignee()+"--"+history.getActivityId()+":" + history.getDurationInMillis()+"毫秒");}}

流程实例:5001–null:null–startEvent:3毫秒
流程实例:5001–同意或者拒绝请假:zhangsan–approveTask:2891400毫秒
流程实例:5001–null:null–decision:20毫秒
流程实例:5001–Send out rejection email:null–sendRejectionMail:2毫秒
流程实例:5001–null:null–rejectEnd:1毫秒
