0.前记

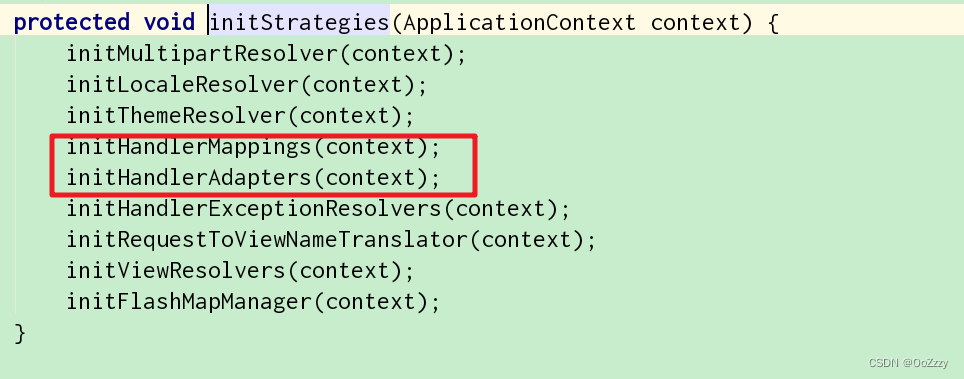

根据之前的文章, 在DispatcherServlet初始化的时候会发生HandlerAdapter的初始化

DispatcherServlet#doDispatch()

    protected void doDispatch(HttpServletRequest request, HttpServletResponse response) throws Exception {HttpServletRequest processedRequest = request;HandlerExecutionChain mappedHandler = null;boolean multipartRequestParsed = false;WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);try {try {ModelAndView mv = null;Object dispatchException = null;try {processedRequest = this.checkMultipart(request);multipartRequestParsed = processedRequest != request;mappedHandler = this.getHandler(processedRequest);if (mappedHandler == null) {this.noHandlerFound(processedRequest, response);return;}HandlerAdapter ha = this.getHandlerAdapter(mappedHandler.getHandler());String method = request.getMethod();boolean isGet = HttpMethod.GET.matches(method);if (isGet || HttpMethod.HEAD.matches(method)) {long lastModified = ha.getLastModified(request, mappedHandler.getHandler());if ((new ServletWebRequest(request, response)).checkNotModified(lastModified) && isGet) {return;}}if (!mappedHandler.applyPreHandle(processedRequest, response)) {return;}mv = ha.handle(processedRequest, response, mappedHandler.getHandler());if (asyncManager.isConcurrentHandlingStarted()) {return;}this.applyDefaultViewName(processedRequest, mv);mappedHandler.applyPostHandle(processedRequest, response, mv);} catch (Exception var20) {dispatchException = var20;} catch (Throwable var21) {dispatchException = new NestedServletException("Handler dispatch failed", var21);}this.processDispatchResult(processedRequest, response, mappedHandler, mv, (Exception)dispatchException);} catch (Exception var22) {this.triggerAfterCompletion(processedRequest, response, mappedHandler, var22);} catch (Throwable var23) {this.triggerAfterCompletion(processedRequest, response, mappedHandler, new NestedServletException("Handler processing failed", var23));}} finally {if (asyncManager.isConcurrentHandlingStarted()) {if (mappedHandler != null) {mappedHandler.applyAfterConcurrentHandlingStarted(processedRequest, response);}} else if (multipartRequestParsed) {this.cleanupMultipart(processedRequest);}}}

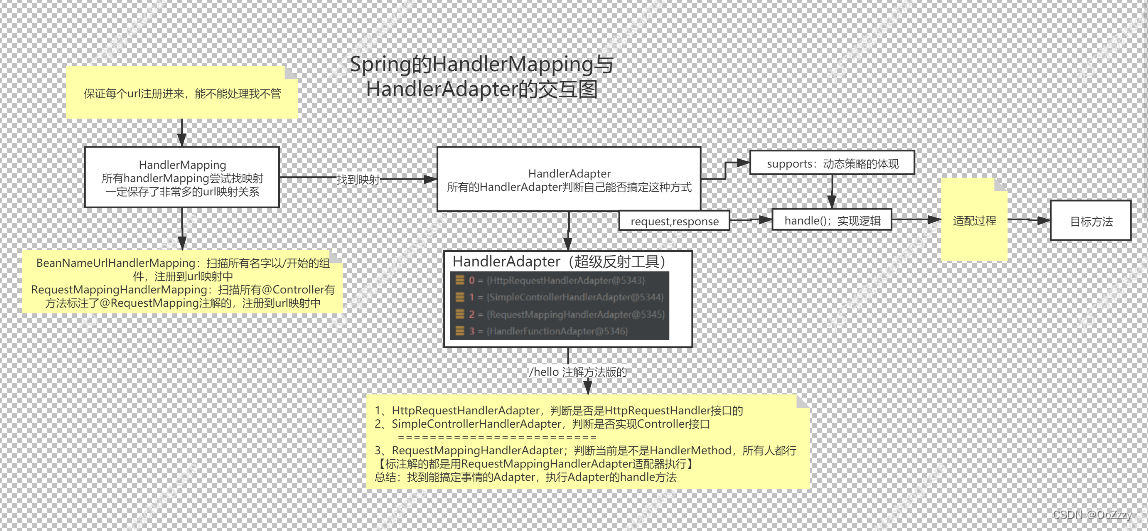

1.HandlerMapping和HandlerAdapter的交互

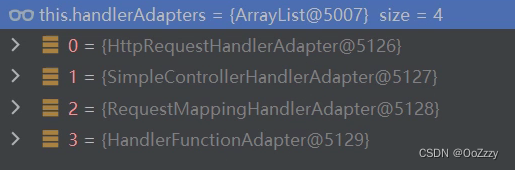

生成的默认的HandlerAdapter

1. HttpRequestHandlerAdapter
2. SimpleControllerHandlerAdapter
3. RequestMappingHandlerAdapter
4. HandlerFunctionAdapter

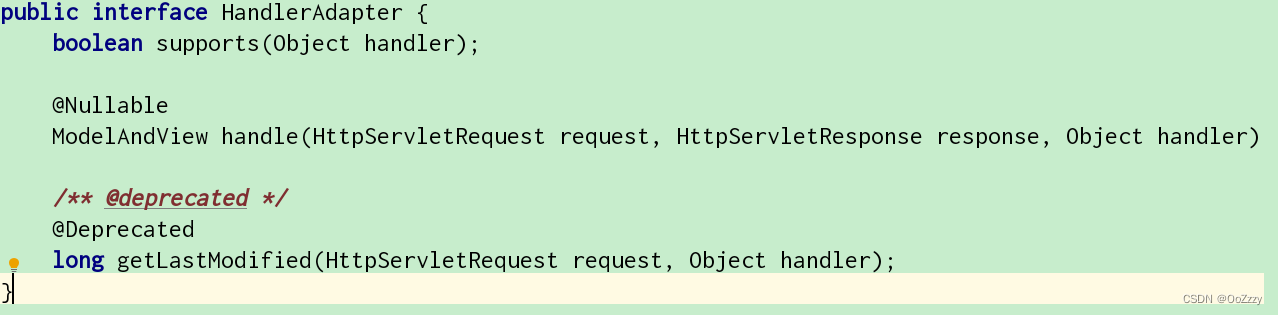

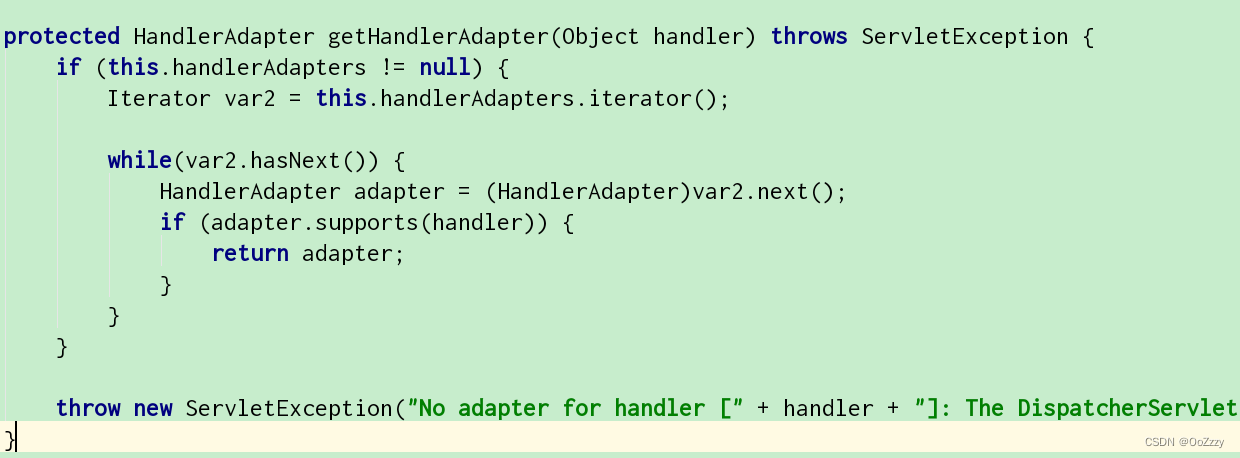

这里通过适配器模式+策略模式匹配对应的HandlerMapping
supports 为策略模式, handler 为适配器模式

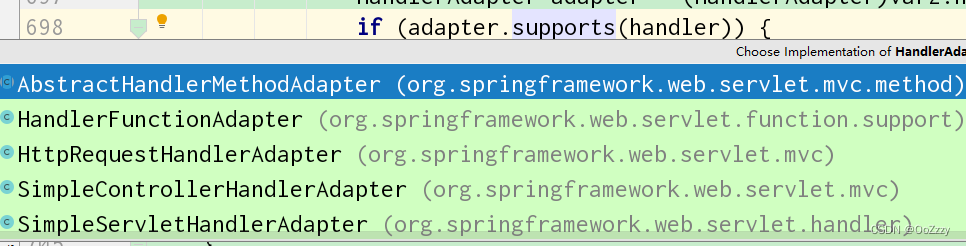

通过策略模式, 不同的HandlerAdapter 进行工作。

• 比如:HttpRequestHandlerAdapter 判断是否是HttpRequestHandler接口

@Controller("/helloReq")
public class Controller02 implements HttpRequestHandler {@Overridepublic void handleRequest(HttpServletRequest request, HttpServletResponse response) throws ServletException, IOException {}
}

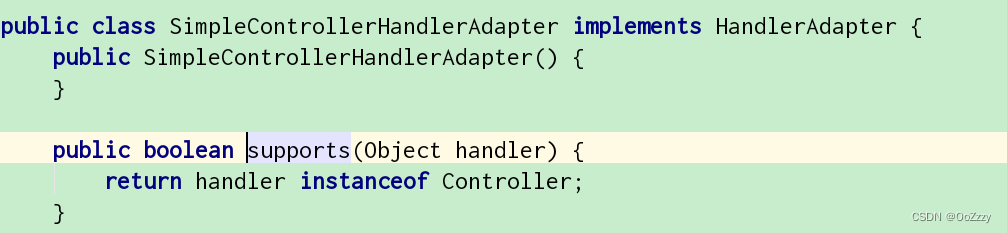

• SimpleControllerHandlerAdapter 判断是否是Controller 接口

@org.springframework.stereotype.Controller("/helloSimple")
public class Controller01 implements Controller {@Overridepublic ModelAndView handleRequest(HttpServletRequest request, HttpServletResponse response) throws Exception {return null;}
}

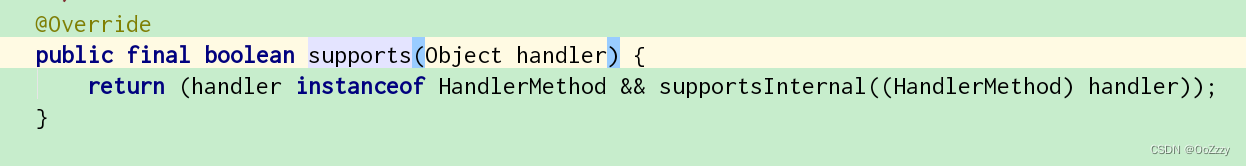

• RequestMappingHandlerAdapter

判断是否符合HandlerMethod接口

这种适配器比较麻烦 需要和HandlerMethod适配, 和参数和返回值和注解的处理关系。

标注解的都是这个适配器处理的

2.RequestMappingHandlerAdapter 如何工作

适配过程: 将request, response, handler连接起来处理, 返回ModelAndView

HandlerAdapter#handler()

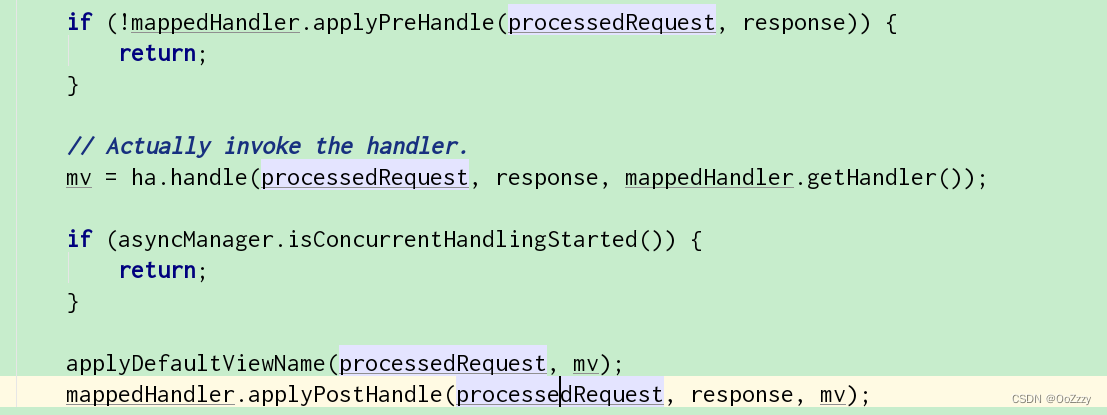

DispatcherServlet#doDipspatch()

• 前置拦截
• 目标方法执行
• 后置拦截

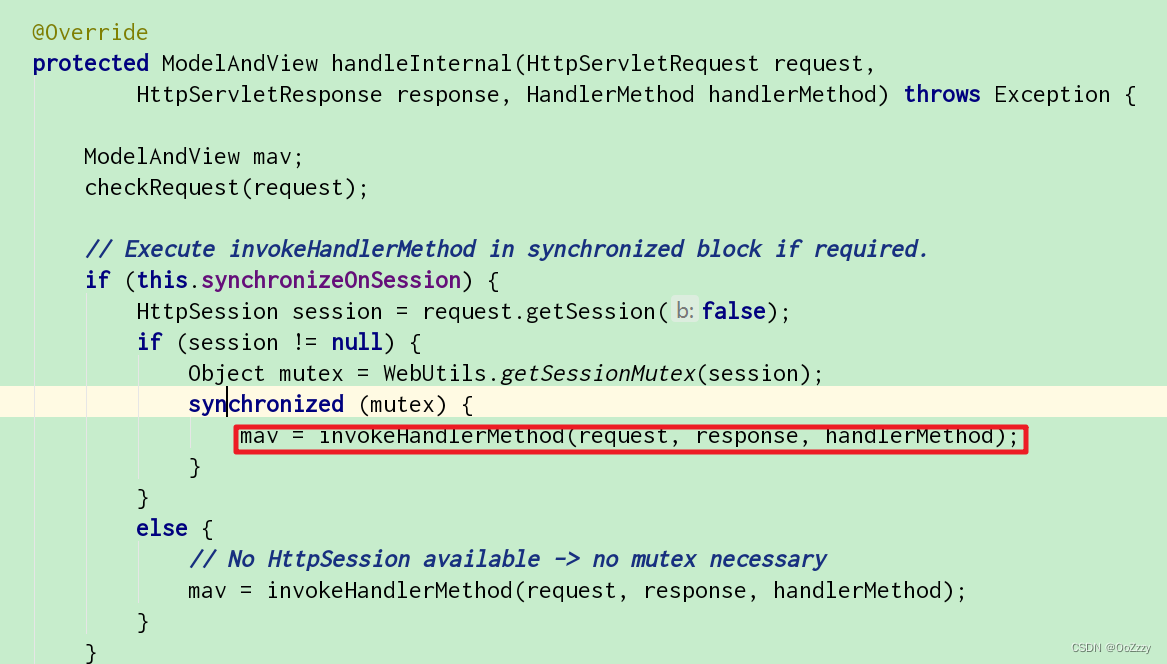

ha.handler -> RequestMappingHandlerAdapter#handleInternal()

	@Overrideprotected ModelAndView handleInternal(HttpServletRequest request,HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {ModelAndView mav;checkRequest(request);// Execute invokeHandlerMethod in synchronized block if required.if (this.synchronizeOnSession) {HttpSession session = request.getSession(false);if (session != null) {Object mutex = WebUtils.getSessionMutex(session);synchronized (mutex) {mav = invokeHandlerMethod(request, response, handlerMethod);}}else {// No HttpSession available -> no mutex necessarymav = invokeHandlerMethod(request, response, handlerMethod);}}else {// No synchronization on session demanded at all...mav = invokeHandlerMethod(request, response, handlerMethod);}if (!response.containsHeader(HEADER_CACHE_CONTROL)) {if (getSessionAttributesHandler(handlerMethod).hasSessionAttributes()) {applyCacheSeconds(response, this.cacheSecondsForSessionAttributeHandlers);}else {prepareResponse(response);}}return mav;}

3.RequestMappingHandlerAdapter 如何执行目标方法的

invokeHandlerMethod(request, response, handlerMethod);

	protected ModelAndView invokeHandlerMethod(HttpServletRequest request,HttpServletResponse response, HandlerMethod handlerMethod) throws Exception {ServletWebRequest webRequest = new ServletWebRequest(request, response);try {WebDataBinderFactory binderFactory = getDataBinderFactory(handlerMethod);ModelFactory modelFactory = getModelFactory(handlerMethod, binderFactory);ServletInvocableHandlerMethod invocableMethod = createInvocableHandlerMethod(handlerMethod);if (this.argumentResolvers != null) {invocableMethod.setHandlerMethodArgumentResolvers(this.argumentResolvers);}if (this.returnValueHandlers != null) {invocableMethod.setHandlerMethodReturnValueHandlers(this.returnValueHandlers);}invocableMethod.setDataBinderFactory(binderFactory);invocableMethod.setParameterNameDiscoverer(this.parameterNameDiscoverer);ModelAndViewContainer mavContainer = new ModelAndViewContainer();mavContainer.addAllAttributes(RequestContextUtils.getInputFlashMap(request));modelFactory.initModel(webRequest, mavContainer, invocableMethod);mavContainer.setIgnoreDefaultModelOnRedirect(this.ignoreDefaultModelOnRedirect);AsyncWebRequest asyncWebRequest = WebAsyncUtils.createAsyncWebRequest(request, response);asyncWebRequest.setTimeout(this.asyncRequestTimeout);WebAsyncManager asyncManager = WebAsyncUtils.getAsyncManager(request);asyncManager.setTaskExecutor(this.taskExecutor);asyncManager.setAsyncWebRequest(asyncWebRequest);asyncManager.registerCallableInterceptors(this.callableInterceptors);asyncManager.registerDeferredResultInterceptors(this.deferredResultInterceptors);if (asyncManager.hasConcurrentResult()) {Object result = asyncManager.getConcurrentResult();mavContainer = (ModelAndViewContainer) asyncManager.getConcurrentResultContext()[0];asyncManager.clearConcurrentResult();LogFormatUtils.traceDebug(logger, traceOn -> {String formatted = LogFormatUtils.formatValue(result, !traceOn);return "Resume with async result [" + formatted + "]";});invocableMethod = invocableMethod.wrapConcurrentResult(result);}invocableMethod.invokeAndHandle(webRequest, mavContainer);if (asyncManager.isConcurrentHandlingStarted()) {return null;}return getModelAndView(mavContainer, modelFactory, webRequest);}finally {webRequest.requestCompleted();}}

1. 建立一个空的DataBinder工厂, 建立一个存放处理器方法和DataBinder工厂的模型工厂
   这里注意一些, Model 相当于数据, View相当于视图
2. 封装HandlerMethod 为ServletInvocableHandlerMethod, 装饰器模式, 提供了参数解析器和返回值解析器
3. ModelAndViewContainer是模型和视图的容器, 把处理过程中产生和模型与视图有关的数据先放这里
   在请求过程中共享的数据的ModelAndView
4. invocableMethod.invokeAndHandle(webRequest, mavContainer);执行目标方法, 数据存放在mavContainer
5. getModelAndView(mavContainer, modelFactory, webRequest); 提取到ModelAndView 数据并返回。可以去View视图展示
