8.5 排序模型进阶-Wide&Deep

学习目标

• 目标
  • 无
• 应用
  • 无

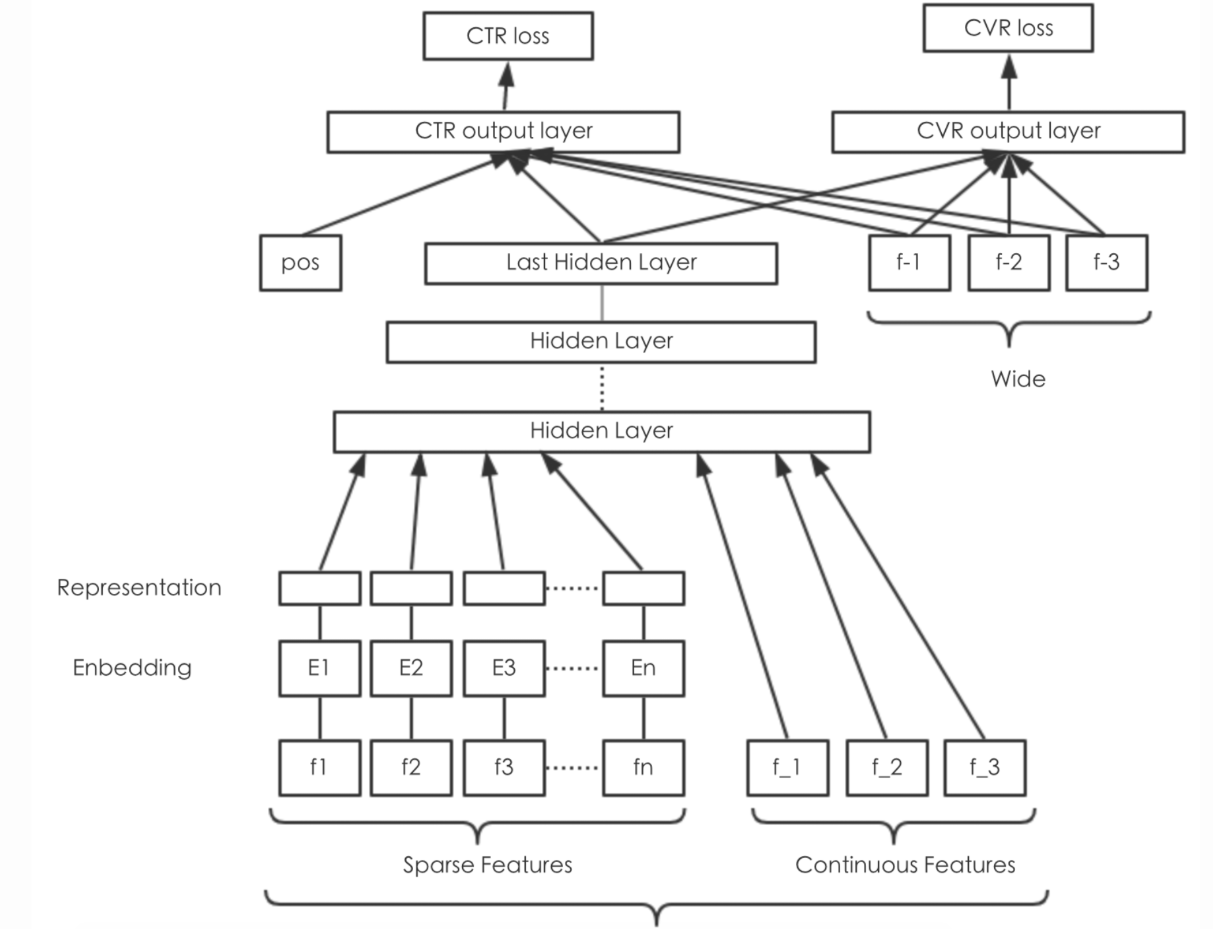

8.5.1 wide&deep

• Wide部分的输入特征：
  • 离散特征
  • 离散特征之间做组合
    • 不输入有连续值特征的，在W&D的paper里面是这样使用的。

• Deep部分的输入特征：

  • raw input+embeding处理
  • 对非连续值之外的特征做embedding处理，这里都是策略特征，就是乘以个embedding-matrix。在TensorFlow里面的接口是：tf.feature_column.embedding_column，默认trainable=True.
  • 对连续值特征的处理是：将其按照累积分布函数P(X≤x)，压缩至[0,1]内。

    注：训练：notice: Wide部分用FTRL来训练；Deep部分用AdaGrad来训练。

• Wide&Deep在TensorFlow里面的API接口为：tf.estimator.DNNLinearCombinedClassifier

  • estimator = tf.estimator.DNNLinearCombinedClassifier()
    • model_dir="",
    • linear_feature_columns=wide_columns,
    • dnn_feature_columns=deep_columns
    • dnn_hidden_units=[]):dnn层的网络结构

tf.estimator传入参数原则

• LinearClassifier 和 LinearRegressor：接受所有类型的特征列。
• DNNClassifier 和 DNNRegressor：只接受密集列。其他类型的列必须封装在 indicator_column 或 embedding_column 中。
• DNNLinearCombinedClassifier 和 DNNLinearCombinedRegressor：
  • linear_feature_columns 参数接受任何类型的特征列。
  • dnn_feature_columns 参数只接受密集列。

代码：

import tensorflow as tfclass WDL(object):"""wide&deep模型"""def __init__(self):pass@staticmethoddef read_ctr_records():# 定义转换函数,输入时序列化的def parse_tfrecords_function(example_proto):features = {"label": tf.FixedLenFeature([], tf.int64),"feature": tf.FixedLenFeature([], tf.string)}parsed_features = tf.parse_single_example(example_proto, features)feature = tf.decode_raw(parsed_features['feature'], tf.float64)feature = tf.reshape(tf.cast(feature, tf.float32), [1, 121])# 特征顺序 1 channel_id,  100 article_vector, 10 user_weights, 10 article_weights# 1 channel_id类别型特征， 100维文章向量求平均值当连续特征，10维用户权重求平均值当连续特征channel_id = tf.cast(tf.slice(feature, [0, 0], [1, 1]), tf.int32)vector = tf.reduce_sum(tf.slice(feature, [0, 1], [1, 100]), axis=1)user_weights = tf.reduce_sum(tf.slice(feature, [0, 101], [1, 10]), axis=1)article_weights = tf.reduce_sum(tf.slice(feature, [0, 111], [1, 10]), axis=1)label = tf.cast(parsed_features['label'], tf.float32)# 构造字典 名称-tensorFEATURE_COLUMNS = ['channel_id', 'vector', 'user_weigths', 'article_weights']tensor_list = [channel_id, vector, user_weights, article_weights]feature_dict = dict(zip(FEATURE_COLUMNS, tensor_list))return feature_dict, labeldataset = tf.data.TFRecordDataset(["./train_ctr_201905.tfrecords"])dataset = dataset.map(parse_tfrecords_function)dataset = dataset.batch(64)dataset = dataset.repeat()return datasetdef build_estimator(self):"""建立模型:param dataset::return:"""# 离散分类article_id = tf.feature_column.categorical_column_with_identity('channel_id', num_buckets=25)# 连续类型vector = tf.feature_column.numeric_column('vector')user_weigths = tf.feature_column.numeric_column('user_weigths')article_weights = tf.feature_column.numeric_column('article_weights')wide_columns = [article_id]# embedding_column用来表示类别型的变量deep_columns = [tf.feature_column.embedding_column(article_id, dimension=25),vector, user_weigths, article_weights]estimator = tf.estimator.DNNLinearCombinedClassifier(model_dir="./ckpt/wide_and_deep",linear_feature_columns=wide_columns,dnn_feature_columns=deep_columns,dnn_hidden_units=[1024, 512, 256])return estimatorif __name__ == '__main__':wdl = WDL()estimator = wdl.build_estimator()estimator.train(input_fn=wdl.read_ctr_records)eval_result = estimator.evaluate(input_fn=wdl.read_ctr_records)print(eval_result)

8.5.2 三个版本特征数据处理效果对比

特征不同的处理效果	baseline	1离三特征、文章向量平均值、用户权重平均值、文章权重平均值	1离散特征、1个111连续特征	1离散特征、100个连续文章向量、10文章权重、10用户权重
accuracy	0.9051438053097345	0.9046435	0.9046435	0.9046435
auc	0.719274521004087	0.57850575	0.5896939	0.62383443

效果对比总结：

• 头条数据离散数据数量过少，所以基础模型就已能够解决问题
• 如果随着离散或者连续特征的增多，使用WDL模型会带来一定的准确率或者AUC的提高

三个版本特征处理数据函数以及构建模型

• 第一个版本：

@staticmethoddef read_ctr_records_v1():# 定义转换函数,输入时序列化的def parse_tfrecords_function(example_proto):features = {"label": tf.FixedLenFeature([], tf.int64),"feature": tf.FixedLenFeature([], tf.string)}parsed_features = tf.parse_single_example(example_proto, features)feature = tf.decode_raw(parsed_features['feature'], tf.float64)feature = tf.reshape(tf.cast(feature, tf.float32), [1, 121])# 特征顺序 1 channel_id,  100 article_vector, 10 user_weights, 10 article_weights# 1 channel_id类别型特征， 100维文章向量求平均值当连续特征，10维用户权重求平均值当连续特征channel_id = tf.cast(tf.slice(feature, [0, 0], [1, 1]), tf.int32)vector = tf.reduce_mean(tf.slice(feature, [0, 1], [1, 100]), axis=1)user_weights = tf.reduce_mean(tf.slice(feature, [0, 101], [1, 10]), axis=1)article_weights = tf.reduce_mean(tf.slice(feature, [0, 111], [1, 10]), axis=1)label = tf.cast(parsed_features['label'], tf.float32)# 构造字典 名称-tensorFEATURE_COLUMNS = ['channel_id', 'vector', 'user_weights', 'article_weights']tensor_list = [channel_id, vector, user_weights, article_weights]feature_dict = dict(zip(FEATURE_COLUMNS, tensor_list))return feature_dict, labeldataset = tf.data.TFRecordDataset(["./ctr_train_20190706.tfrecords"])dataset = dataset.map(parse_tfrecords_function)dataset = dataset.batch(64)dataset = dataset.repeat(100)return datasetdef build_estimator(self):"""构建特征列输入到模型中:return:"""# 指定列特征channel_id = tf.feature_column.categorical_column_with_identity('channel_id', num_buckets=25)vector = tf.feature_column.numeric_column('vector')user_weights = tf.feature_column.numeric_column('user_weights')article_weights = tf.feature_column.numeric_column('article_weights')# wide侧wide_columns = [channel_id]# deep侧deep_columns = [tf.feature_column.embedding_column(channel_id, dimension=25),vector,user_weights,article_weights]# 构造模型estimator = tf.estimator.DNNLinearCombinedClassifier(model_dir="./tmp/ckpt/wide_and_deep",linear_feature_columns=wide_columns,dnn_feature_columns=deep_columns,dnn_hidden_units=[256, 128, 64])return estimator

• 第二个版本：

@staticmethoddef read_ctr_records_v2():# 定义转换函数,输入时序列化的def parse_tfrecords_function(example_proto):features = {"label": tf.FixedLenFeature([], tf.int64),"feature": tf.FixedLenFeature([], tf.string)}parsed_features = tf.parse_single_example(example_proto, features)feature = tf.decode_raw(parsed_features['feature'], tf.float64)feature = tf.reshape(tf.cast(feature, tf.float32), [1, 121])channel_id = tf.cast(tf.slice(feature, [0, 0], [1, 1]), tf.int32)label = tf.cast(parsed_features['label'], tf.float32)# 构造字典 名称-tensorFEATURE_COLUMNS = ['channel_id', 'feature']tensor_list = [channel_id, feature]feature_dict = dict(zip(FEATURE_COLUMNS, tensor_list))return feature_dict, labeldataset = tf.data.TFRecordDataset(["./ctr_train_20190706.tfrecords"])dataset = dataset.map(parse_tfrecords_function)dataset = dataset.batch(64)dataset = dataset.repeat(100)return datasetdef build_estimator_v2(self):"""构建特征列输入到模型中:return:"""# 指定列特征channel_id = tf.feature_column.categorical_column_with_identity('channel_id', num_buckets=25)feature = tf.feature_column.numeric_column('feature', shape=[1, 121])# wide侧wide_columns = [channel_id]# deep侧deep_columns = [tf.feature_column.embedding_column(channel_id, dimension=25),feature]# 构造模型estimator = tf.estimator.DNNLinearCombinedClassifier(model_dir="./tmp/ckpt/wide_and_deep_v2",linear_feature_columns=wide_columns,dnn_feature_columns=deep_columns,dnn_hidden_units=[256, 128, 64])return estimator

• 第三个版本

@staticmethoddef read_ctr_records_v3():# 定义转换函数,输入时序列化的def parse_tfrecords_function(example_proto):features = {"label": tf.FixedLenFeature([], tf.int64),"feature": tf.FixedLenFeature([], tf.string)}parsed_features = tf.parse_single_example(example_proto, features)feature = tf.decode_raw(parsed_features['feature'], tf.float64)feature = tf.reshape(tf.cast(feature, tf.float32), [1, 121])channel_id = tf.cast(tf.slice(feature, [0, 0], [1, 1]), tf.int32)vector = tf.slice(feature, [0, 1], [1, 100])user_weights = tf.slice(feature, [0, 101], [1, 10])article_weights = tf.slice(feature, [0, 111], [1, 10])label = tf.cast(parsed_features['label'], tf.float32)# 构造字典 名称-tensorFEATURE_COLUMNS = ['channel_id', 'vector', 'user_weights', 'article_weights']tensor_list = [channel_id, vector, user_weights, article_weights]feature_dict = dict(zip(FEATURE_COLUMNS, tensor_list))return feature_dict, labeldataset = tf.data.TFRecordDataset(["./ctr_train_20190706.tfrecords"])dataset = dataset.map(parse_tfrecords_function)dataset = dataset.batch(64)dataset = dataset.repeat(100)return datasetdef build_estimator_v3(self):"""构建特征列输入到模型中:return:"""# 指定列特征channel_id = tf.feature_column.categorical_column_with_identity('channel_id', num_buckets=25)vector = tf.feature_column.numeric_column('vector', shape=[1, 100])user_weights = tf.feature_column.numeric_column('user_weights', shape=[1, 10])article_weights = tf.feature_column.numeric_column('article_weights', shape=[1, 10])# wide侧wide_columns = [channel_id]# deep侧deep_columns = [tf.feature_column.embedding_column(channel_id, dimension=25),vector,user_weights,article_weights]# 构造模型estimator = tf.estimator.DNNLinearCombinedClassifier(model_dir="./tmp/ckpt/wide_and_deep_v3",linear_feature_columns=wide_columns,dnn_feature_columns=deep_columns,dnn_hidden_units=[256, 128, 64])return estimator
