Android接收RabbitMQ消息。

参考:https://blog.csdn.net/qq_36576738/article/details/83754621

我这android这边就不实现发布消息功能。因为我是在服务端那边推送消息。

开发工具android studio。

1》建好项目后添加包（目前最新的是5.7.0）：

dependencies {implementation 'com.rabbitmq:amqp-client:5.7.0'
}

2》在主页面上加个TextView，用来显示服务端推送的消息。

<?xml version="1.0" encoding="utf-8"?>
<android.support.constraint.ConstraintLayout xmlns:android="http://schemas.android.com/apk/res/android"xmlns:app="http://schemas.android.com/apk/res-auto"xmlns:tools="http://schemas.android.com/tools"android:layout_width="match_parent"android:layout_height="match_parent"tools:context=".MainActivity"><TextViewandroid:layout_width="wrap_content"android:layout_height="wrap_content"android:id="@+id/txtrabbitmqt"android:text="rabbitmq"app:layout_constraintBottom_toBottomOf="parent"app:layout_constraintLeft_toLeftOf="parent"app:layout_constraintRight_toRightOf="parent"app:layout_constraintTop_toTopOf="parent" /></android.support.constraint.ConstraintLayout>

3》连接服务器上的RabbitMq:

   /*** 连接设置*/private void setupConnectionFactory() {factory =  new ConnectionFactory();factory.setHost("服务器ip");factory.setPort(rabbitmq端口，默认5672);factory.setUsername("自己连接rabbitmq账号");factory.setPassword("自己连接rabbitmq的密码");}

4》编写订阅代码：

    /*** 收消息（从发布者那边订阅消息）*/private void basicConsume(final Handler handler){try {//连接Connection connection = factory.newConnection() ;//通道final Channel channel = connection.createChannel() ;//实现Consumer的最简单方法是将便捷类DefaultConsumer子类化。可以在basicConsume 调用上传递此子类的对象以设置订阅：channel.basicConsume("myqueue" , false ,  new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {super.handleDelivery(consumerTag, envelope, properties, body);String msg = new String(body) ;long deliveryTag = envelope.getDeliveryTag() ;channel.basicAck(deliveryTag , false);//从message池中获取msg对象更高效Message uimsg = handler.obtainMessage();Bundle bundle = new Bundle();bundle.putString("msg", msg);uimsg.setData(bundle);handler.sendMessage(uimsg);}});} catch (IOException e) {e.printStackTrace();} catch (TimeoutException e) {e.printStackTrace();}}

整个demo代码：

package com.ldb.longdb.rabbitmqapp;import android.os.Bundle;
import android.os.Handler;
import android.os.Message;
import android.support.v7.app.AppCompatActivity;
import android.util.Log;
import android.widget.TextView;import com.rabbitmq.client.AMQP;
import com.rabbitmq.client.Channel;
import com.rabbitmq.client.Connection;
import com.rabbitmq.client.ConnectionFactory;
import com.rabbitmq.client.DefaultConsumer;
import com.rabbitmq.client.Envelope;import java.io.IOException;
import java.util.concurrent.TimeoutException;public class MainActivity extends AppCompatActivity {ConnectionFactory factory;@Overrideprotected void onCreate(Bundle savedInstanceState) {super.onCreate(savedInstanceState);setContentView(R.layout.activity_main);//连接设置setupConnectionFactory();//用于从线程中获取数据，更新uifinal Handler incomingMessageHandler = new Handler() {@Overridepublic void handleMessage(Message msg) {String message = msg.getData().getString("msg");TextView tv = (TextView) findViewById(R.id.txtrabbitmqt);tv.append(message + '\n');Log.i("test", "msg:" + message);}};//开启消费者线程//subscribe(incomingMessageHandler);new Thread(new Runnable() {@Overridepublic void run() {basicConsume(incomingMessageHandler);}}).start();}/*** 连接设置*/private void setupConnectionFactory() {factory =  new ConnectionFactory();factory.setHost(服务器ip);factory.setPort(5672);factory.setUsername("longdb");factory.setPassword("***");}/*** 收消息（从发布者那边订阅消息）*/private void basicConsume(final Handler handler){try {//连接Connection connection = factory.newConnection() ;//通道final Channel channel = connection.createChannel() ;//实现Consumer的最简单方法是将便捷类DefaultConsumer子类化。可以在basicConsume 调用上传递此子类的对象以设置订阅：channel.basicConsume("myqueue" , false ,  new DefaultConsumer(channel){@Overridepublic void handleDelivery(String consumerTag, Envelope envelope, AMQP.BasicProperties properties, byte[] body) throws IOException {super.handleDelivery(consumerTag, envelope, properties, body);String msg = new String(body) ;long deliveryTag = envelope.getDeliveryTag() ;channel.basicAck(deliveryTag , false);//从message池中获取msg对象更高效Message uimsg = handler.obtainMessage();Bundle bundle = new Bundle();bundle.putString("msg", msg);uimsg.setData(bundle);handler.sendMessage(uimsg);}});} catch (IOException e) {e.printStackTrace();} catch (TimeoutException e) {e.printStackTrace();}}
}

我是直接打包，然后自己手机安装测试。

测试步骤：1》app打开

                  2》springcloud服务（springcloud怎样发布消息，请看上一篇）运行，发送请求。

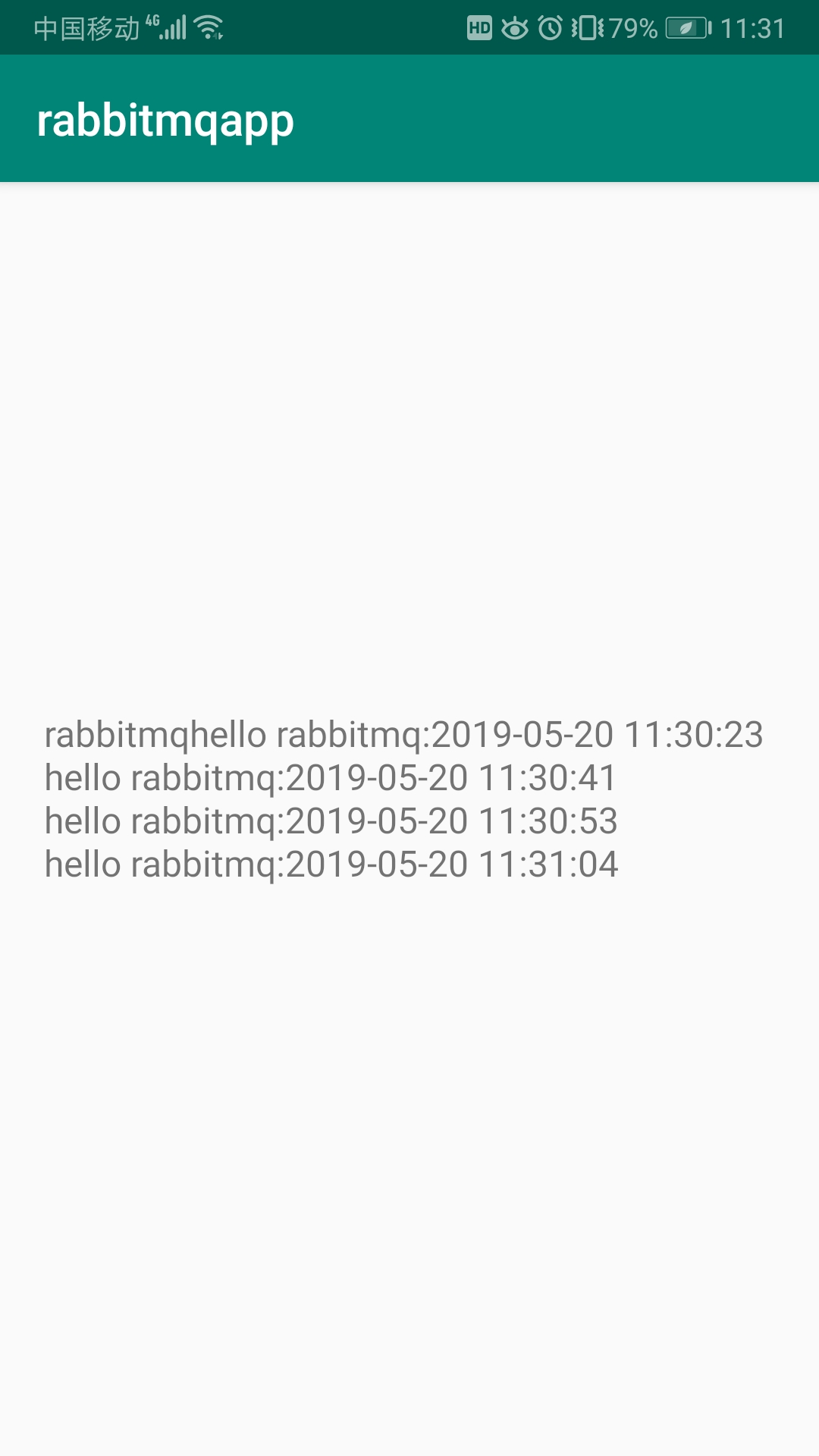

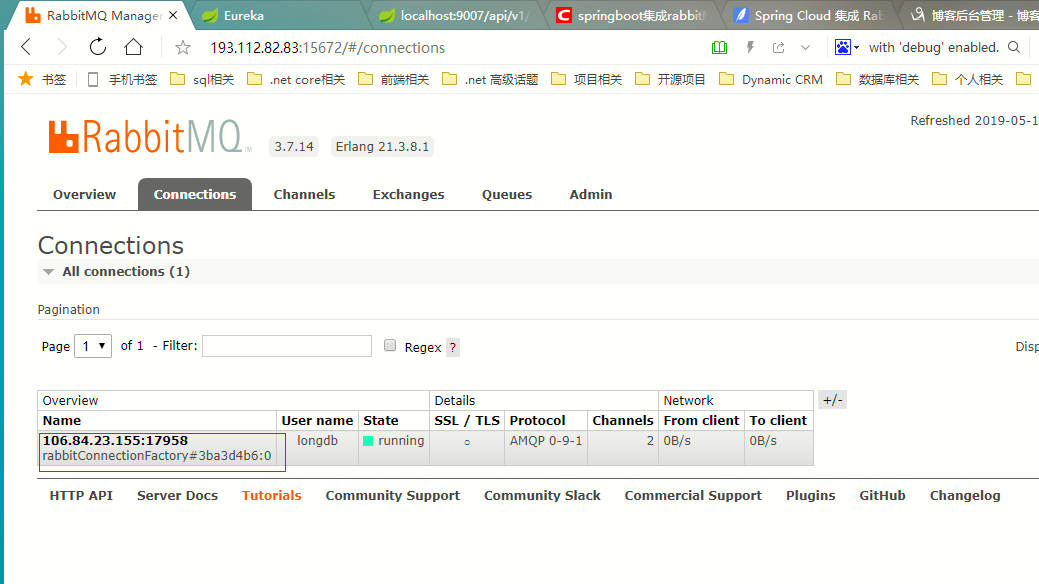

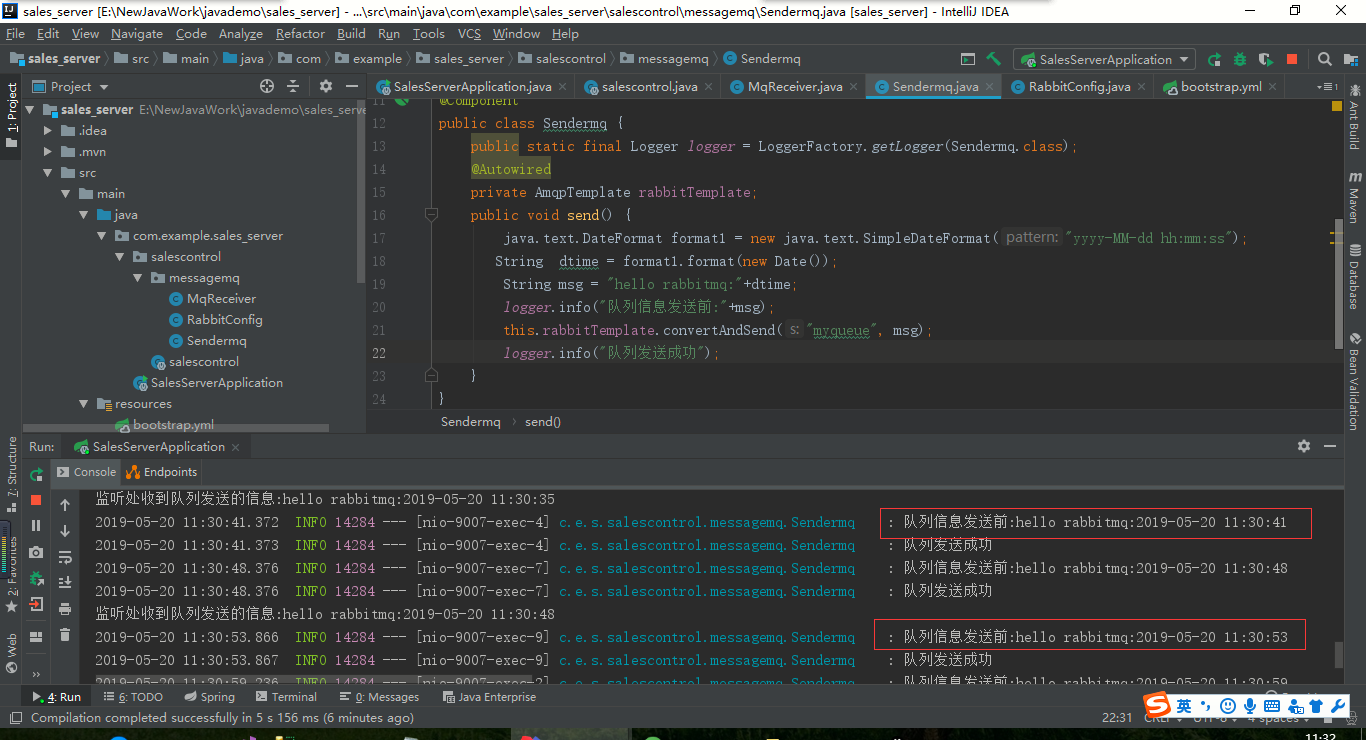

测试截图：
